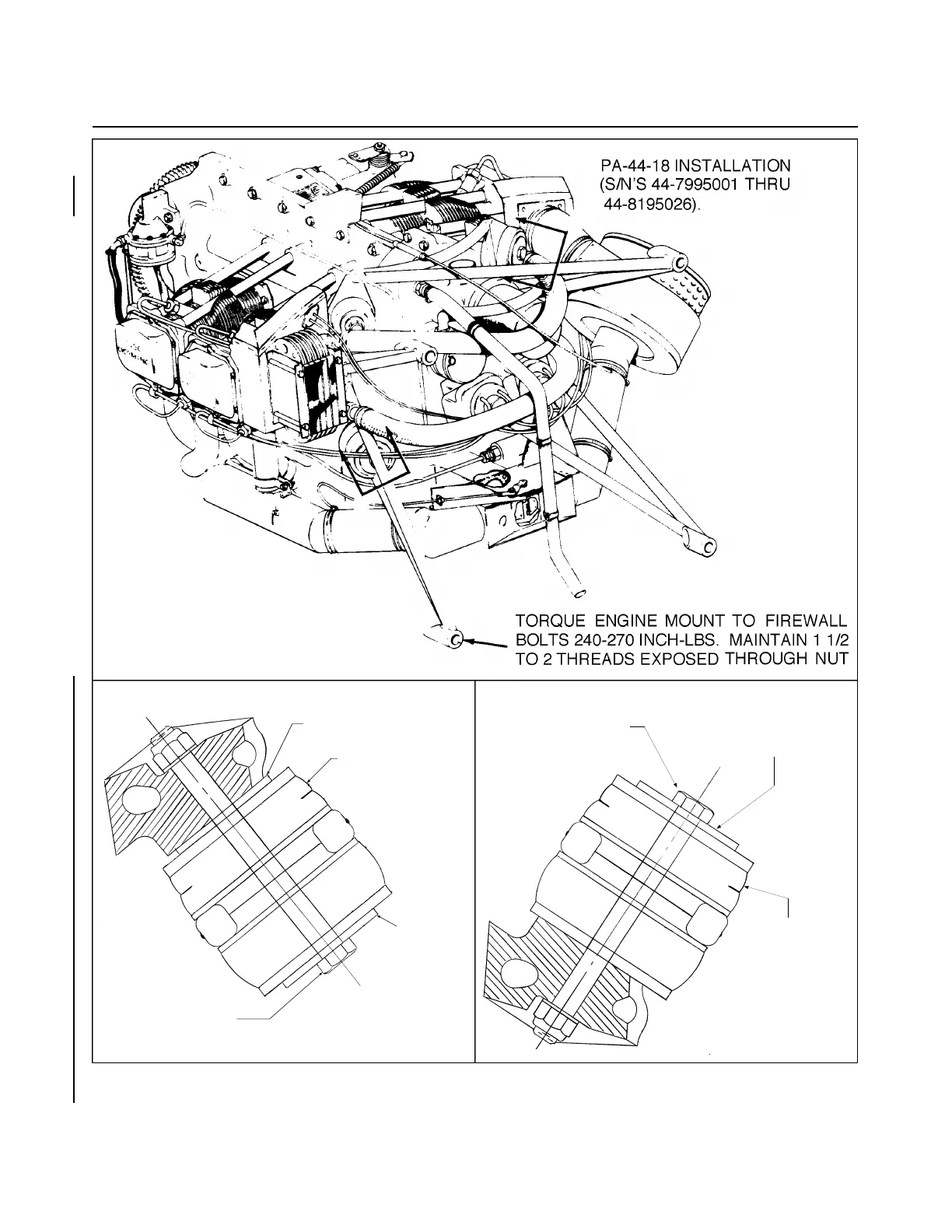

Figure 71-1. Engine and Shock Mount Installation (Sheet 1 of 3)
(S/n’s 44-7995001 thru 44-8195026)
PIPER AIRCRAFT
PA - 4 4 - 1 8 0 / 1 8 0 T
AIRPLANE MAINTENANCE MANUAL
71-03-00
Page 71-10
Revised: June 20, 1995
3E8
B
B
A
A
WASHER SUPPLIED
WITH KIT
J9613-40 KIT
(PURCHASED
FROM LORD)
85012-101
WASHER
AN7-47A BOLT
AN960-716 WASHER
MS20365-720C NUT
2 EACH REQUIRED
TORQUE TO
450 - 500 IN. LBS.
LOWER MOUNT
VIEW A-A
AN7-47A BOLT
AN960-716 WASHER
MS20365-720C NUT
2 EACH REQUIRED
TORQUE TO
450 - 500 IN. LBS.
WASHER SUPPLIED
WITH KIT
J9613-40 KIT
(PURCHASED
FROM LORD)
UPPER MOUNT
VIEW B-B
