ENGLISH
IMPORTANT: It is advised to read each step entirely before starting assembly on instructions. Do not tighten screws
completely until all screws for that step have been installed.

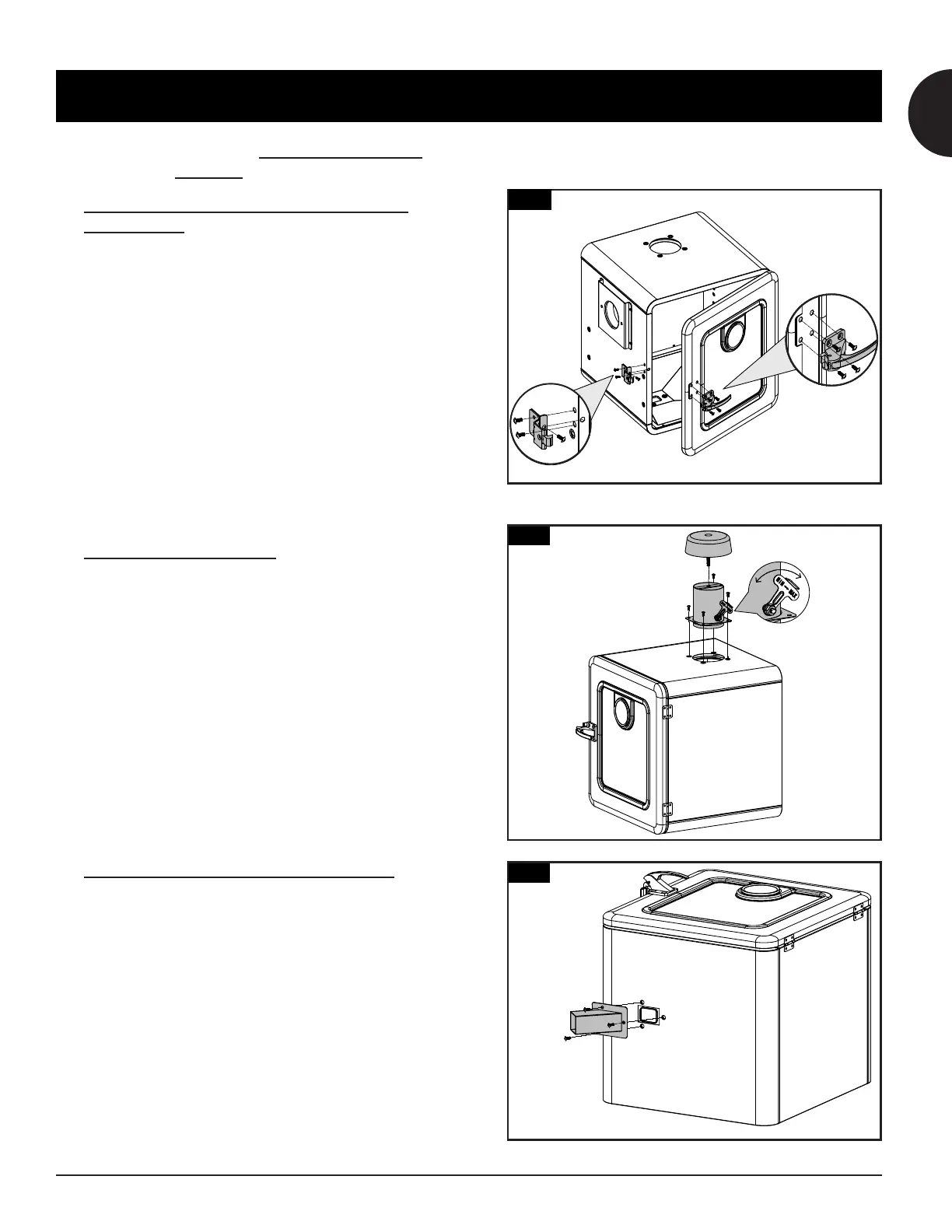

1. ,
Parts Required:
1 x Main Cabinet
(#3)
1 x Cabinet Door Handle
(#6)
1 x Cabinet Door Latch
(#5)
7 x Screw
(#E)
Installation:
• Place a piece of cardboard on the floor to prevent
scratching the unit and parts during assembly.
• Mount the Cabinet Door Handle onto the front side of
the Cabinet Door using four screws.
• Mount the Cabinet Door Latch onto the Exterior side
of the Main Cabinet using three screws.
2.
Parts Required:
1 x Chimney Cap
(#1)
1 x Chimney Stack
(#2)
4 x Screw
(#E)
Installation:
• Locate the chimney opening on the top of the Main
Cabinet. From the outside, secure the Chimney to the
top panel using four screws. The screw will fasten to
the self-clinching nut on the inside of the cabinet.
Next, twist the Chimney Cap onto the top.
NOTE: Adjust the damper handle to affect the airflow in
the main chimney.
3.
Parts Required:
1 x Grease Exhaust Tube
(#7)
3 x Screw
(#E)
Installation:
• Mount the Grease Exhaust Tube onto the bottom of
the Main Cabinet using three screws, from the outside.
2
1
2
3
7
6
3
5
1
3
6
5
