Pit Boss PB340 - ASSEMBLY INSTRUCTIONS; Parts List

Part No. Description Diagram Qty
Page 6
When you open your smoker/grill, please ensure you have and can identify all the following parts:

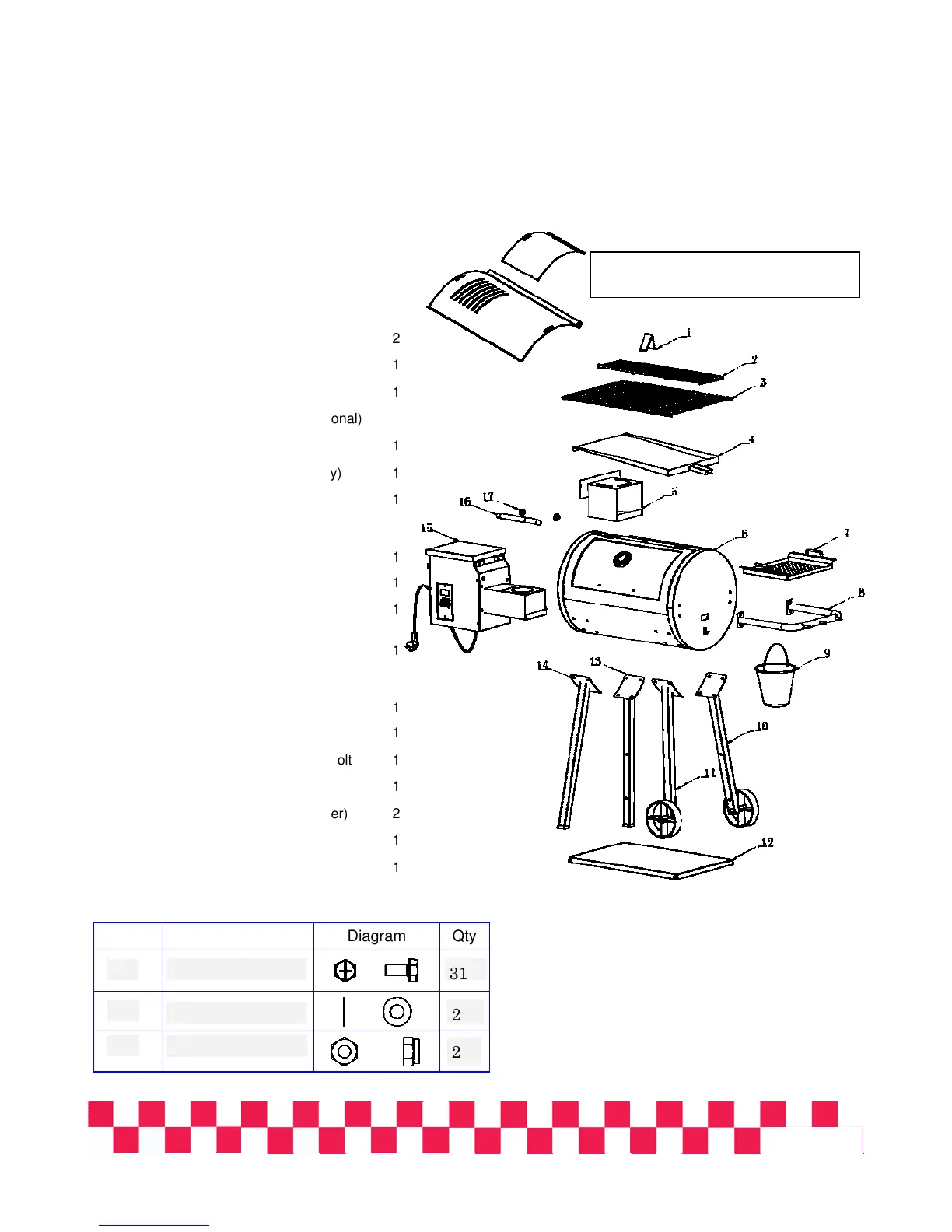

NOTE: Numbers following part names throughout this manual refer to the component diagram below.
Item Part# Description QTY
1. xxxx Lid Stopper 1
2. Upper Cooking Rack 1
3. Cooking Grids 2
4. Grease Tray / Spout 1
5. Flame Diffuser 1
6. Main Barrel 1
7. Serving Tray (440D only) 1
8. Side Handle
340—black
440D—Stainless
1
9. 74400 Grease Bucket 1
10. Rear Leg with Wheel 1
11. Front Leg with Wheel
w/ bottle opener (440D)
1
12. Bottom Shelf
340—Open Grid
440D—Solid
1
13. Rear Leg 1
14. Front Leg 1
15. Hopper Assembly 110 Volt 1
16. Lid Handle 1
17. Bezel (decorative washer) 2
Dome Thermometer 1
Owners Manual 1
2pc Flame Broiler (optional)
Hardware List— #
Parts List
Screw 1/4”- 20* 1/2”
31
Washer 12.5 x 24
Lock Nut 7/16” - 20
2
2
A
B
C
Section One: ASSEMBLY INSTRUCTIONS
Note: some models may include the
“2 Pc Flame Broiler” and not Parts 3 & 4
