7.4 Dual Mixer / Preamp Input Jacks:
[Mixer Channel 1 Input Jack] Channel 1 input jack. The [Mixer Channel 1 Input Jack] is
normaled to the oscillator 1 output. Plugging a patch cable into the [Mixer Channel 1 Input
Jack] will remove oscillator 1 from the signal path.
[Mixer Channel 2 Input Jack] Channel 2 input jack. The [Mixer Channel 2 Input Jack] is
normaled to the oscillator 2 output. Plugging a patch cable into the [Mixer Channel 2 Input
Jack] will remove oscillator 2 from the signal path.
[Mixer Channel 3 Input Jack] Channel 3 input jack. The [Mixer Channel 3 Input Jack] is
normaled to the oscillator 3 output. Plugging a patch cable into the [Mixer Channel 3 Input
Jack] will remove oscillator 3 from the signal path.
[Mixer Channel 4 Input Jack] Channel 4 input jack. The [Mixer Channel 4 Input Jack] is
normaled to the noise output. Plugging a patch cable into the [Mixer Channel 4 Input Jack]
will remove the noise from the signal path.
[Preamp Input Jack] Preamp audio input jack.
7.5 Dual Mixer / Preamp Output Jacks:
[Mixer 1+2 Output Jack] Mix of channels 1 and 2 output jack. The [Mixer 1+2 Output Jack] is
normaled to the mixer output. Plugging a patch cable into the [Mixer 1+2 Output Jack] will
remove channel 1 and 2 from the mixer output.
[Mixer Output Jack] Main mixer output jack. The [Preamp Output Jack] is normaled to the mixer
output.
[Preamp Output Jack] Preamp output jack. The [Preamp Output Jack] is normaled to the mixer
output. Plugging a patch cable into the [Preamp Output Jack] will remove the preamp from
the mixer output.

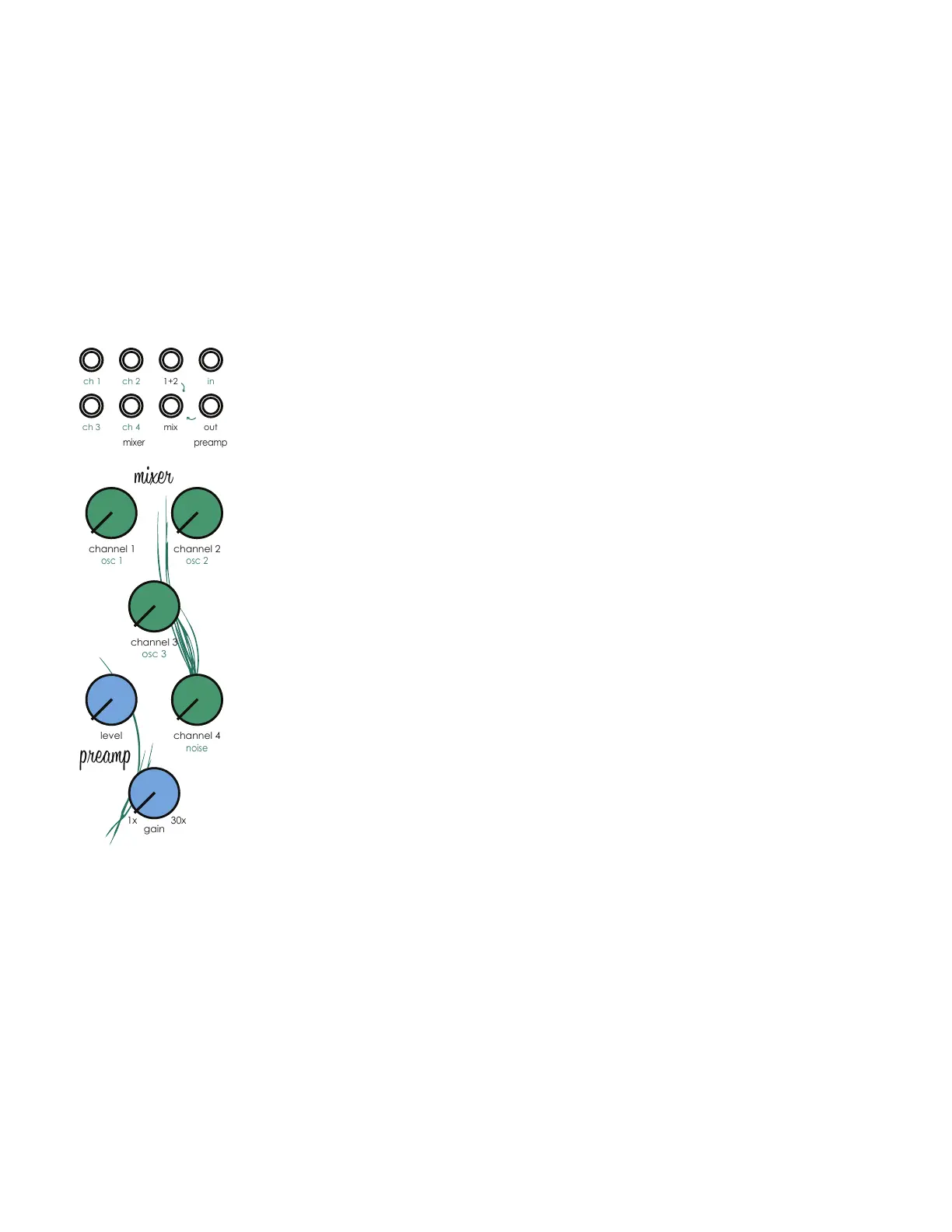

7 Dual Mixer / Preamp Modules
preamp
out
in
mixer
1+2
mix
ch 4
ch 2ch 1
ch 3
osc 2
osc 1
noise
1x 30x
osc 3
channel 3
gain
channel 4
channel 1 channel 2
level
