13.1 Output Overview:
Line level and headphone outputs. The line level output is monophonic. The headphone
output is dual monophonic with the same monophonic signal is routed into both the left and
right channels.
13.2 Output Input Jacks:
[Output Input Jack] Outputs module audio input jack.
13.3 Output Output Jacks:
[Headphone Output Jack] Dual monophonic TRS audio output jack.
[Main Output Jack] Monophonic TS audio output jack.

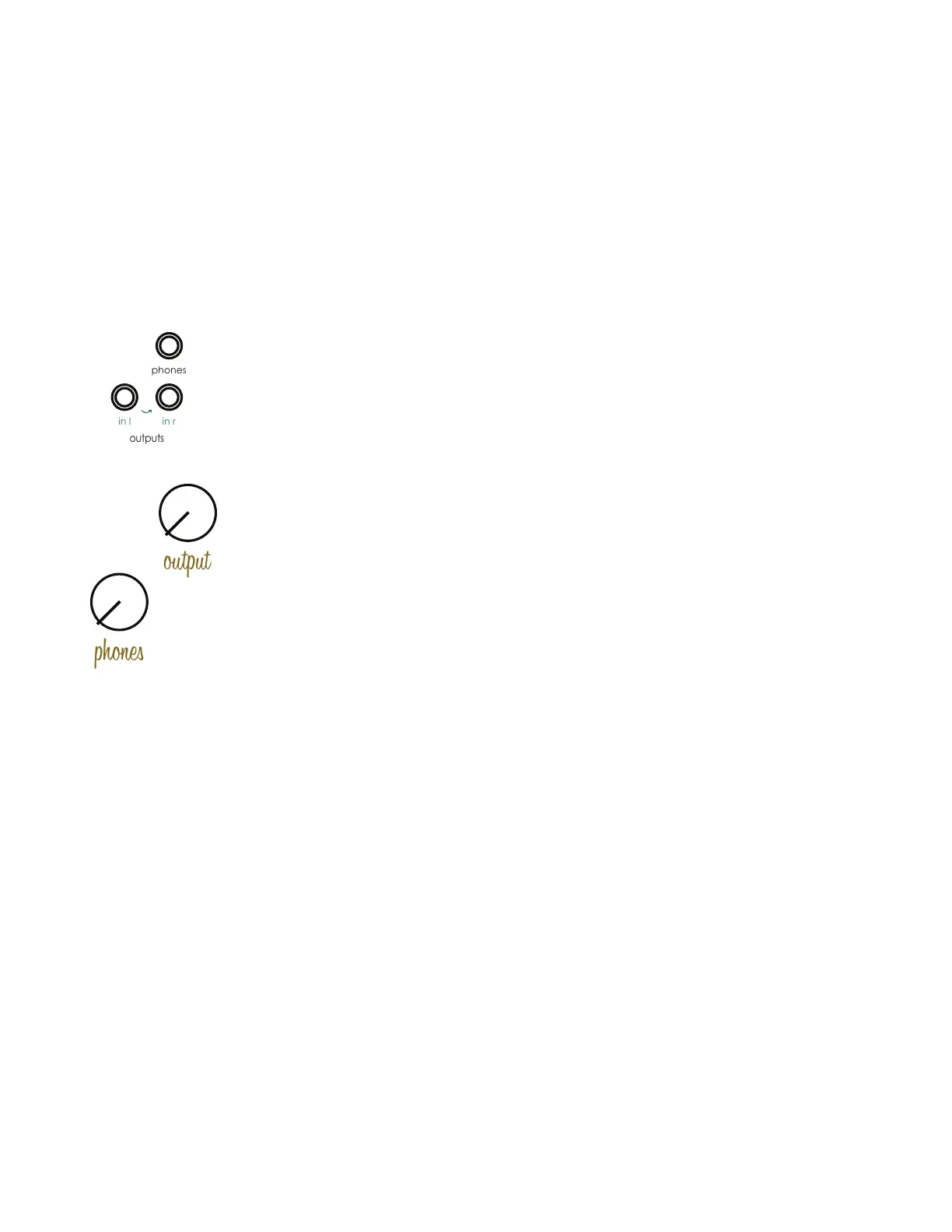

13 Output Module
outputs
in l
phones
in r
output
phones
