Pittsburgh Modular Taiga - 12 Echos Module; Module Overview, Controls, and I;O

12.4 Echos Mix:
The [Echos Mix Knob] acts as a balance control between the dry incoming signal and the wet
delayed signal. Turning the [Echos Mix Knob] to the left weighs the output toward the dry
signal. Turning the [Echos Mix Knob] to the right weighs the output toward the wet signal. In
theory, setting the [Echos Mix Knob] at 12 o’clock creates an even mix of the wet and dry
signals. In reality, the tolerance of the potentiometer, waves shape, and dry signal level all
inuence the location of an even 50/50 mix. The [Echos Mix Knob] is designed to attenuate the
signal at 50/50 mix. The drop in level creates headroom for feedback and self-oscillation to mix
properly with the dry signal without distorting.
12.5 Echos Input Jacks:
[Echos Time CV Input Jack] Delay time modulation input jack.
[Echos Input Jack] Echos audio input jack. The [Echos Input Jack] is normaled to the dynamics
output. Plugging a patch cable into the [Echos Input Jack] will remove the dynamics output
from the signal path.
12.6 Echos Output Jacks:
[Echos Output Jack] Echos audio output jack.

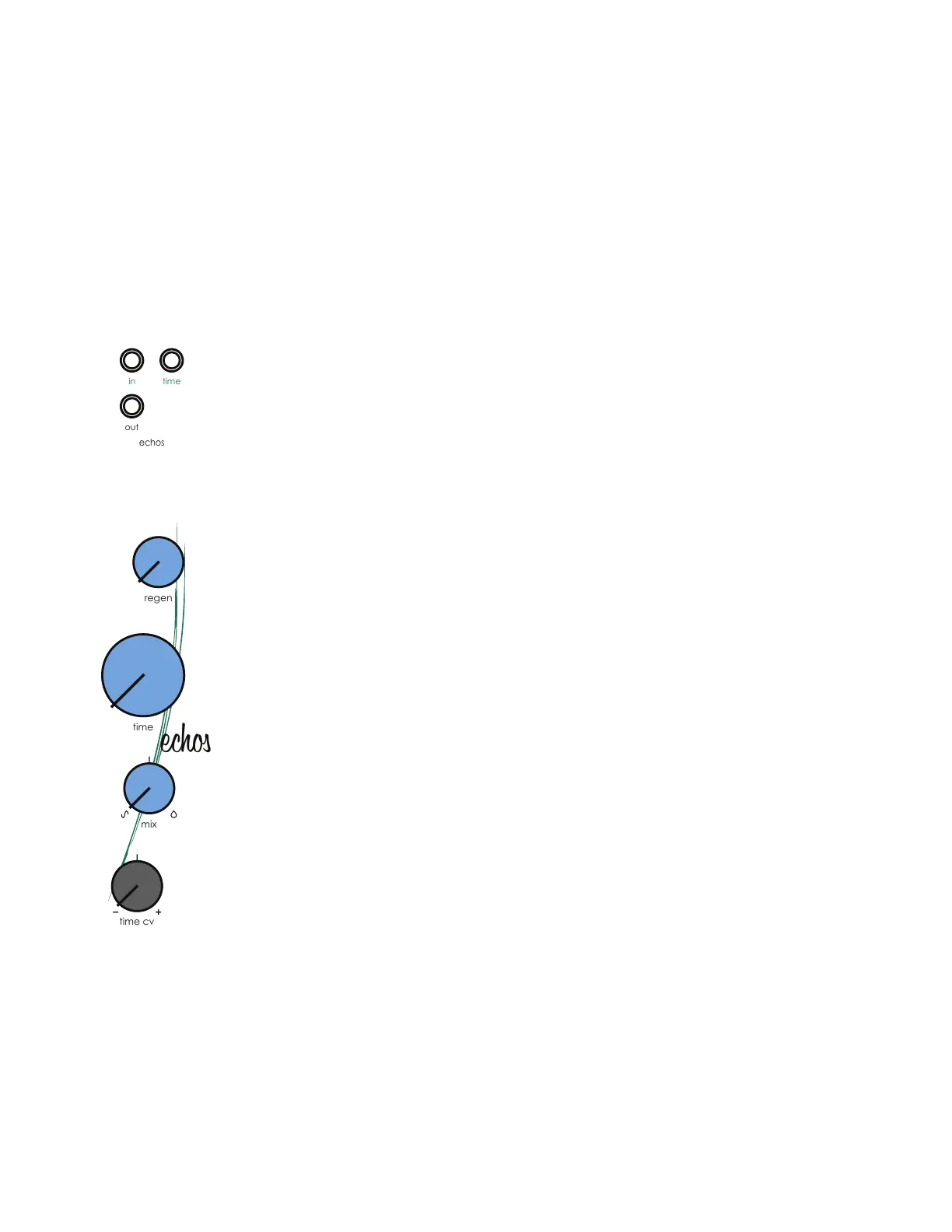

12 Echos Module
echos
time
out
time
in
mix
regen
echos
time cv
