Pittsburgh Modular Taiga - Mixer, Preamp, LFO, S&H, Noise, and Filter Sections

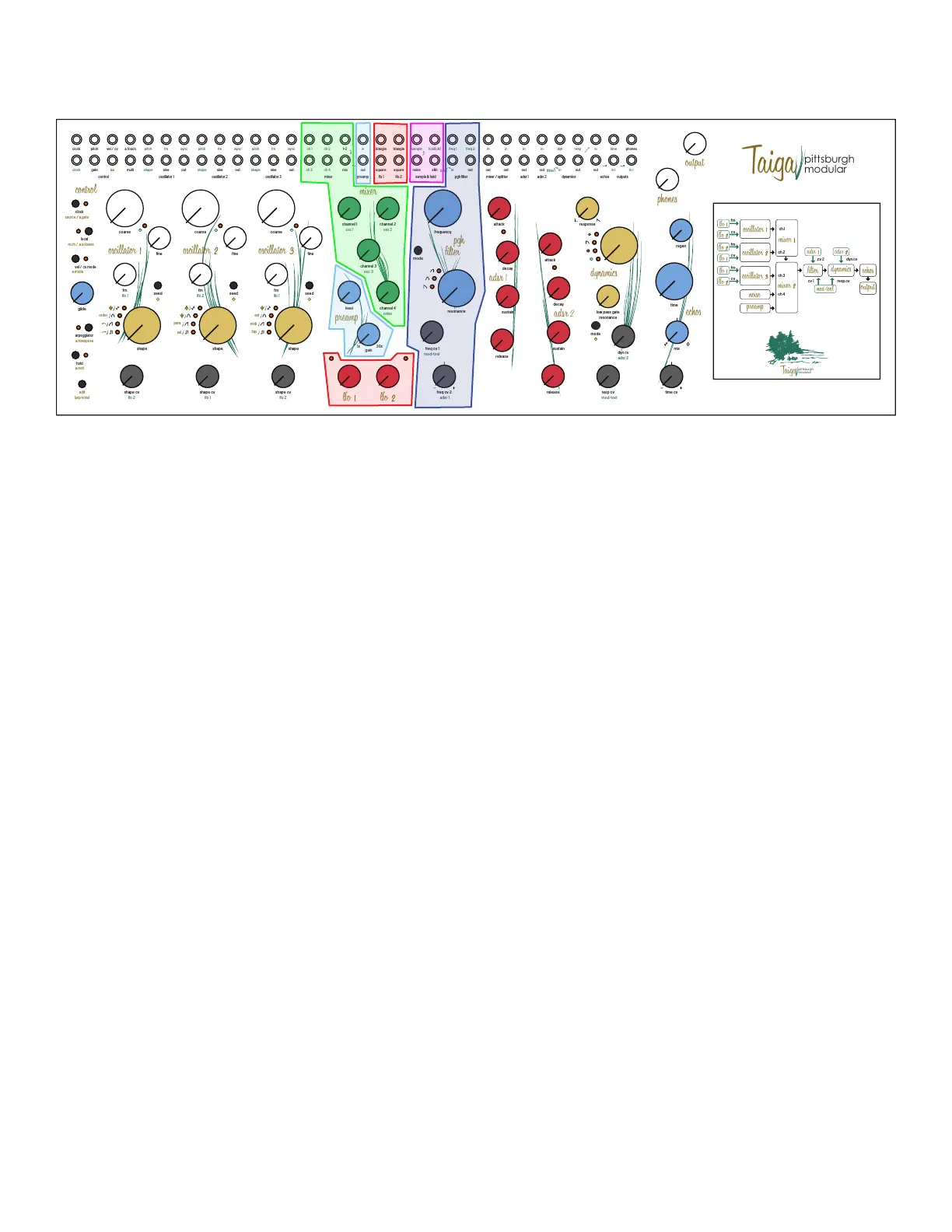

2 User Interface
Mixer Section (Green)
Channel 1 Knob - Assign Amplitude of Channel 1 /Oscillator
1 Wave Out Jack
Channel 2 Knob - Assign Amplitude of Channel 2 /Oscillator
2 Wave Out Jack
Channel 3 Knob - Assign Amplitude of Channel 3 /Oscillator
3 Wave Out Jack
Channel 4 Knob - Assign Amplitude of Channel 4 / Noise
Channel 1 In Jack - Channel 1 Input Jack
Channel 2 In Jack - Channel 2 Input Jack
Channel 1+2 Out Jack - Channel 1 and 2 Mix Breakout
Output Jack
Channel 3 In Jack - Channel 3 Input Jack
Channel 4 In Jack - Channel 4 Input Jack
Mix Out Jack - Channel 1, 2, 3, 4, and Preamplier Mixer
Output Jack
Preamp Section (Blue)
Level Knob - Assign Output Amplitude of Preamplier
Gain Knob - Assign Gain of Preamplier
Preamp In Jack - Channel 2 Input Jack
Preamp Out Jack - Preamp Breakout Output Jack
LFO 1 and 2 Sections (Red)
Frequency Knob - Assign Frequency of LFO
Triangle Out Jack - Triangle Wave Output Jack
Square Out Jack - Square Wave Output Jack
Sample and Hold / Noise Sections (Purple)
Sample In Jack - Waveform to be Sampled Input Jack
Noise Out Jack - Noise Output Jack
Hold In Jack - Gate Input Jack
Sample and Hold Out Jack - Sampled Voltage Output jack
Filter Section (Blue)
Frequency Knob - Filter Cutoff Frequency Knob
Mode Button
Main Function - Assign Filter Response
Edit Function - None
Resonance Knob - Filter Resonance Level Knob
Frequency CV 1 Knob - Frequency CV 1 Modulation Amount
Frequency CV 2 Attenuverter Knob - Frequency CV 2
Modulation Amount (positive or negative)
Frequency CV 1 In Jack - Frequency CV 1 Input Jack
Audio In Jack - Audio Signal Input Jack
Frequency CV 2 In Jack - Frequency CV 2 Input Jack
Audio Out Jack - Audio Signal Output Jack
