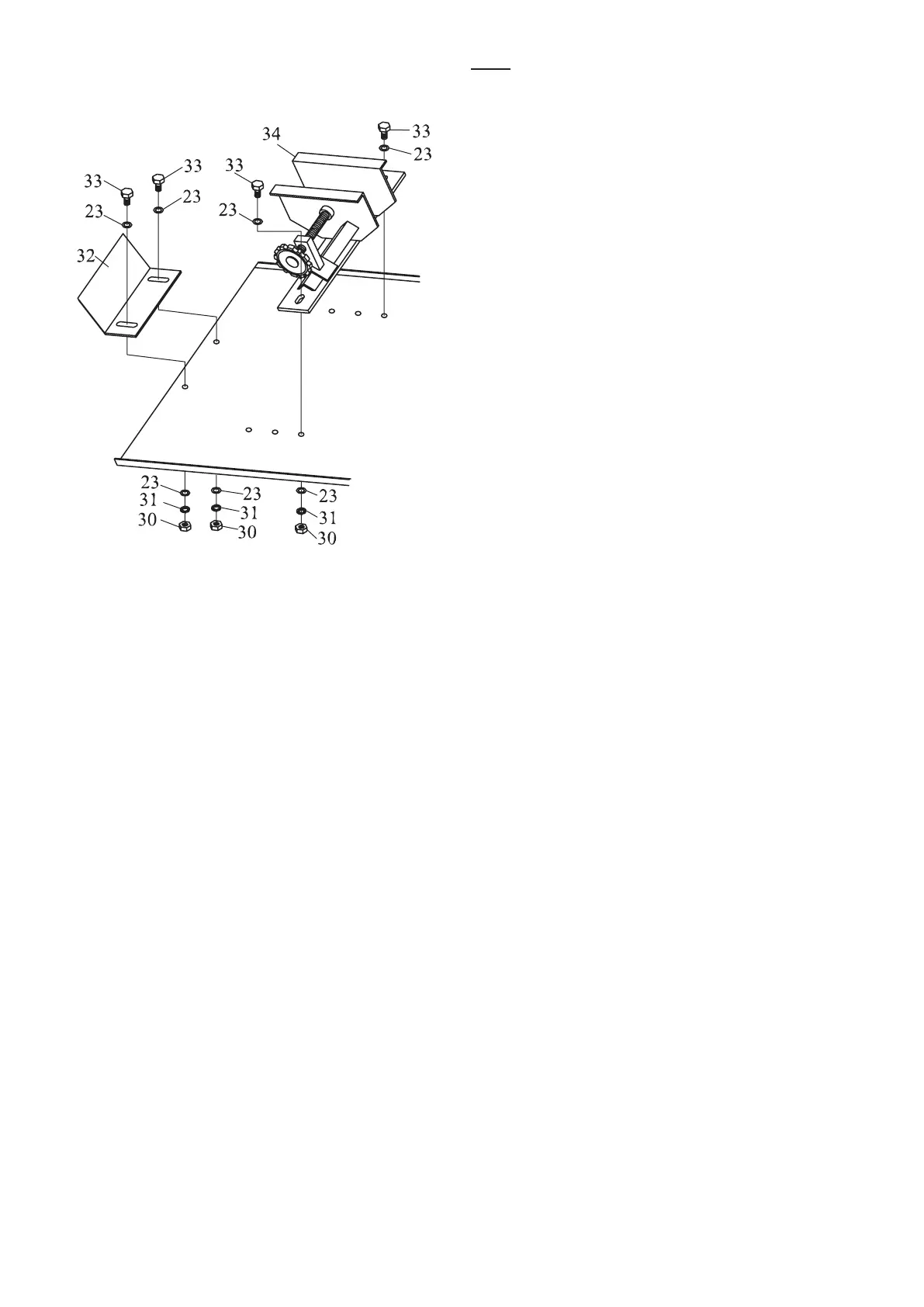

9. Fit the Vise (34) to the front of the Platform using
Bolts (33), Washers (23), Lock Washers (31),
and Nuts (30). Adjust to suit the motorcycle.
Note: Location of Front Wheel Vise Assembly in relation
to the Stop Plate (32) is adjustable by means of removing
Fasteners 30, 31, 23 and 33. Tighten Nuts and Bolts
only after determining the proper tire mounting position.
10. Attach the Stop Plate to the Platform using
Bolts (33) and Washers (23). Do not tighten yet.
11. Fit the Lift Foot Pedal (11) over the
Pump Piston Spindle (09).
12. Fit the Release Foot Pedal (10) over
the Release Valve Spindle (05).
