Page 4 For technical questions, please call 1-888-866-5797. 68892
Specifications
Max. Load Capacity 1000 LBS.
Max Lift Height 29-1/2 IN.
Min Lift Height 7 IN.
Ram Travel 3-7/8 IN.
Platform Dimensions 86-1/2 IN. L x 26-3/4 IN. W

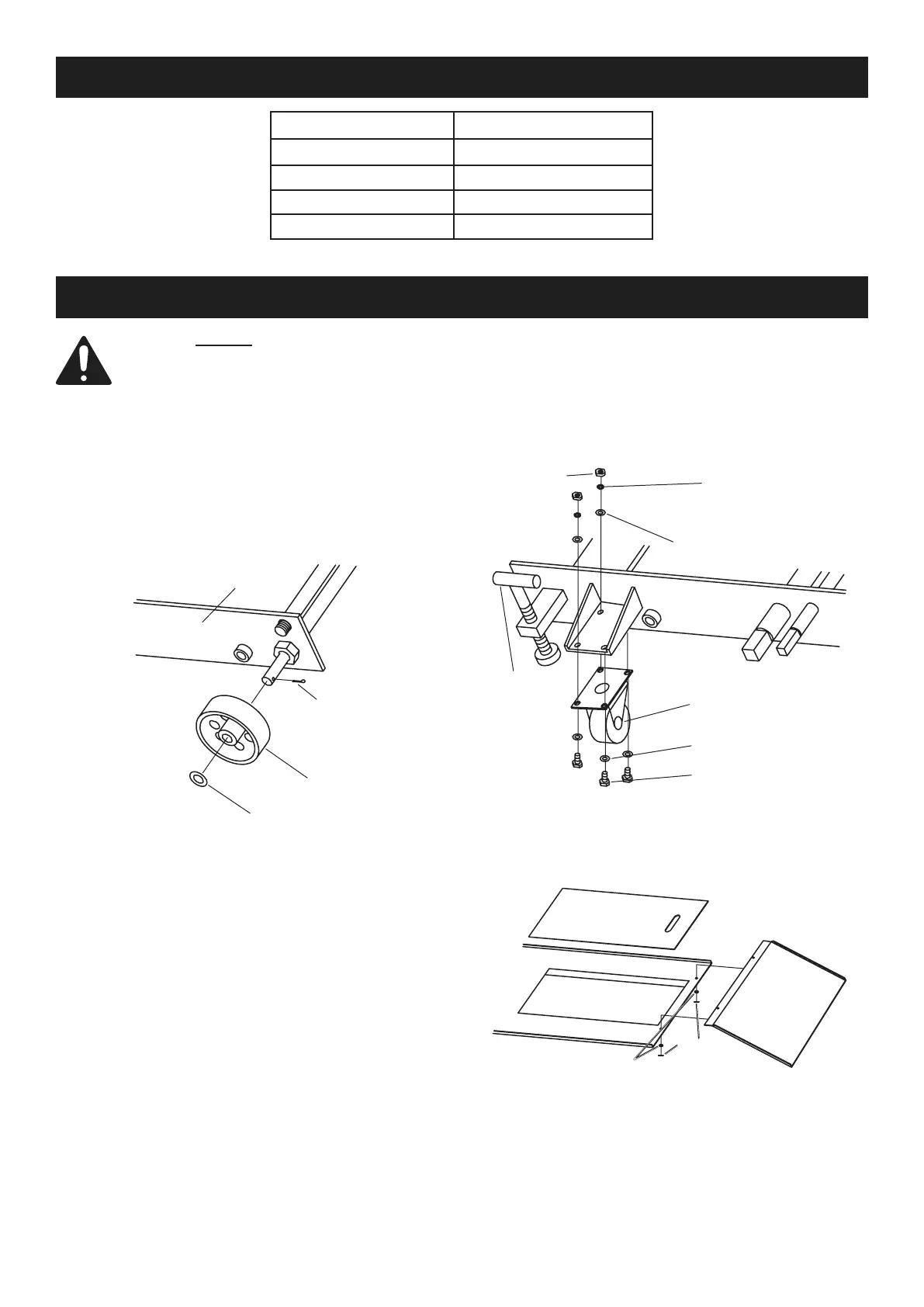

Assembly Instructions
Read the ENTIRE IMPORTANT SAFETY INSTRUCTIONS section at the beginning of this manual
including all text under subheadings therein before set up or use of this product.
1. Raise the end of the Frame Assembly near the
Access Panel (36), and support it on blocks.
2. Place a Front Wheel (44) and Washer (43) on the
Frame Assembly. Insert a Cotter Pin (47) through
the hole in the Axle, and bend it to secure the Wheel
in place. Repeat for the other Front Wheel (44).
Base Plate
(49A)
Cotter
Pin (47)
Front
Wheel (44)
Washer (43)
3. Lower the Frame Assembly off the blocks.
4. Turn the Lifting Screws (18) clockwise to raise
the opposite end of the Frame Assembly.
5. Install the Casters (14) to the Frame using Bolts (12),
Washers (13), Lock Washers (20), and Nuts (21).
Washer (13)
Nut (21)
Lifting
Screw
(18)
Lock
Washer (20)
Caster (14)
Washer (13)
Bolt (12)
Frame
Assembly
6. Turn the Lifting Screws counterclockwise
to lower the lift onto the Casters.
7. Place the Access Panel (36) into the Platform (35).
R-pins
(04)
Washers (23)
Platform (35)
Access
Panel (36)
Ramp
(37)
8. Insert the pins under the Ramp (37) into the holes
in the end of the Platform (35). Secure the pins
using Washers (23) and R-Pins (04).
To Next Page
