This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
EN (translated from italian)
CUBE • MC

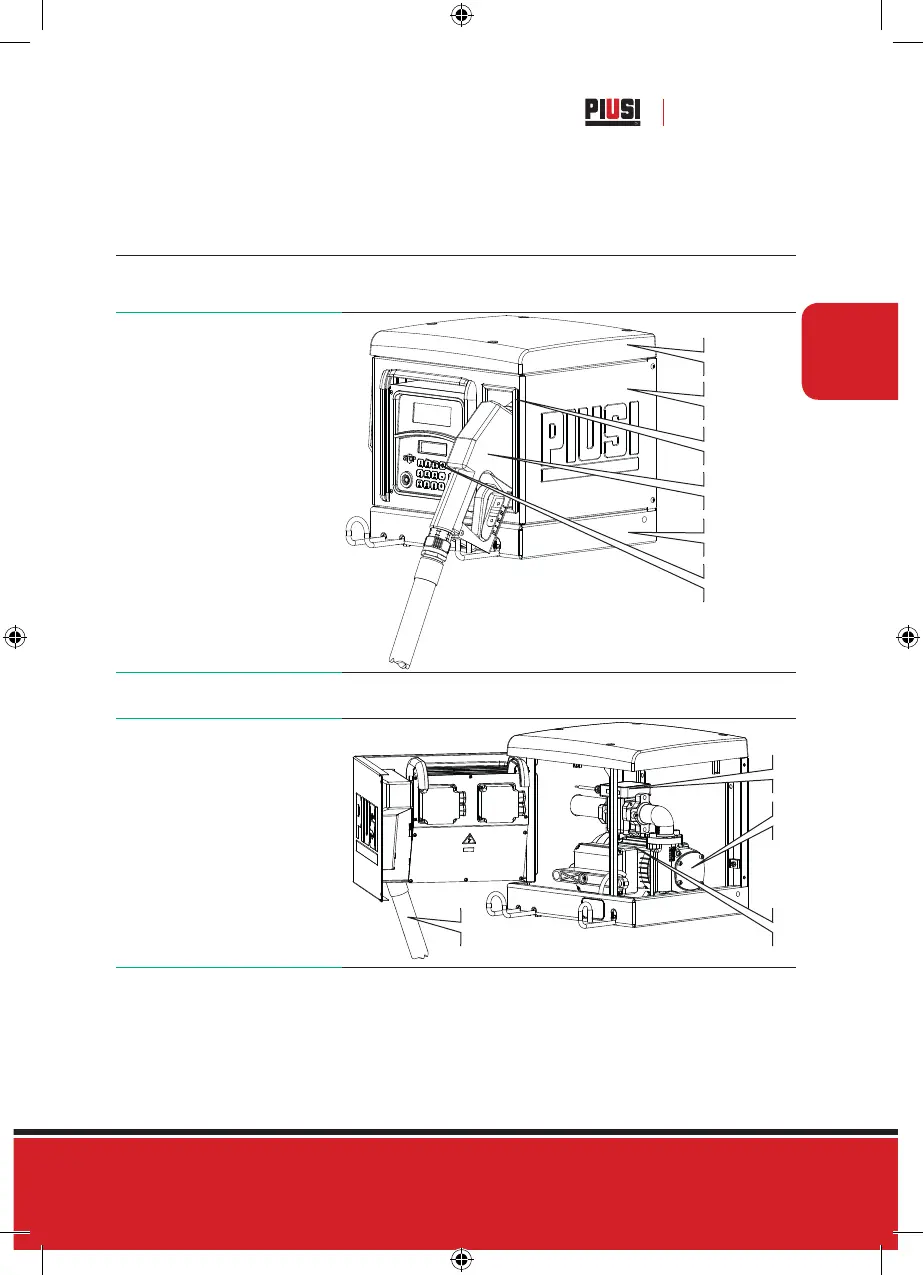

9 DESCRIPTION OF MAIN COMPONENTS
9.1 BODY
CUBE MC dispensers are designed for the transfer of diesel fuel for private use. Characterized by
maximum safety and simplicity of use, CUBE dispensers are dependable, high-performance equipment
that is quickly installed and ready for use. Equipment and features are:
1 - Blade type rotating self-priming
pump with incorporated by-pass
valve.
2 - Motor with degree of protec-
tion IP55 and heat protection,
230 V AC single phase.
3 - Four meters of anti-static rub-
ber tube for fuel.
4 - Automatic type dispenser
nozzle with ON/OFF switch inte-
grated in the nozzle support.
5 - Steel body with anti-corrosion
treatment and paint finish. Con-
trol system.
6 - System management
7 - Meter
INSPECTION
PANEL
ROOF
NOZZLE
HOUSING
4
5
6
9.2 PUMPING UNIT
Unit with blade type self-priming
electric pump,featuring bypass
valve. Such a valve allows func-
tioning for brief periods of time
even with the dispensing nozzle
closed. The motor, which is di-
rectly coupled to the pump body,
is asynchronous, of the closed
type(degree of protection IP
55 according to EN60034-5-86
standard) self-ventilated, single
phase. For further details, refer to
the single components manuals.
7
1
23
