System Architecture
© 2015 Planar Clarity Matrix Fiber Video Extension User Guide 4
System Architecture
The Fiber Video Extension module is the main component of the Fiber Video
Extension option. It works with the Quad Controller module to send images to the
LCD modules.

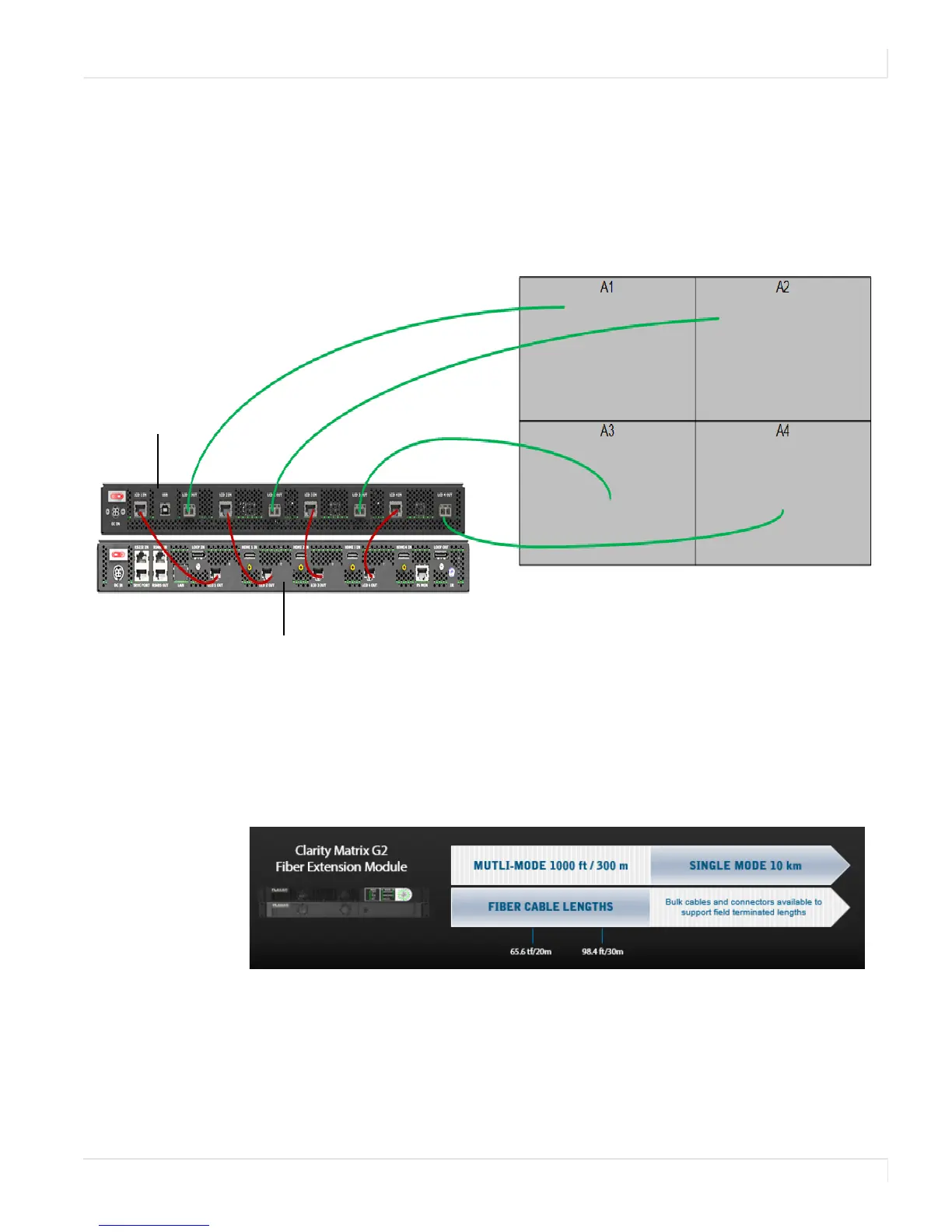

The following example shows the connections for a basic video wall.
Supported Fiber Cable Lengths
The following graphic illustrates the supported fiber cable lengths for the Fiber Video
Extension module. Planar supplies multi-mode transceivers, but the Fiber Video
Extension module is also compatible with single-mode transceivers available from
third parties.
Note: To accommodate the Fiber Video Extension module extended distance difference from
the maximum Power Supply distance, Quad Controllers may need to be separated from the
Power Supply module and powered from an optional DC Power Brick. See the Clarity Matrix
LCD Video Wall System with G2 Architecture Installation Guide for information.
Clarity Matrix Quad Controller
C
larity Matrix Fiber Video
Extension Module
