Planar LB2650W - User Controls; Front Panel Controls

10 LB2650W User’s Guide 020097300 Rev. A
User Controls
Front Panel Controls

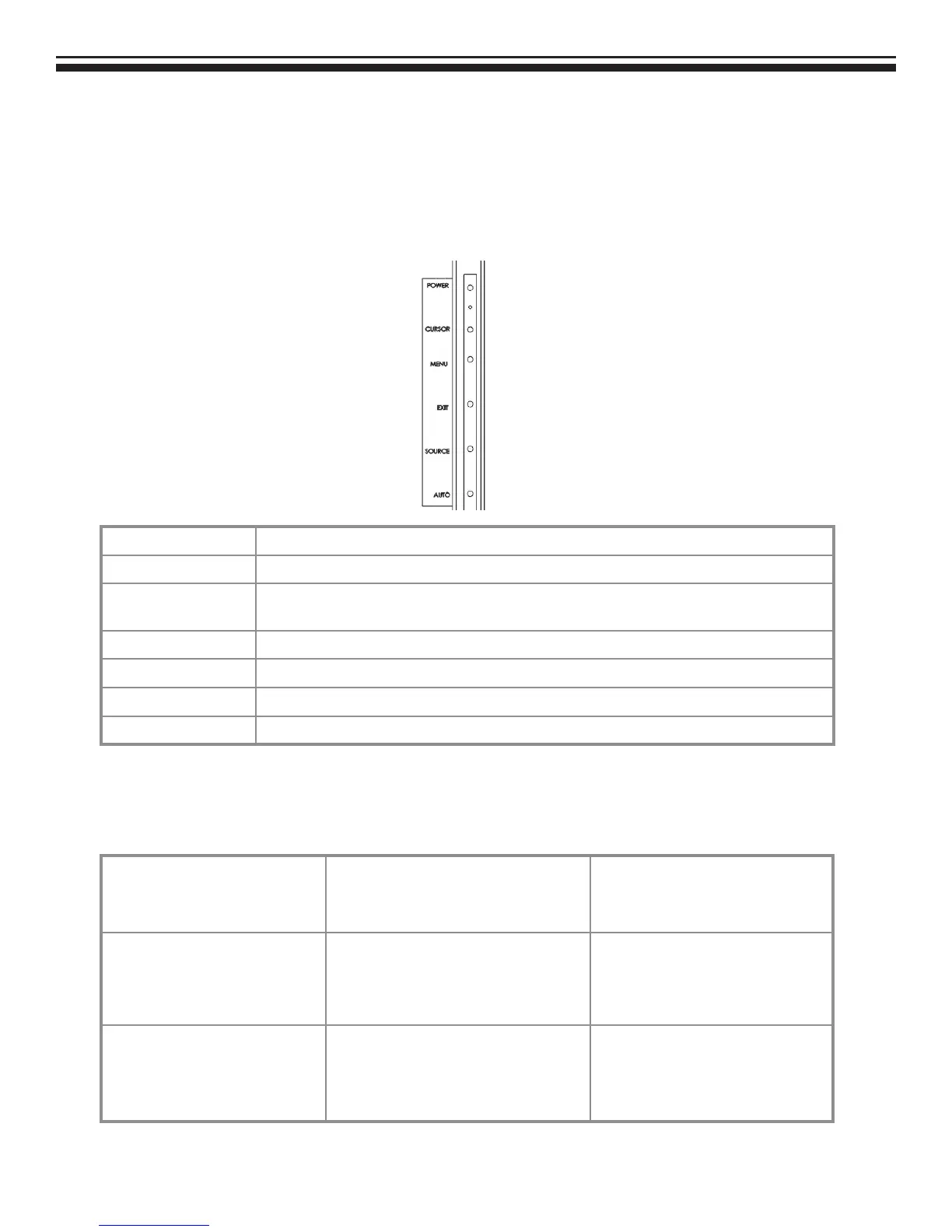

A brief description and the location of all LCD Monitor functions controls
and indicators.
Power Button Push to turn ON or turn O .
LED Indicator Green when the monitor is on, Amber when in power saving mode, and Dark when o .
Cursor Button
A four direction key plus enter/exit button. Allows you to move up, down, left, right or
pressed. See function chart below.
Menu Button Activates OSD main menu.
Exit Button Exit OSD display / DV mode hot key.
Source Button Select DVI or D-SUB signal source. (Toggle Switch)
Auto Button Hot key for manually auto adjusting the display.
Press key up~
Hot Key: Contrast +
Menu: Cursor Up
Press key left~
Hot Key: Brightness -
Menu: Cursor Left/Volume -
Press key center~
Item Enter/Exit
Press key right~
Hot Key: Brightness +
Menu: Cursor Right/Volume +
Press key down~
Hot Key: Contrast -
Menu: Cursor Down
Cursor Button
