R1224 Regulator
Installation Instruction
24-30-01 12-1001
Page: 3-2 Rev. M: 01 Dec. 2021
© 2021 - Hartzell Engine Technologies - All rights reserved

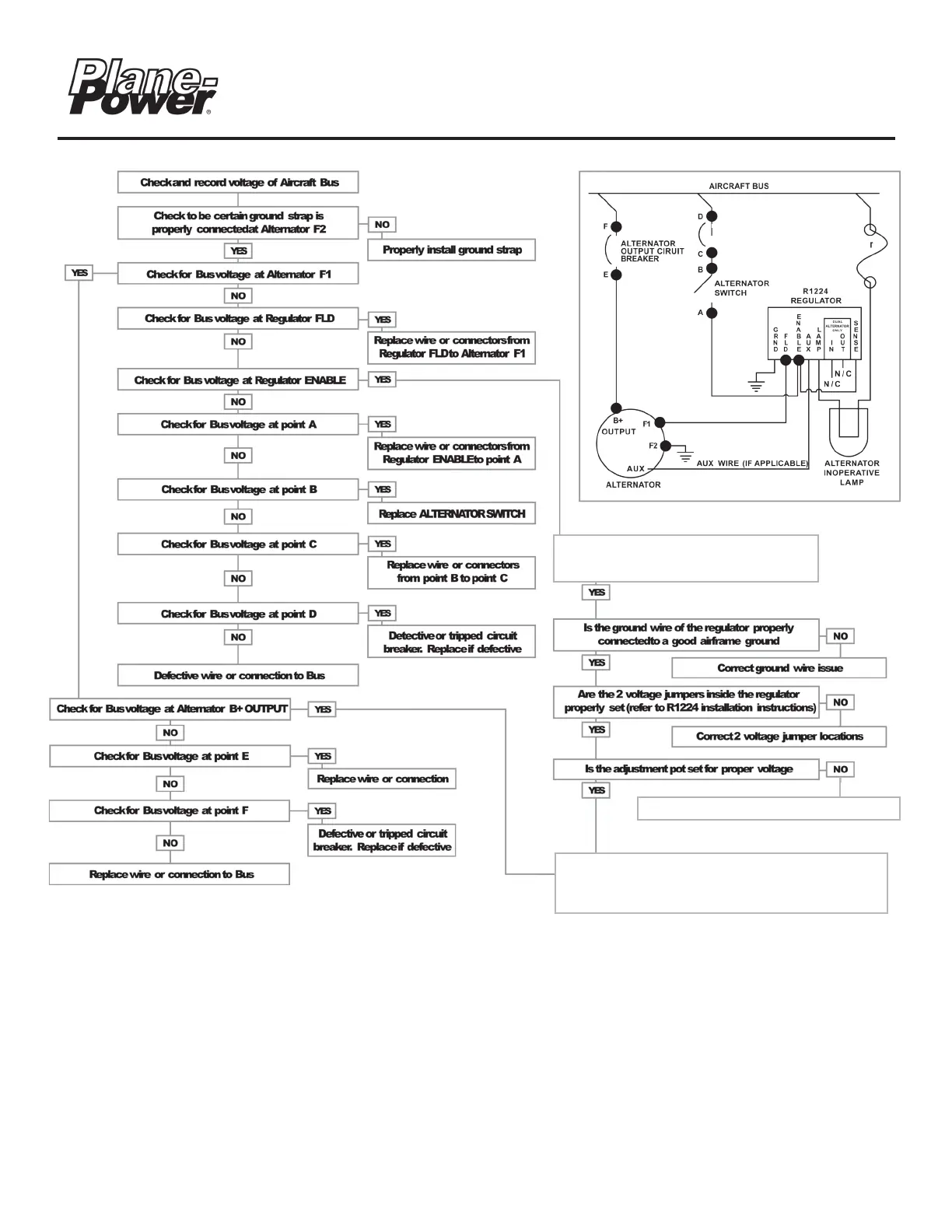

Table 3.1 - R1224 Regulator Troubleshooting
FIELD/
ALTERNATOR CB
1 AMP FUSE/CB
Call or email TECH SUPPORT for further instructions
Phone: +1.334.386.5400, option 2
E-mail: techsupport@Hartzell.aero
Verify the R1224 Regulator is wired per applicable
guide in Section 6. If no guide is present for specic
application, use the diagram found on this page.
R1224 TS Diagram (Typical)
Refer to seciton 6 of this document
