The Planar PCT2435 is a 23.8-inch (60.4 cm) Wide Screen TFT Color Touch LED LCD Monitor designed for crisp, clear display, particularly suited for Windows environments. It features a 16:9 widescreen aspect ratio and supports recommended resolutions of 1920x1080 at 60Hz. The monitor utilizes LED backlighting, making it energy-efficient. Its ergonomic and compact case design contributes to space-saving. The device also includes USB 3.0 connectivity.

Function Description:

The PCT2435 functions as a touch-enabled LED LCD monitor, providing visual output and interactive input capabilities for a computer system. It is designed for general computing tasks, offering a clear display and touch functionality for enhanced user interaction, especially with operating systems like Microsoft Windows 7, 8, and 10, which are HID (Human Interface Device) compatible. The monitor can be adjusted in height and viewing angle to suit user preferences. It supports both analog (VGA) and digital (HDMI) video input signals, allowing for versatile connectivity with various computer systems and video sources. The touch screen operates via a USB connection, eliminating the need for additional software drivers for compatible Windows operating systems.

Important Technical Specifications:

Display Size: 23.8 inches (60.4 cm)
Aspect Ratio: 16:9 Widescreen
Panel Type: TFT Color LCD
Pixel Pitch: 0.2745(H) x 0.2745(V)
Display Colors: 16.7M Colors
Max. Resolution: 1920x1080 @ 60Hz
Dot Clock: 170MHz
Horizontal Frequency: Analog & Digital: 30kHz – 83kHz
Vertical Frequency: Analog & Digital: 50-75Hz
Input Connectors: D-Sub 15 pin (VGA), HDMI
Input Video Signal: Analog: 0.7Vp-p (Standard), 75Ω, Positive; Digital: HDMI
Power Source: 100~240VAC, 50/60Hz (internal universal power supply)
Power Consumption: ≤28W (TYP) in ON Mode, ≤0.5W in OFF Mode
USB: USB 3.0 (for touch functionality)
Dimensions (W x H x D): 543.7mm x 385.5mm x 211.2mm
Weight (w/stand): 5.32kg
Weight (w/o stand): 3.03kg
Operating Temperature: 0°C to 40°C
Storage Temperature: -25°C to 55°C
Operating Humidity: 10% to 85%
Regulatory Compliance: cTUVus, CE, FCC B
VESA DDC2BTM: Equipped with DDC2B capabilities for host system communication.
EPREL Registration Number: 451487

Usage Features:

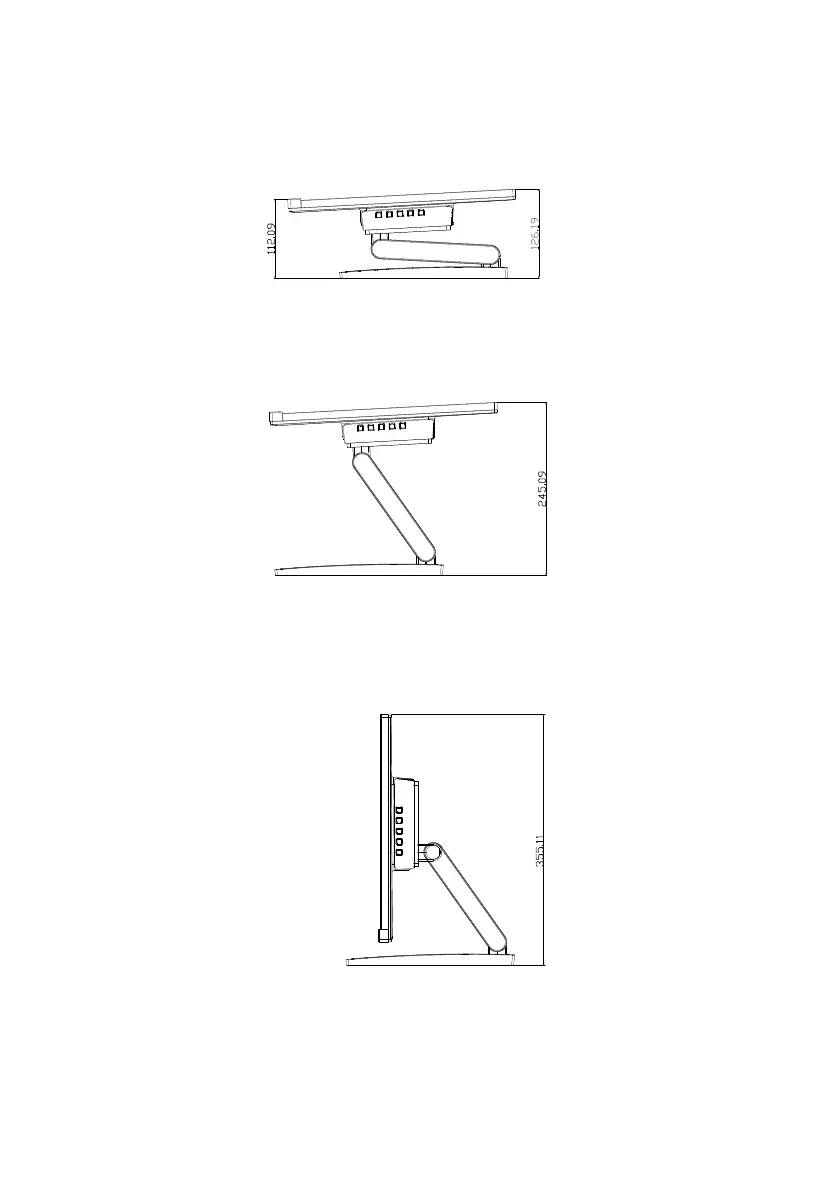

Adjustable Height: The monitor's height can be adjusted from 4.96 inches (126.19mm) to 14 inches (355.11mm) for ergonomic viewing.
Adjustable Viewing Angle: The monitor's angle can be adjusted from -5° to 90°, allowing users to set it to their preferred viewing position.
Front Panel Controls: The monitor features several control buttons on the front panel for easy access to settings:
- Power Button: To switch the monitor ON/OFF.
- MENU / ENTER Button: Activates the OSD menu or confirms function adjustments.
- ECO / (-) Button: Activates ECO control (when OSD is OFF) or navigates/adjusts functions (when OSD is ON).
- Volume / Blue Light Reducer / (+) Button: Activates volume control (when OSD is OFF) or navigates/adjusts functions (when OSD is ON). A long press (3 seconds) activates the Blue Light Reducer function.
- Source / Auto Adjust / Exit Button: Toggles between input sources (when OSD is OFF), performs auto-configure (VGA input only, long press for 2 seconds when OSD is OFF), or acts as an Exit Key (when OSD menu is ON).
OSD Lock Function: Allows locking all 4 buttons (excluding Power) by holding the MENU key for 5 seconds. A Power & OSD Lock function locks all 5 buttons (including Power) by holding the POWER key for 5 seconds.
On-Screen Display (OSD) Menu: Provides comprehensive settings for picture adjustment, color temperature, OSD setup, and extra functions.
- Luminance: Adjusts Contrast, Brightness, Eco Mode (Standard, Text, Internet, Game, Movie, Sports presets), and DCR (Dynamic Contrast Ratio).
- Image Setup: Adjusts Clock, Phase, H. Position, V. Position, Image Ratio, OD (Overdrive Adjustment), Color Range (for HDMI), and USB Power.
- Color Temp.: Offers Warm, Normal, Cool, User (R.G.B gain adjustment), and sRGB presets.
- Blue Light Reducer: Provides various reduction levels (15%, 30%, 50%, 70%) optimized for different viewing activities (Video, Web Browsing, Reading, Low Light).
- OSD Setup: Adjusts H. Position, V. Position, Timeout, and Language of the OSD.
- Extra: Allows selecting Input Source, DDC/CI on/off, Reset to default status, and displaying Information (resolution, H/V, video timing).
Plug & Play DDC2B Feature: Automatically communicates display capabilities to the host system, ensuring proper configuration.
Green Monitor Standards: Designed to conserve electrical energy by automatically switching to an OFF mode when no video input signal is present, reducing power consumption.
Touch Screen Calibration: Calibration is a simple process accessible through Tablet PC Settings in the Control Panel for Microsoft Windows 7, 8, and 10. A "Reset" button is available to restore factory calibration settings.

Maintenance Features:

Cleaning: The monitor can be cleaned periodically with a soft cloth. Stubborn stains can be removed with a cloth lightly dampened with a mild detergent solution. Strong solvents, thinners, benzene, or abrasive cleaners should not be used. Always unplug the monitor before cleaning.
Ventilation: Slots and openings in the cabinet are provided for ventilation to prevent overheating. These openings should not be blocked or covered.
Servicing: Do not attempt to service the monitor yourself. Refer all servicing to qualified personnel to prevent exposure to dangerous voltages and other hazards.
Packaging: Retain the original shipping carton and packing materials for safe transport if the monitor ever needs to be shipped.
Operational Limits: Do not operate the product for over 16 hours per day.
