Wireless Link Info Screen
After clicking the "Link Info" button on the Wireless Screen, a screen like the example
below will be shown.

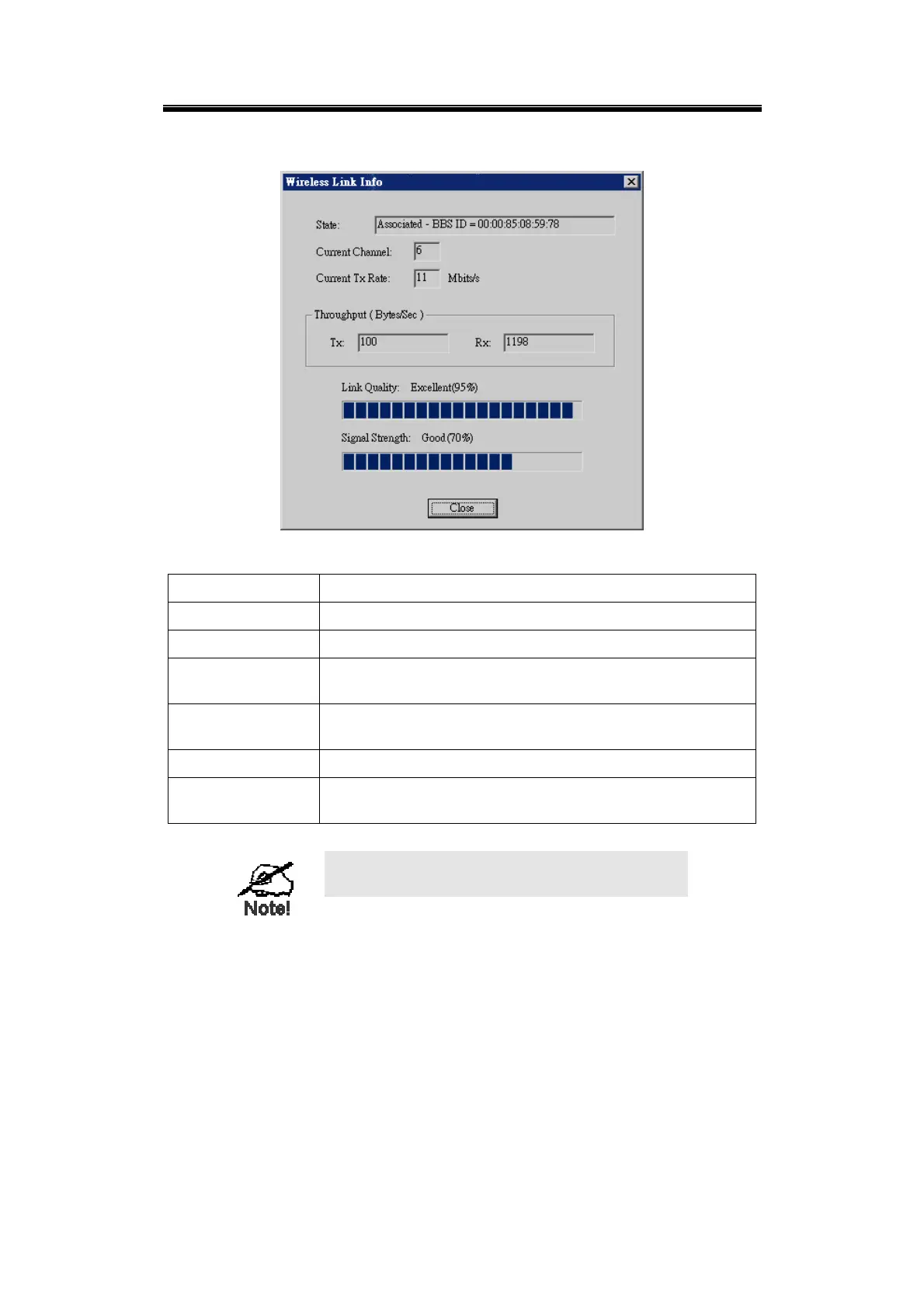

Figure 25:Link Info Screen
State
This indicates which Access Point is currently in use.
Current Channel
The current channel which has been used.
Current TX Rate
The current transmitting speed.
Throughput (Tx)
This will show how much data has been transmitted per sec-
ond.
Throughput (Rx)
This will show how much data has been received per sec-
ond.
Link Quality
This indicates the quality of the Wireless connection
Signal Strength
This indicates the strength of the Wireless signal being re-
ceived.
The "Link Quality" and "Signal Strength" data is not
available if using "Ad-hoc" or "802.11 Ad-hoc" mode.
