7
obtain detailed information about real-time PoE power usage and real-time system
status of the GSD/GSW 802.3at PoE+ Switch series.

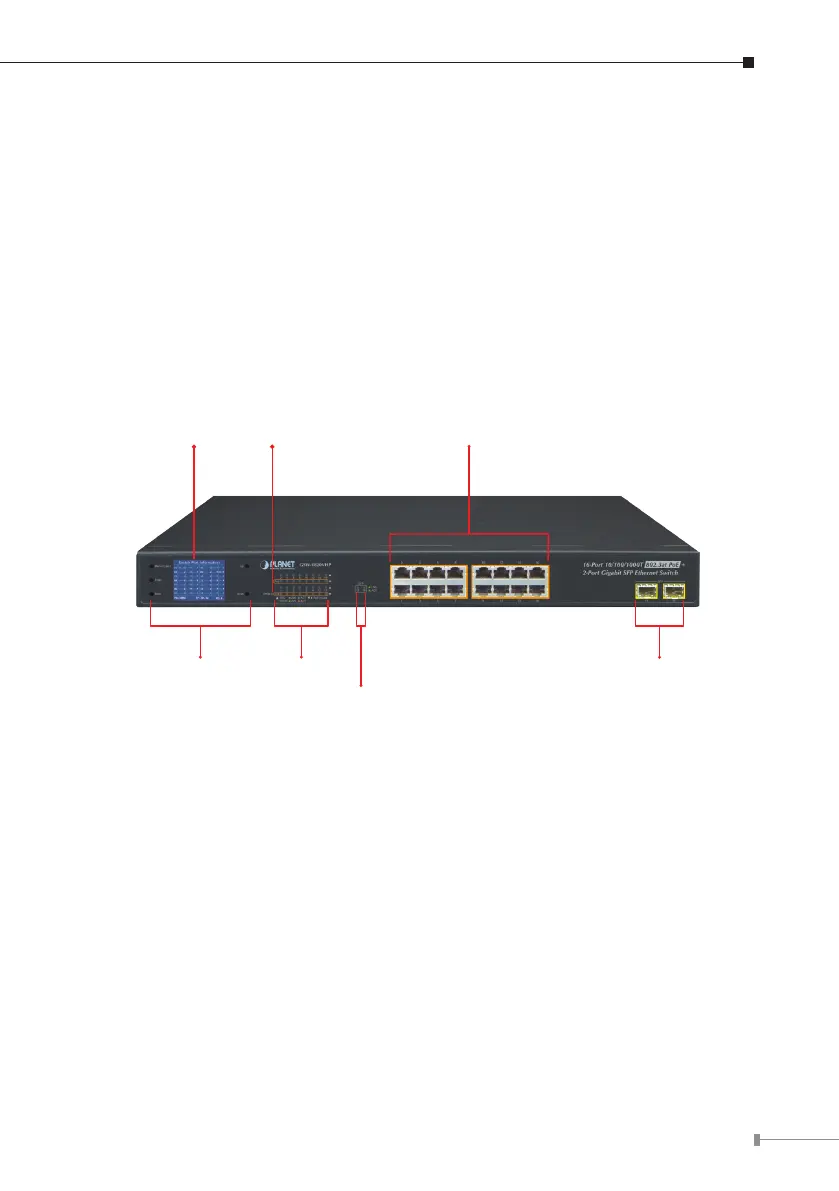

1
PWR
5 9 13 17 21
3 7 11 15 19 23
PoE
2 6 10 14 18 22
4 8 12 16 20 24
PoE
24-Port 10/100/1000T 802.3at PoE
+
2-Port Gigabit
SFP Ethernet Switch
PoE Port Status
PoE In-Use
ACTLNK1000
ACTLNK10/100
ACT
LNK
SFP
25 26
Standard
VLAN
Extend
PoE Port Status Power Over-voltage Protection
Power Low-voltage Protection
Power Over Temperature Protection
Easy Installation and Cable Connection
As data transfer and High Power PoE are transmitted over a cable, the GSD/
GSW 802.3at PoE+ Switch series is able to reduce the need of extended cables
and electrical outlets on the wall, ceiling or any unreachable place. It helps to
lower the installation costs and simplify the installation effort. All RJ45 copper
interfaces of the GSD/GSW 802.3at PoE+ Switch series support 10/100Mbps and
10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45
Category 6, 5 or 5e cable. It also supports standard auto-MDI/MDI-X that can
detect the type of connection to any Ethernet device without requiring special
straight-through or crossover cables.
Flexible and Extendable Uplink Solution
The GSD/GSW 802.3at PoE+ Switch series provides 2 extra Gigabit TP or SFP
ports supporting 10/100/1000BASE-T RJ45 copper for surveillance network
devices such as NVR, video streaming server or NAS to facilitate surveillance
management. Or through these Gigabit speed ber SFP slots, the 1000BASE-SX/
LX SFP (Small Form-factor Pluggable) ber transceiver is inserted to be uplinked
to a backbone switch and monitoring center over a long distance. The distance
can be extended from 550m to 2km (multi-mode ber), even going up to above
10/20/30/40/50/60/70/120km (single-mode ber or WDM ber). They are well
suited for applications within the enterprise data centers and distributions.
