720p SIP Multi-unit Video Door Phone with RFID and PoE
HDP-5240PT
26
Step 2: Drilling

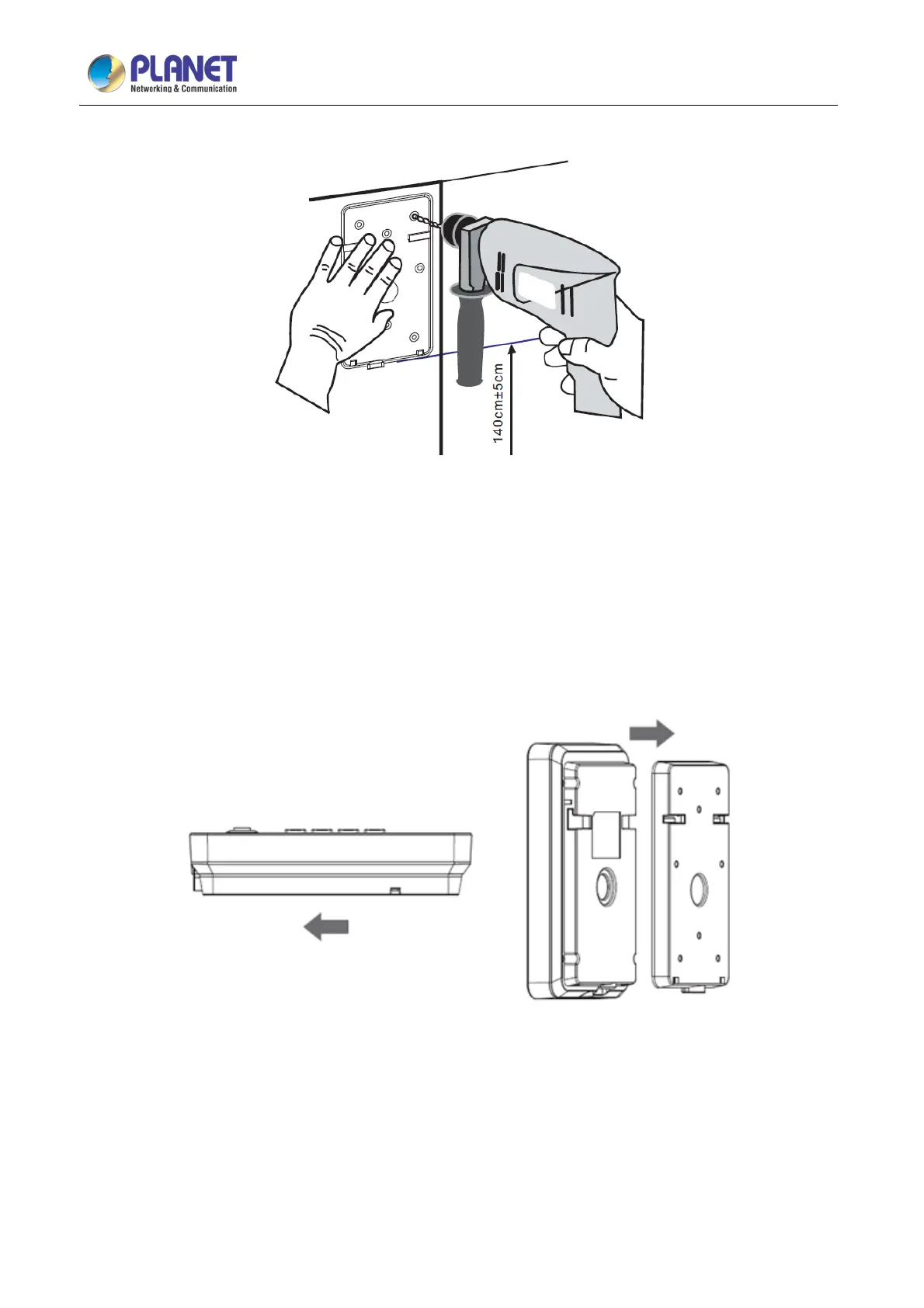

Figure 2 Wall Mounting
A. Place the mounting template with dimensions on the surface of a wall in a desired flat position.
B. Use an electric drill to drill the 4 holes marked on the mounting template. It is recommended to drill about
30mm deep. Remove the template when finishing drilling.
C. Push or hammer screw anchors into the drilled holes.
Step 3: Removing Hanging Panel
A. Remove the hanging shell in Figure 3 and Figure 4.
en click
<Delete>.
