Step 5: Connection Line

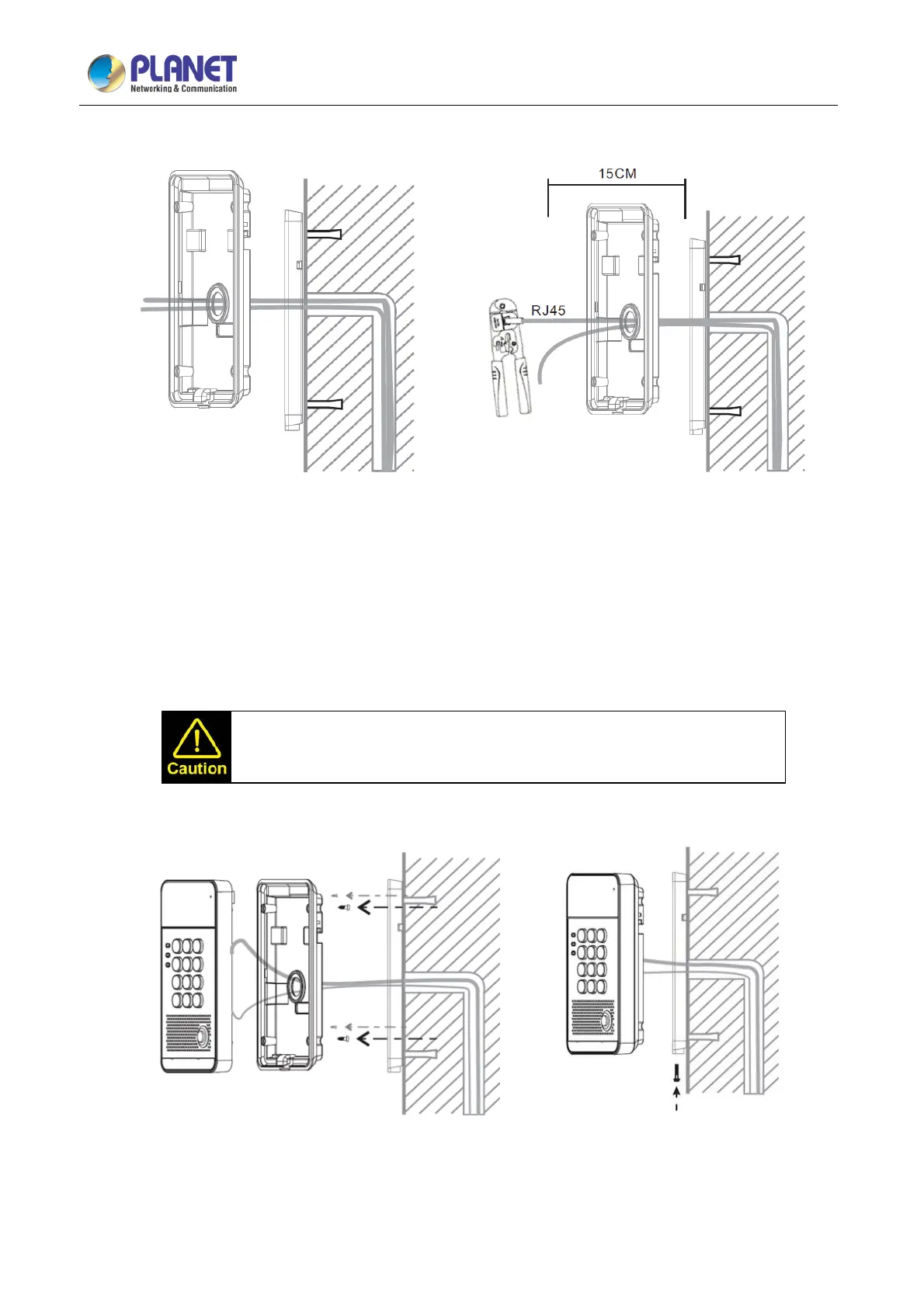

Figure 7 Figure 8
A. Select the hole for cable supply.
B. Connect the cables of RJ45, power, and electric lock to the motherboard socket as mentioned in
connectors description (refer to Section 2).
C. Test whether there is electricity by doing the following:
(A) Press the # button for 3 seconds to get the IP address of intercom by voice.
(B) Input access password or press the indoor switch to check electric-lock installation.
Do not proceed mounting until you have finished checking the electricity!
Step 6: Mounting
Figure 9
Figure 10
To Next Page
