Planet IGS-5225 Series Quick Installation Guide

6

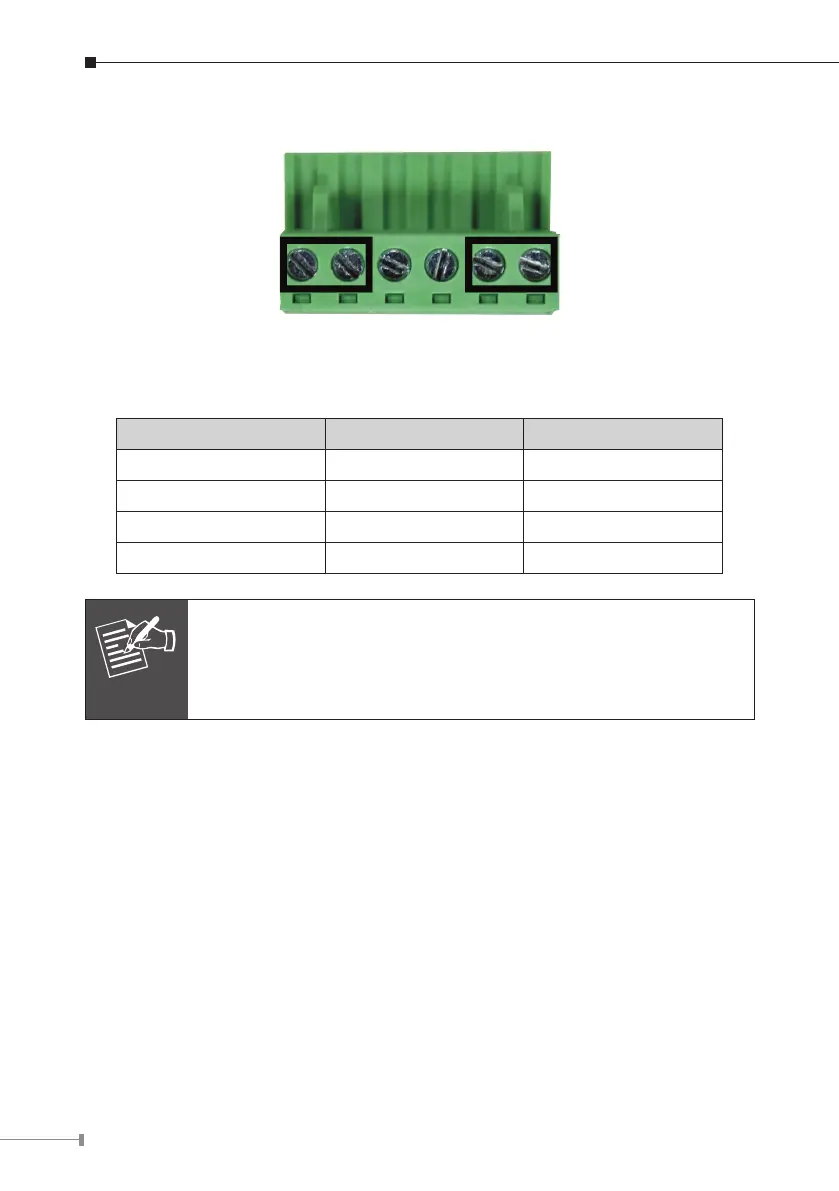

2.Tightenthewire-clampscrewsforpreventingthewiresfromloosening.
1 2 3 4 5 6
V1+ V1- V2+ V2-
Power 1 Power 2
Positive(+)Pin Negative(-)Pin
IGS-5225-16T4S Pin1/5 Pin2/6
IGS-5225-20T4C2X Pin1/5 Pin2/6
IGS-5225-16P4S Pin1/5 Pin2/6
IGS-5225-24P4S Pin1/5 Pin2/6
Note
The wire gauge for the terminal block should be in the range
between 12and24 AWG.
