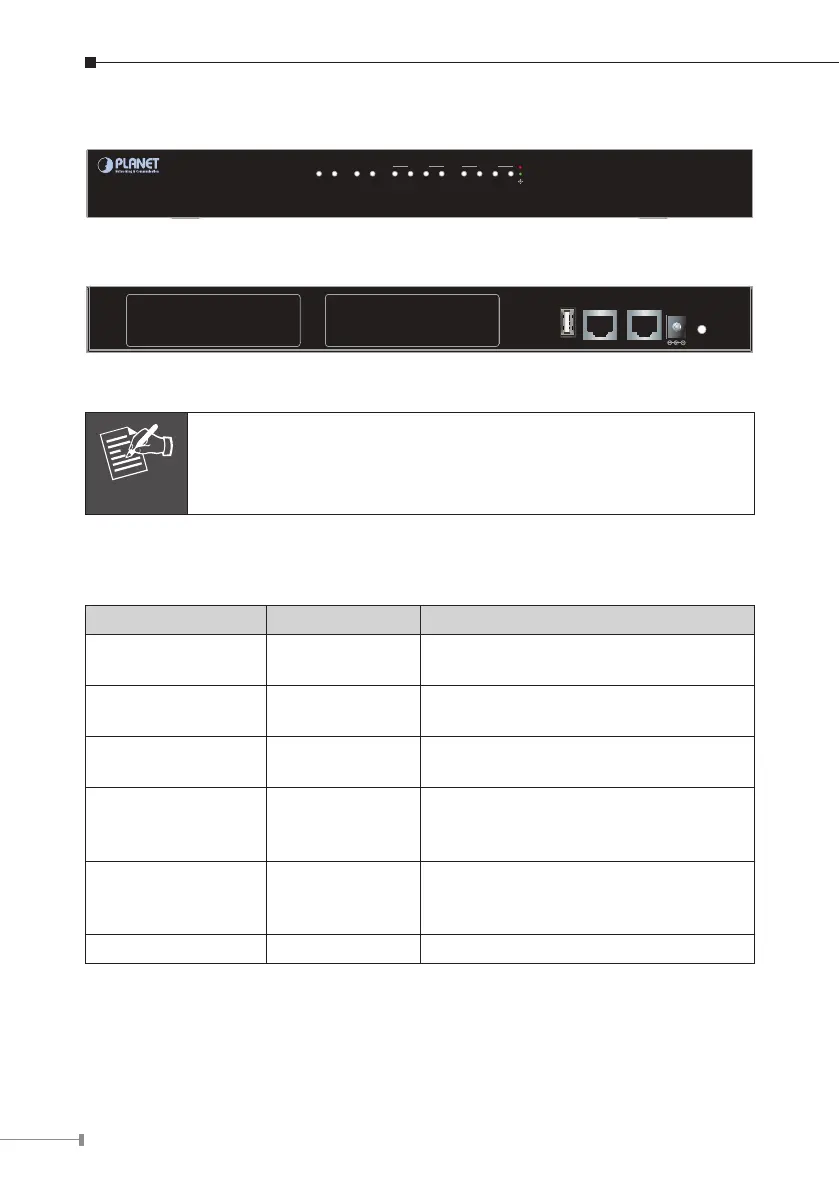

2.2.2 Physical Introduction
SLOT 1 SLOT 2
IPX-2100
Internet Telephony PBX System
Ringing
FXO
FXS
21 3 4 21 3 4PWR SYS USBETH
Front Panel of the IPX-2100
USB Console ETH
Reset
SLOT 2
12V DC
SLOT 1
Rear Panel of the IPX-2100
Note
Supporting 2 slots, user can buy expansion module like VIP-21FO
(4 x FXO), VIP-21SL (2 x FXO + 2 x FXS) or VIP-21GS (4 x GSM)
for extending port service.
2.2.3 LED&Buttondenitions
LEDdenitions
Front Panel LED Status Description
PWR
Steady Green
Off
PBXPowerON
PBX Power OFF
SYS
Blinking Green
Off
System is working
System is off
ETH
Blinking Green
Off
PBX network connection is established
Waiting for network connection
FXO
Steady Red
Flashing
Off
Ready / Standby
Ringing
Module not available
FXS
Steady Green
Flashing
Off
Ready / Standby
Ringing
Module not available
USB Void Future Feature
