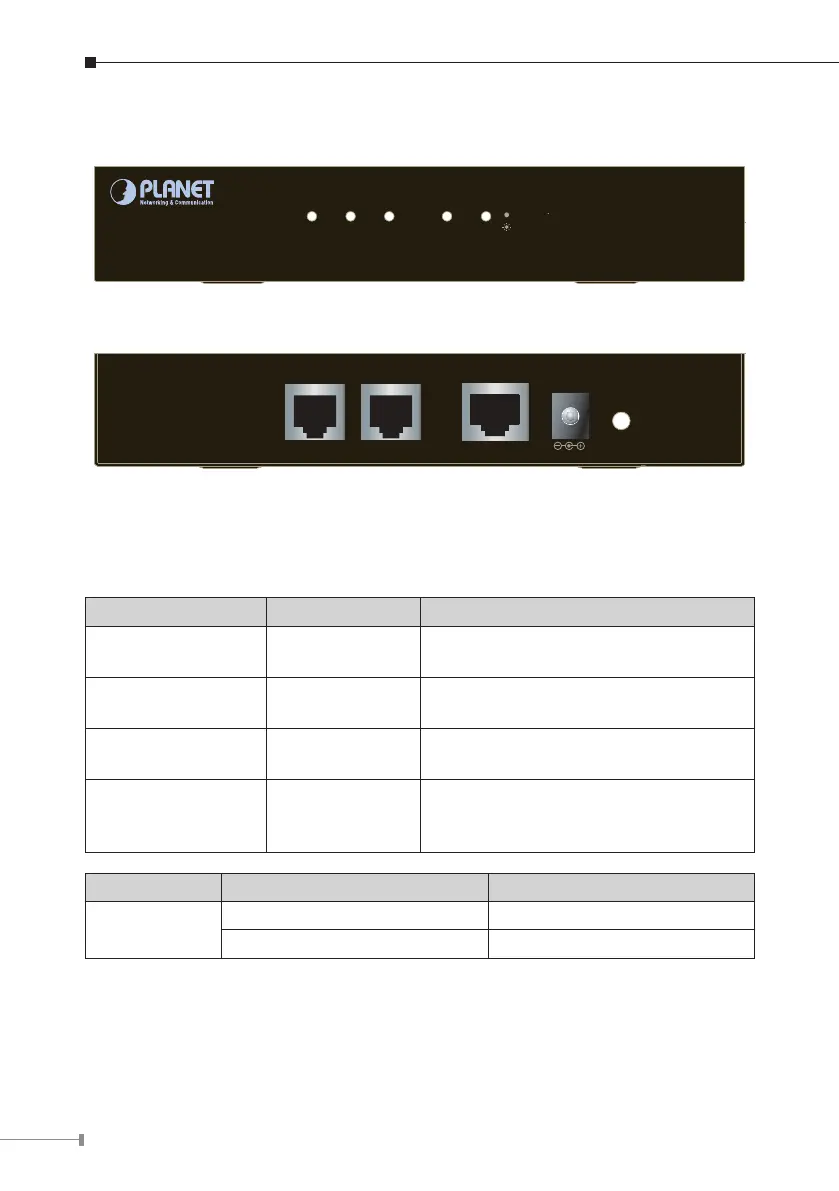

1.2.2 Physical Introduction
IPX-330
Internet Telephony PBX
Ringing
FXO
PWR SYS 1 2ETH
Front Panel of the IPX-330
2 1 ETH
Reset
12V DC
Rear Panel of the IPX-330
1.2.3 LED&Buttondenitions
LEDdenitions
Front Panel LED Status Description
PWR
Steady Green
Off
PBXPowerON
PBX Power OFF
SYS
Blinking Green
Off
System is working
System is off
ETH
Blinking Green
Off
PBX network connection is established
Waiting for network connection
FXO
Steady Red
Flashing
Off
Ready / Standby
Ringing
System is off
Button Action Description
Reset
Press less than 5 secs. System reboot
Press over 6 secs. Reset to Factory Default
