Planet MGSW-24160F Quick Installation Guide

15
6.RecoveringBacktoDefaultConguration
 IP address has been changed or admin password has been forgotten –
To reset the IP address to the default IP Address “192.168.0.100” or reset
the login password to default value, press the hardware reset button on the
front panel for about 10 seconds.
After the device is rebooted, you can log in the management Web interface
within the same subnet of “192.168.0.xx”.
Reset
1000 LNK/ACT
10/100 LNK/ACT
18 20 2 4
2Alarm
DC1
DC2
AC
4 6 8 10 12 14 16
17 19 1 3
1 3 5 7 9 11 13 15
ON
AC POWER
OFF 50/60Hz
100-240V , 1.5A max.100-240V , 1.5A max.
DC POWER
ON
OFF
DC Input: 36-60V ,
1.5A max.
Alarm
GNDGNDDO 1DO 0DI 1DI 0
DC 2DC 1
CAUTION
Please refer to user’s manual before
connect the DC wire.
Max. Fault Alarm Loading: 24V, 1A
1G/2.5G
100/10G
XG
Reset Button

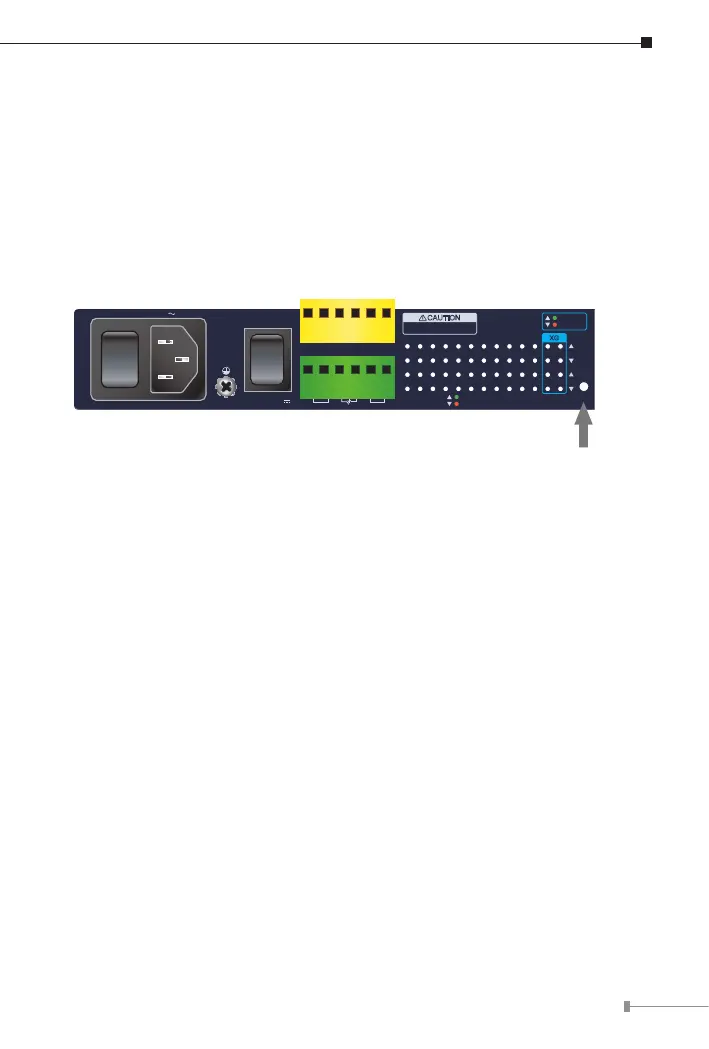

Figure 6-1: MGSW-24160F Reset Button

Planet MGSW-24160F Specifications

General

Console port	RS-232
Compatible memory cards	Not supported
SFP module slots quantity	16
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Private VLAN, Protocol-based VLAN, Port-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-FX, 100BASE-TX, 100BASE-T, 1000BASE-T, 1000BASE-TX
MAC address auto-learning supported	Yes
Throughput	35.6 Mpps
Jumbo frames	10000
MAC address table	16000 entries
Form factor	1U
Product color	Blue
Number of fans	2 fan(s)
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	38 W
Number of multicast groups filtered	255
Switch type	Managed
Switch layer	L2+
DHCP features	DHCP server, DHCP client
Security algorithms	SNMP, SSH, SSL/TLS
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	5 - 95 %
Transmission distance (max)	120 km
Fiber ethernet cabling technology	1000BASE-X
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	200 mm
Width	440 mm
Height	44.5 mm
Weight	3000 g
