Planet MGSW-24160F Quick Installation Guide

8

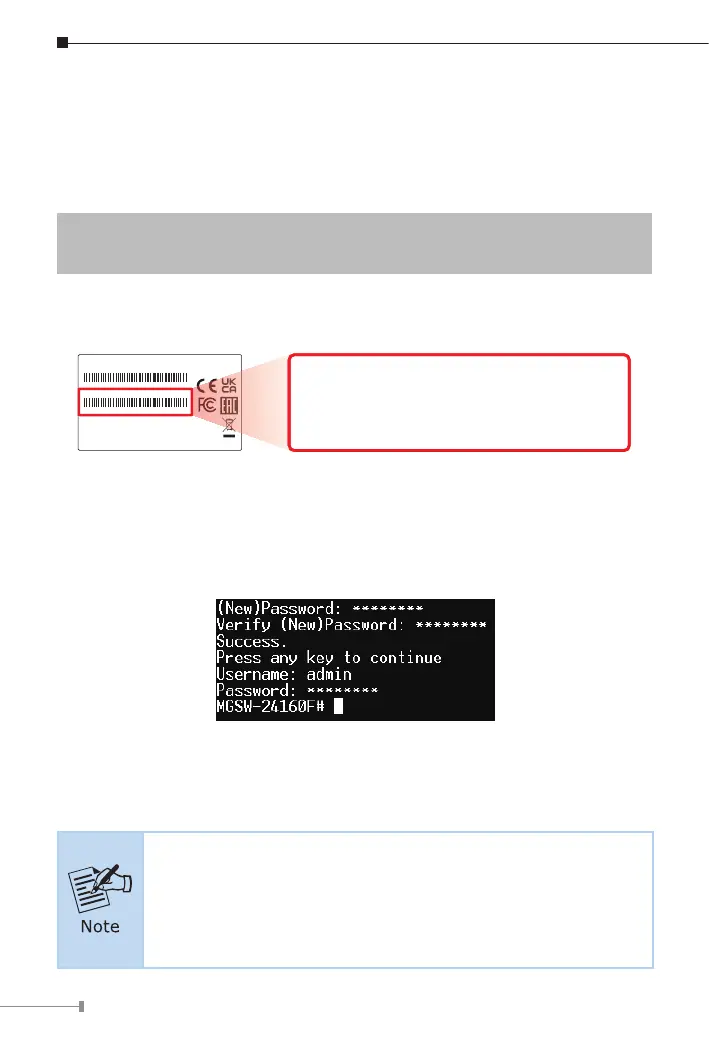

4.1 Logging on to the Console
Once the terminal has been connected to the device, power on the Managed
Metro Switch and the terminal will display “running testing procedures”.
Then, the following message asks for the login user name and password. The
factory default user name and password are shown as follows.
Username:admin
Password: sw + the last 6 characters of the MAC ID in lowercase
Find the MAC ID on your device label. The default password is “sw” followed
bythelastsixlowercasecharactersoftheMACID.
Model/SN:
MAC:
Managed Ethernet Device
PLANET Technology Corp.
Made in Taiwan
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
WARNING: 1) This device must be earthed. 2) For indoor use only!
SN: ZZZZZZYYMNNNNN
MAC:A8F7E0XXXXXX
MAC ID: A8F7E0XXXXXX
Default Password: swxxxxxx
("x" means the last 6 digits of the MAC address.
All characters should be in lowercase.)
Figure 4-3: MAC ID Label
Enter the default username and password, and then set a new password
according to the rule-based prompt and conrm it. Upon success, press
any key to return to the login prompt. Log in with “admin” and the “new
password”toaccessCLI.
Figure 4-4: Create a New Password and Login Again
The user can now enter commands to manage the Switch. For a detailed
description of the commands, please refer to the following chapters.
1. For security reason, please change and memorize the
new password after this first setup.
2. Only accept command in lowercase letter under console
interface.

Planet MGSW-24160F Specifications

General

Console port	RS-232
Compatible memory cards	Not supported
SFP module slots quantity	16
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Private VLAN, Protocol-based VLAN, Port-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-FX, 100BASE-TX, 100BASE-T, 1000BASE-T, 1000BASE-TX
MAC address auto-learning supported	Yes
Throughput	35.6 Mpps
Jumbo frames	10000
MAC address table	16000 entries
Form factor	1U
Product color	Blue
Number of fans	2 fan(s)
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	38 W
Number of multicast groups filtered	255
Switch type	Managed
Switch layer	L2+
DHCP features	DHCP server, DHCP client
Security algorithms	SNMP, SSH, SSL/TLS
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	5 - 95 %
Transmission distance (max)	120 km
Fiber ethernet cabling technology	1000BASE-X
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	200 mm
Width	440 mm
Height	44.5 mm
Weight	3000 g
