4

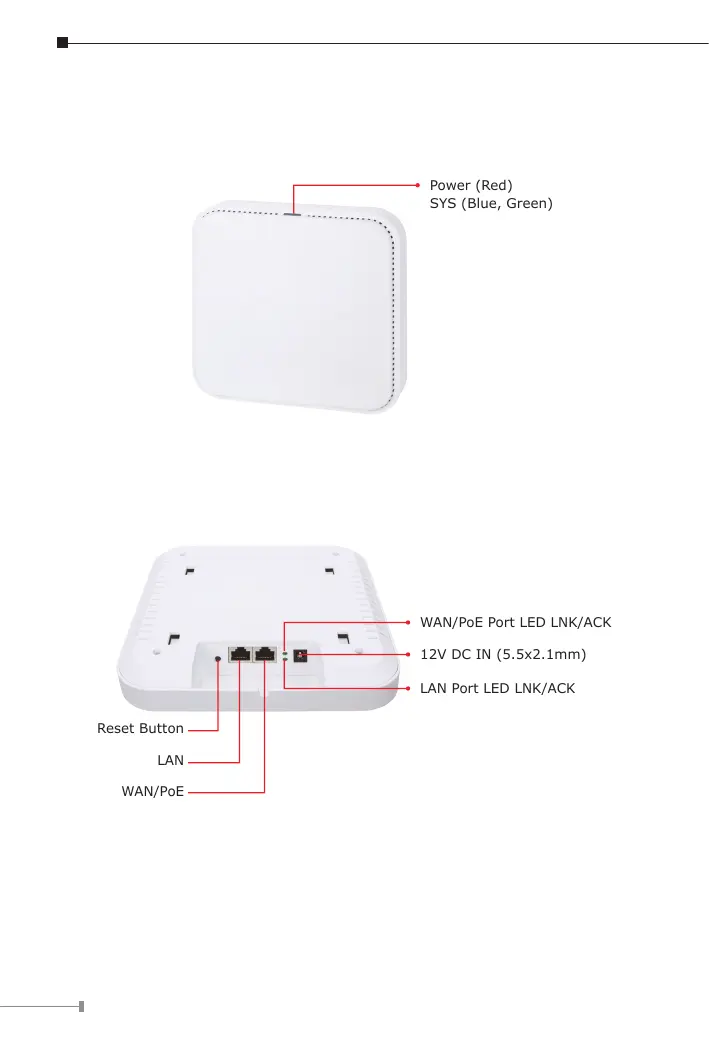

2. Physical Introduction
Front Panel
Power (Red)
SYS (Blue, Green)
Rear Panel
LAN
Reset Button
WAN/PoE
WAN/PoE Port LED LNK/ACK
LAN Port LED LNK/ACK
12V DC IN (5.5x2.1mm)
