Planmeca Ethernet interface 11
INSTALLATION OF THE PLANMECA ETHERNET INTERFACE BOX TO THE PLANMECA PROLINE XC X-RAY
Installation manual
Select
Programs/Planmeca/Didapi Configuration
from your Start menu. From the appearing
window select
Ethernet Interface
.

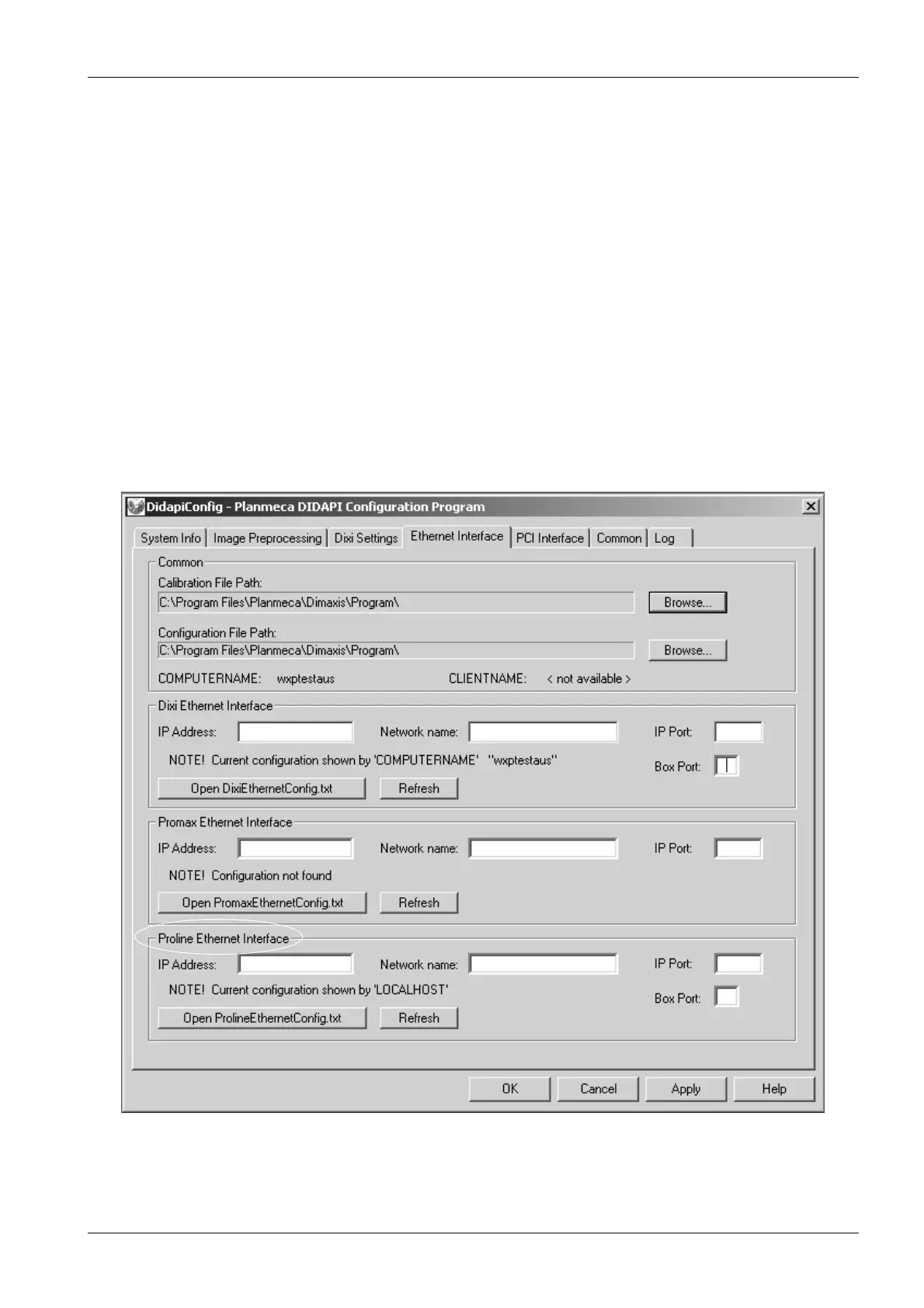

In the
Ethernet Interface
window the Dixi Ethernet Interface, ProMax Ethernet Interface and
Proline Ethernet interface can be configured.
Common:
Select the directory where the configuration and calibration files are located by using the
Browse
button. This directory is selected automatically when Dimaxis is installed in the
default directory.
Configuring the Proline Ethernet Interface:
There are two possibilities to perform the configuration:
1) Enter the IP Address, the IP Port and the Box Port (to which the Proline X-ray is attached)
in the correct fields and click
Apply
. Alternatively you can leave the
IP Address
field empty
and enter the Network name in the
Network name
field. It is not necessary to enter the IP
address as well as the network name; by entering the IP address you will get the network
name, and vice versa. All IP addresses do not necessarily have a network name.
2) Click
Open ProlineEthernetConfig.txt
and enter the information. By pressing the
Refresh
button the performed modifications will be updated in the address fields. Wait until the
download is completed.
