12

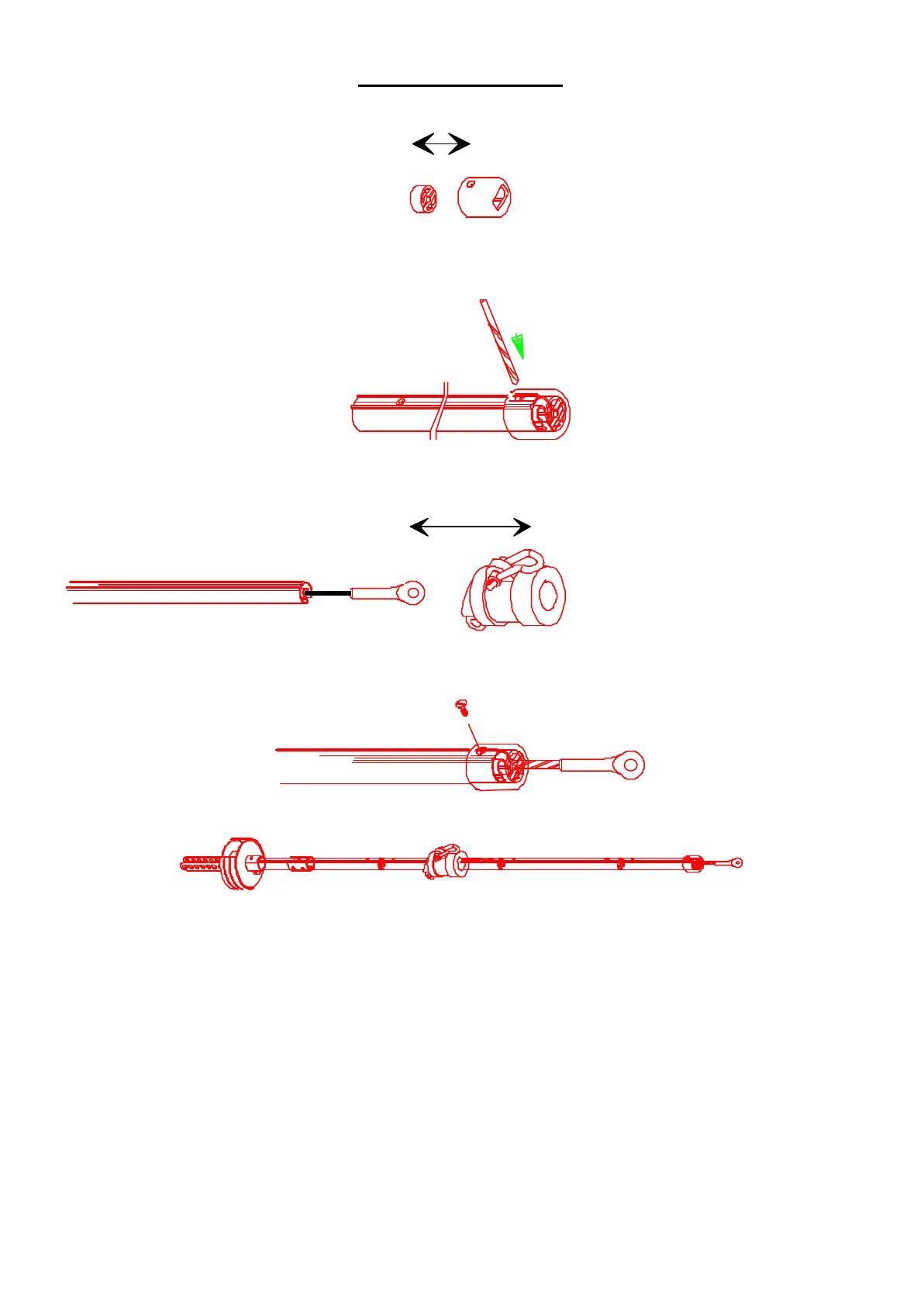

Installing the top end stop
- Slot the second bearing into the top end stop
- Slide the top end stop over the aluminium spar
- Drill a hole (with a 4 mm drill)
IMPORTANT: refer to diagram for the positioning of the top end stop
- Before putting the screw into position, do not forget to slide the halyard swivel into place (ensure that the conical end of the
halyard swivel faces downwards)
- Put the top end stop back into position
- Put some silicone filler into the hole
- Insert and tighten N°10 TF screw (4.8 x 12.7)
- Your jib reefing system is now assembled and can be put into position (hoist it up to the masthead with a halyard)
