ADJUSTING THE REEFING LINE FEEDERS
406-S model

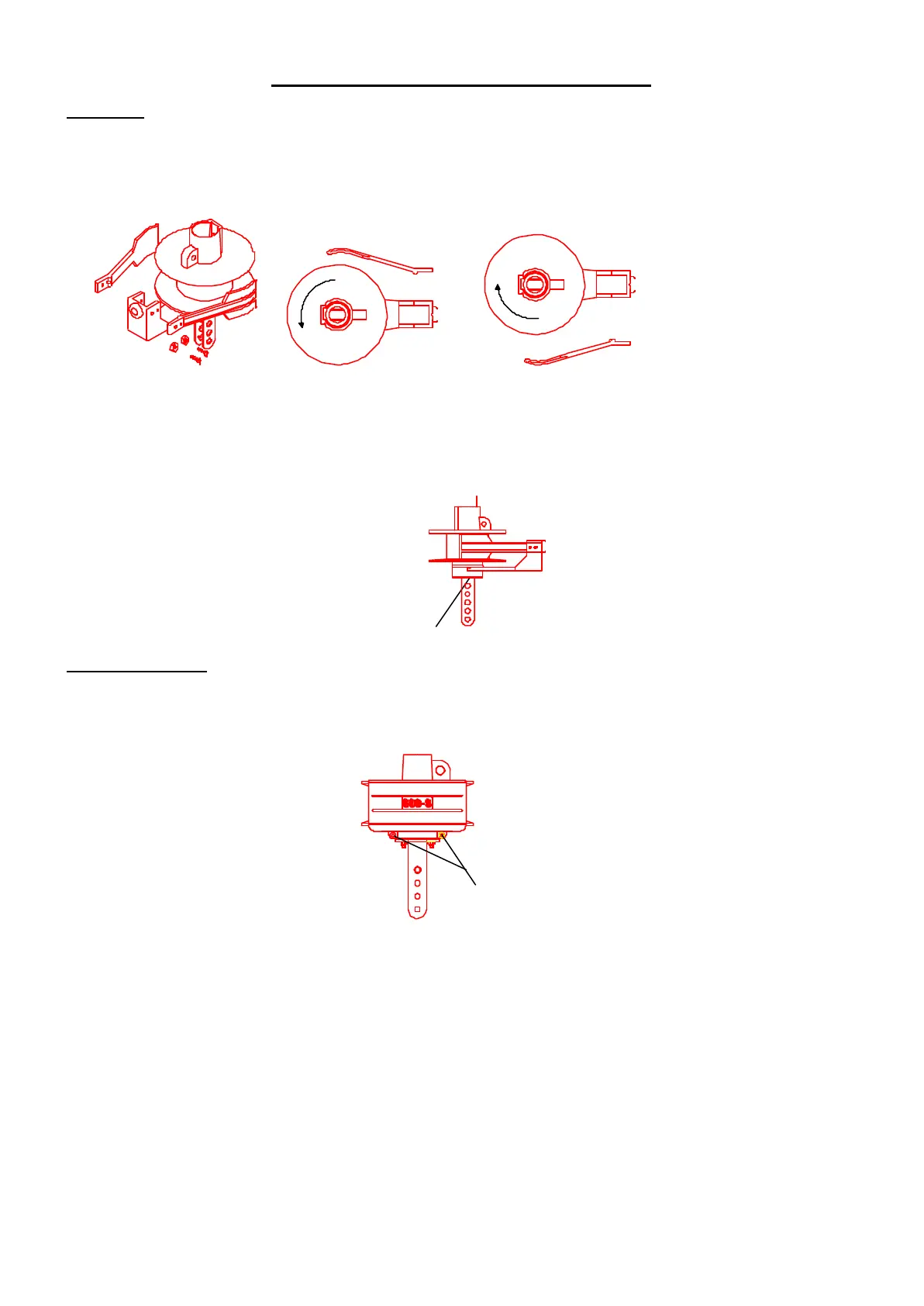

- The reefing line feeder on the 406-S model is assembled either on the right or left hand side of the drum unit, depending on
which direction you prefer to reef.
- To fasten the reefing line feeder, use the two M4 x 12 nuts and bolts (see page 6)
starboard assembly port assembly
- The angle is adjusted by loosening the two screws that hold the chainplate.
screws
608-S & 810-S models
- The angle of reefing line feeders on 608-S & 810-S models is adjusted by loosening the two nuts and bolts (see diagram
below)
nut and bolts
