ENGINE IDENTIFICATION - 3
ENGINE IDENTIFICATION
When ordering service parts or obtaining information,
always give the engine model and the serial number.
This information can be found on the following decal.

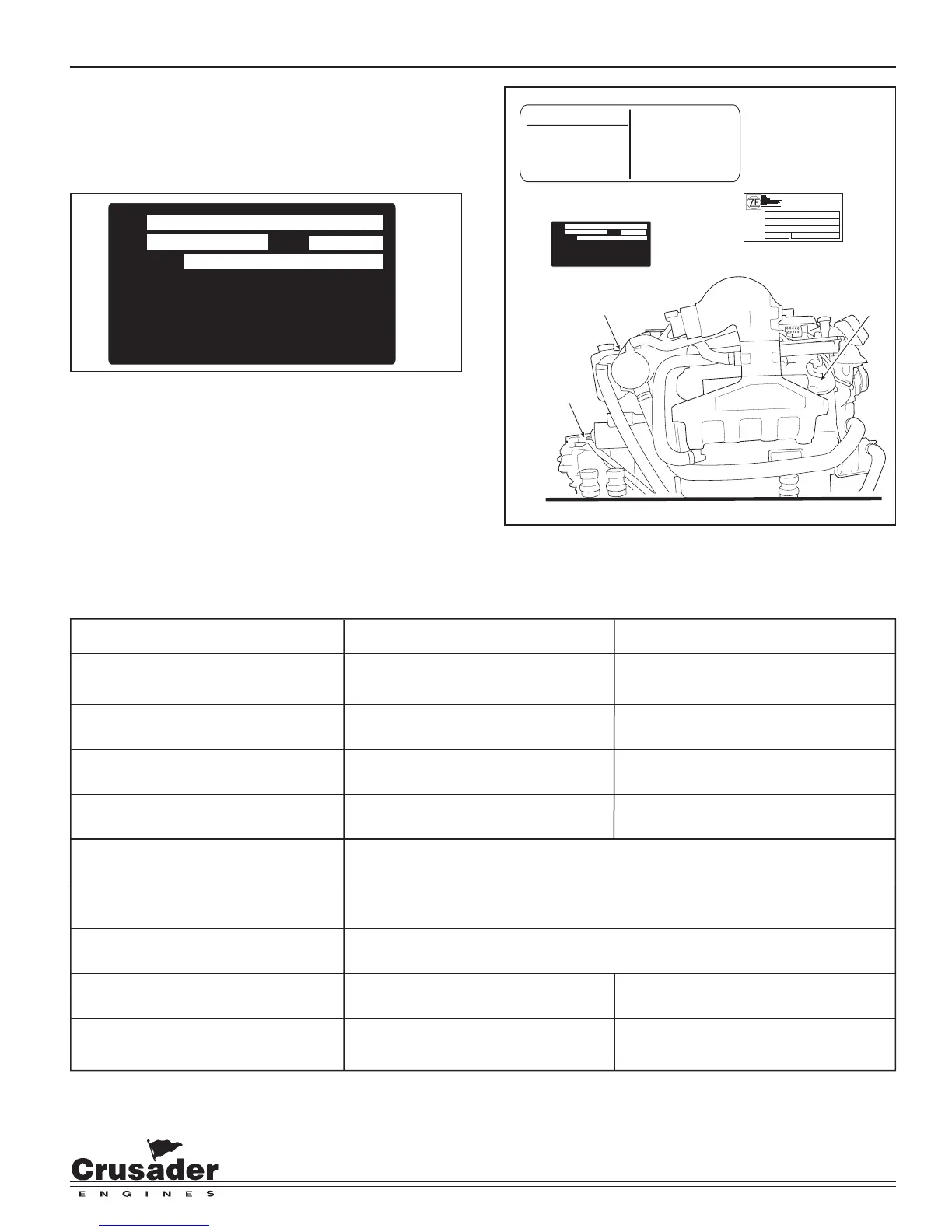

Figure 3-2 Engine Identifi cation Tag Locations (8.1L)
ENGINE SPARK W.O.T.
MODEL PLUG RPM
5.7 MPI AC - MR43LTS 4800-5000
8.1 MPI DENSO / TJ14R-P15 4200-4600
8.1 MPI (HO) DENSO / TJ14R-P15 4400-5000
Fuel Oct Reg............................................MIN 87 AVG
Eng Oil Type..............Above 50 F - SAE 15W-40 "SJ"
Below 50 F - SAE 5W-40 "SJ"
Trans Fluid Type...........................................Dexron III
Firing Order............................LH 1-8-4-3-6-5-7-2 (5.7)
LH 1-8-7-2-6-5-4-3 (8.1)
Spark Plug Gap......................................0.045 in. (5.7)
0.060 in. (8.1)
Idle RPM....................................650 (Non-adjustable)
Initial Timing........................................Non-adjustable
MAKE
MODEL SERIAL
FIRING ORDER
THIS ENGINE CONFORMS TO ALL APPLICABLE U.S.
GOVERNMENT STANDARDS FOR MARINE ENGINES
IN EFFECT AT DATE OF MANUFACTURE.
LITTLE MOUNTAIN, SC 29075
2
1
1. ENGINE SPECIFICATION DECAL
2. ENGINE IDENTIFICATION DECAL
3. TRANSMISSION
IDENTIFICATION PLATE
3
MODEL
MARINE
ZF HURTH MARINE
ARCO ITALY
RATIO I
RATIO II
S/N-P/N
MAKE
MODEL SERIAL
FIRING ORDER
THIS ENGINE CONFORMS TO ALL APPLICABLE U.S.
GOVERNMENT STANDARDS FOR MARINE ENGINES
IN EFFECT AT DATE OF MANUFACTURE.
LITTLE MOUNTAIN, SC 29075
Figure 3-1 Engine Identifi cation Decal
PORT STARBOARD
Engine Model Number:
Serial Number(s):
Gear Model Number:
Serial Number(s):
Boat Make:
Boat Model:
Hull Serial Number:
Propeller Size:
Ignition Key Number:
OWNER IDENTIFICATION AND REGISTRATION
INFORMATION
We suggest that you record the following information
for quick reference when ordering parts or requesting
service or warranty.
