ENGINE MAINTENANCE - 11
Transmission Fluid
CAUTION
Crusader Marine Engines uses marine transmissions
supplied by several manufacturers. The
maintenance requirements can be different between
these manufacturers. It is important that you refer
to the operation and maintenance manual supplied
by the transmission manufacturer before you attempt
to perform maintenance on your own. If no
maintenance manual is available, Crusader Marine
Engines recommends that you contact your dealer
service department for any required maintenance or
service instructions.
1. Remove the dipstick by turning the T-handle
counterclockwise. Observe the fl uid level.
Replace the dipstick and tighten securely.
2. Operate the engine until the engine and the
transmission reach operating temperature.
3. Stop the engine and quickly check the fl uid level
to minimize the drain-back from the oil cooler.
Remove the dipstick by turning the T-handle
counterclockwise. Observe the fl uid level.
4. The fl uid level should be at the “FULL” or “MAX”
mark. If low, add the specifi ed fl uid through the
dipstick tube. Repeat checking procedures as
required until the fl uid level is at the “FULL” or
“MAX” mark.
5. Replace the dipstick and tighten securely.
WARNING
Do not attempt to remove the transmission dipstick
while the engine is running. Hot transmission fl uid
could be sprayed from the dipstick hole.

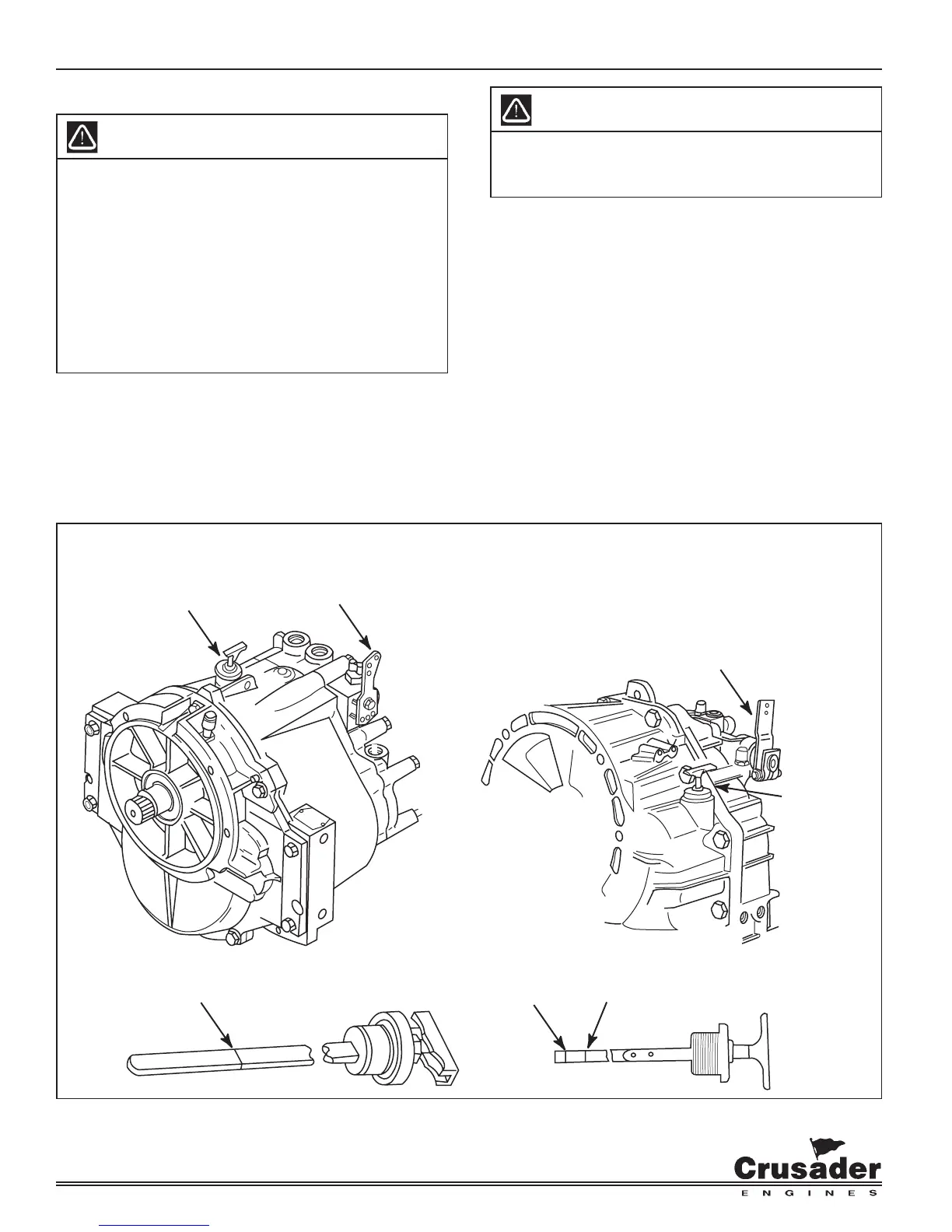

Figure 11-2 Transmission Dipstick and Location
MIN.
FULL MARK
DIPSTICK
SHIFT LEVER
VELVET DRIVE TRANSMISSION
HURTH TRANSMISSION
SHIFT LEVER
DIPSTICK
MAX
