DRIVE BELT REPLACEMENT (6.0L)
6.0L SERPENTINE BELT #: R066027
1. Note the routing of the belt before removing.
2. Using a 15 mm box wrench or socket, turn the
belt tensioner to relieve the tension on the belt.
Slide the belt off of the pulleys. Release the
tensioner slowly to prevent the tensioner
from snapping against its stop, and possibly
causing damage to the tensioner.
3. Slide the new belt onto the pulleys using the
same routing as noted prior to removal.
4. Compress the belt tensioner, and slide the belt
over the tensioner pulley. Release the tension
slowly to tension the belt.

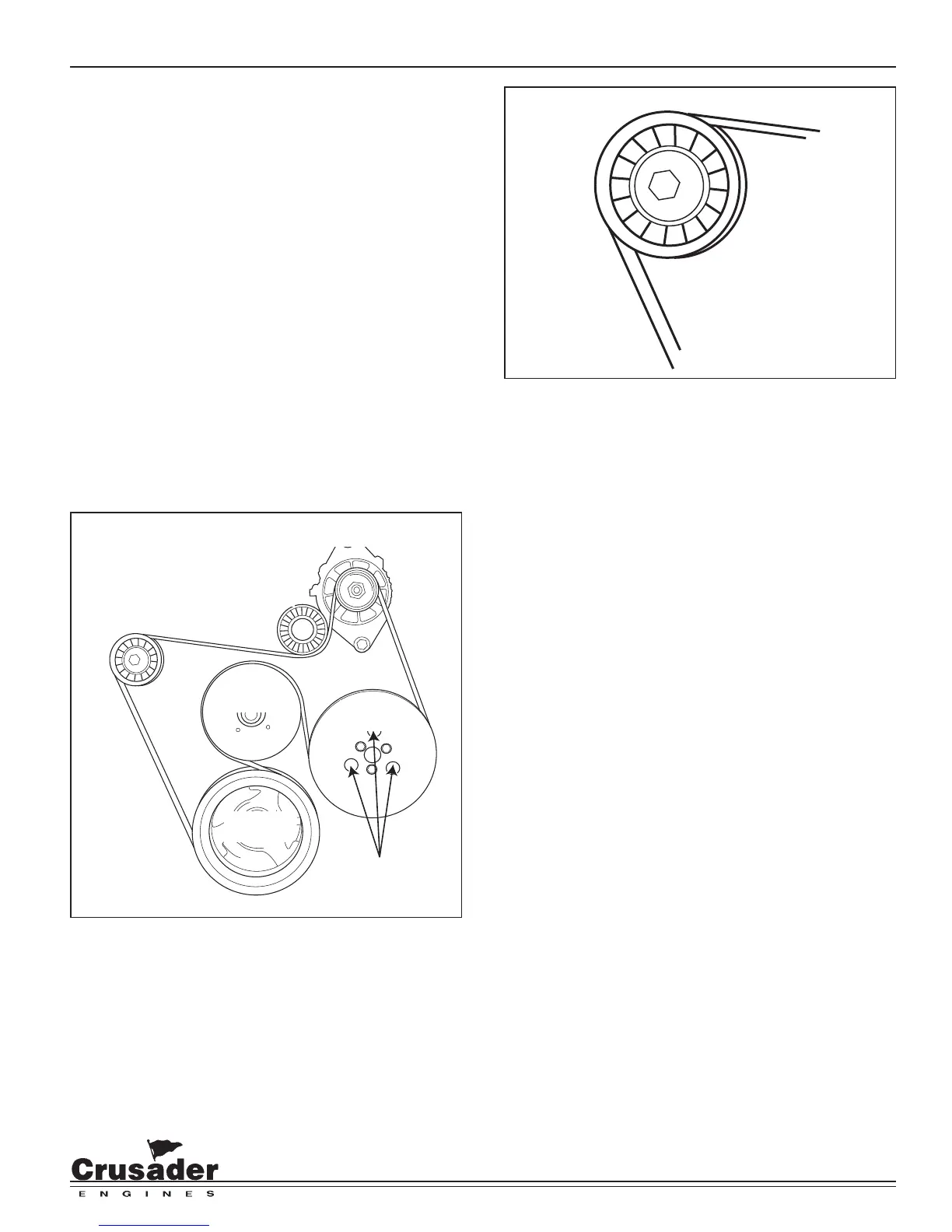

Figure 11-22 Belt Tensioner (6.0L)
6.0L ACCESSORY DRIVE BELT
The Crusader 6.0L engine uses a single serpentine belt
to drive the engine water circulation pump, sea-water
pump and the alternator.
Figure 11-21 6.0L Accessory Drive Belt Confi guration
Belt
Tensioner
Circulation
Pump
Raw Water
Pump
Crankshaft
Pulley
Alternator
Idler
A
SERVICING RAW WATER PUMP IMPELLER
(6.0L)
6.0L IMPELLER KIT #: RP061022
The raw water pump impeller should be serviced every
50 hours, or once a year, whichever occurs fi rst. See
Maintenance Schedule.
Locations “A” (Figure 11-21) are access holes in order
to loosen the raw water pump housing attaching bolts.
The bolts are secured in the pump by O-rings, and will
not fall out during removal.
