WATER FLOW DIAGRAMS - 15

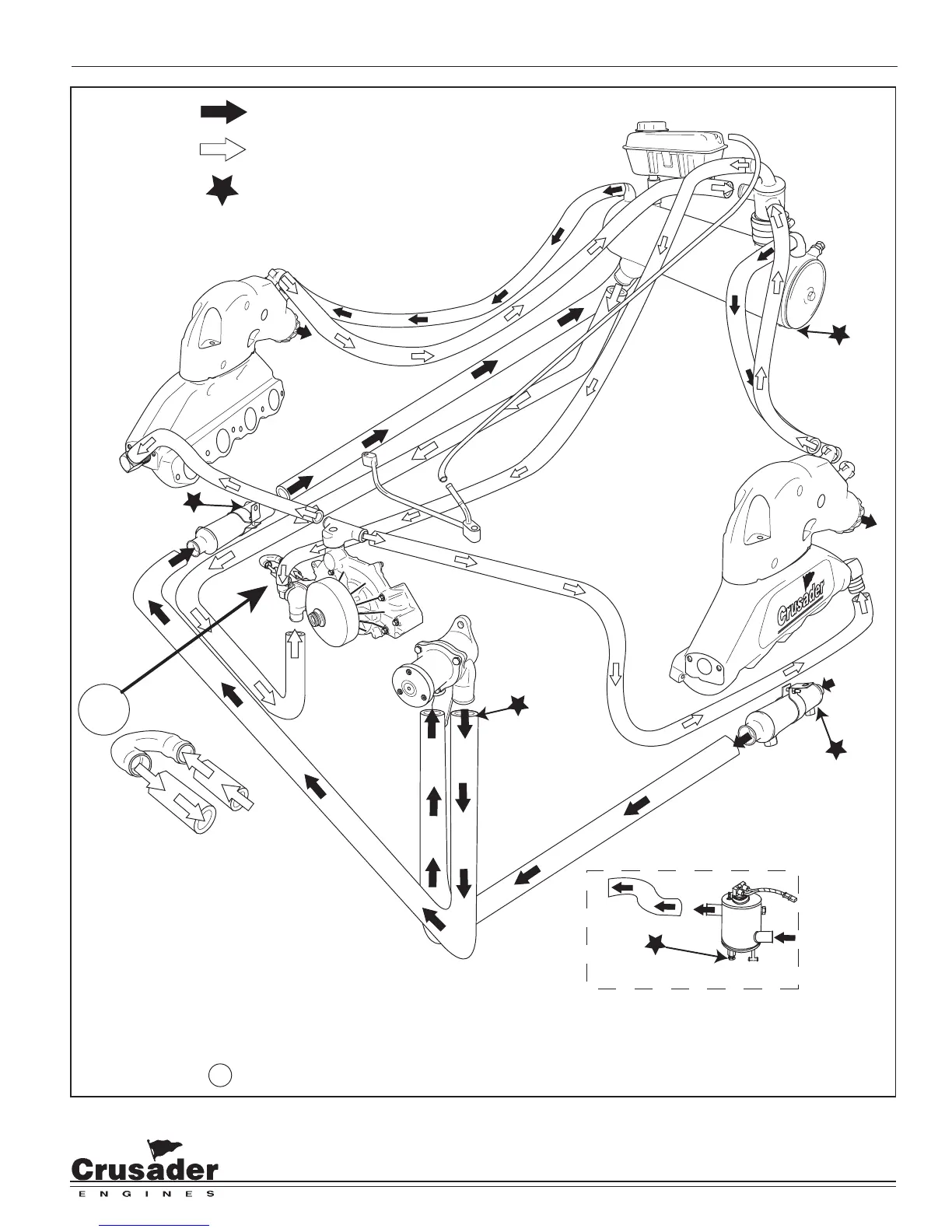

Figure 15-2 Fresh-Water Cooling System 6.0L (Typical)
= RAW WATER FLOW
NOTE: Location is the location in order to hook up a hot water accessory.
IMPORTANT: Accessory (i.e. heater, hot water tank) Hook Up
= FRESH WATER FLOW
A
A
= 5 Drain Locations
3
4
2
1
Pressure
Return
Remove Hoses from
raw water pump and
drain hoses
completely
Returnless Fuel System
5
