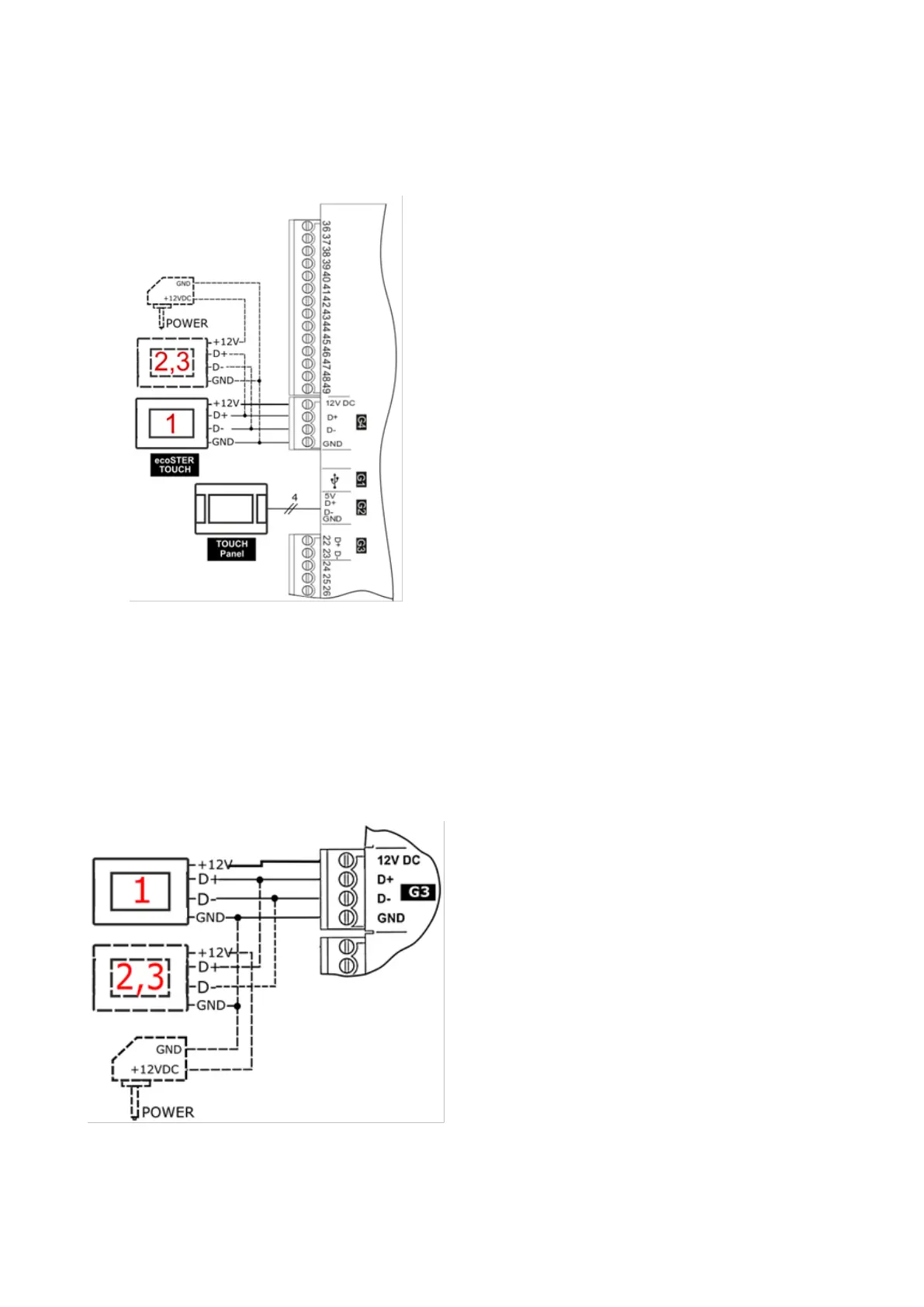

If the main controller is equipped with
TOUCH control panel (colored with a touch
panel), only one room panel can be supplied
directly from the controller module (socket
G4). Panels 2 and 3 have to be supplied by
the additional power adapter 12 VDC / min.
0.5 A.
Connection with ecoMAX910R1,
ecoMAX920P1:
If the main controller is equipped with a
standard control panel (version with a knob)
or TOUCH control panel (colored with a touch
panel), only one room panels can be supplied
directly from the controller module (socket
G3). Two panel has to be supplied by the
additional power adapter 12 VDC / min. 0.5
A.
