Operating instructions SG 160 7 Fusion Preparation
19

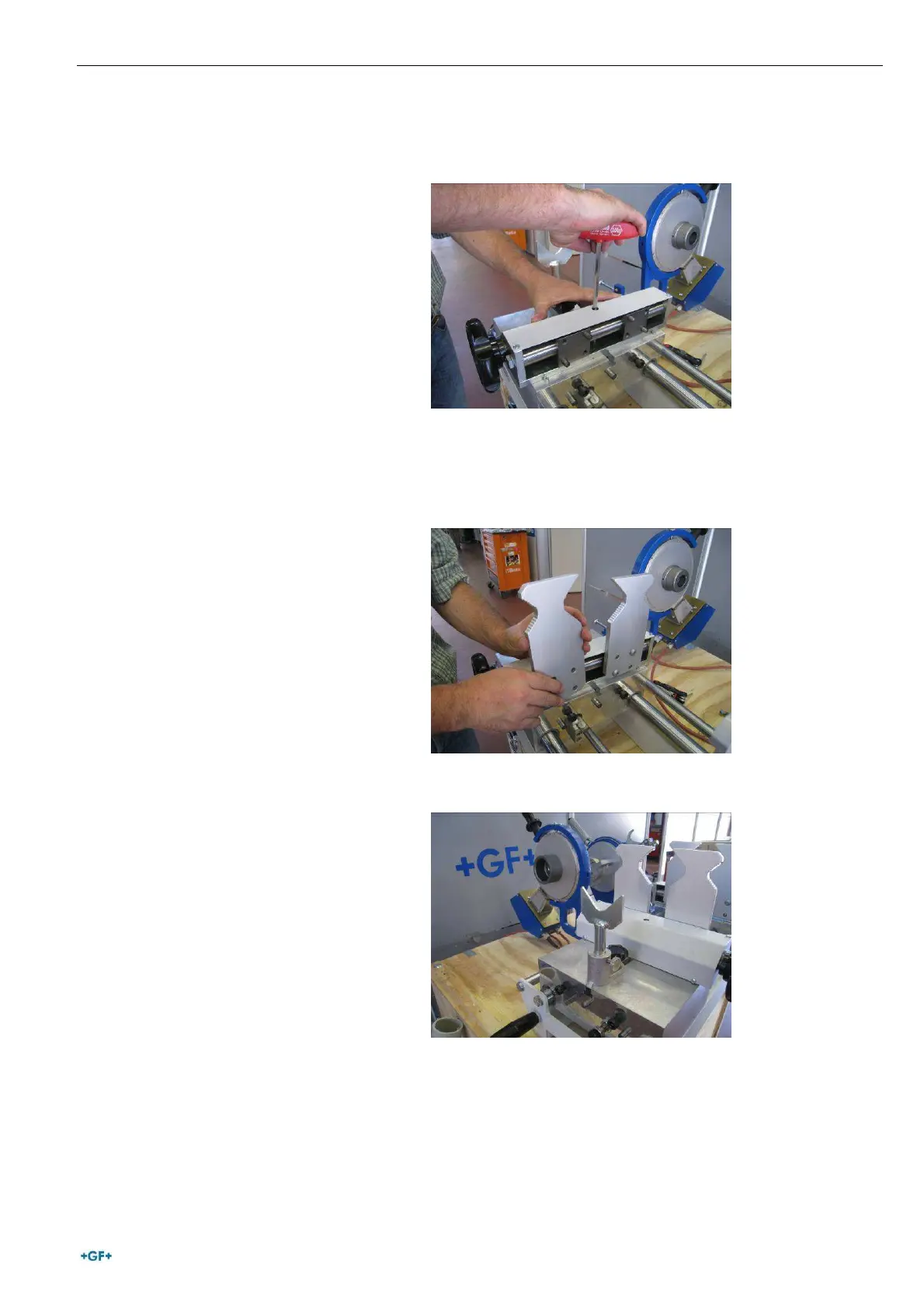

Move the clamping device on the slide to the stop screws and tighten with the
special wrench.
Mount clamping jaws. These are marked with the respective dimension ranges.
Type 1 30-50/50-90
Type 2 16-30/90-125
For additional support, Y-supports are available.
When joining long pipe pieces, it is recommended that the outer basic
clamping plates are used.
