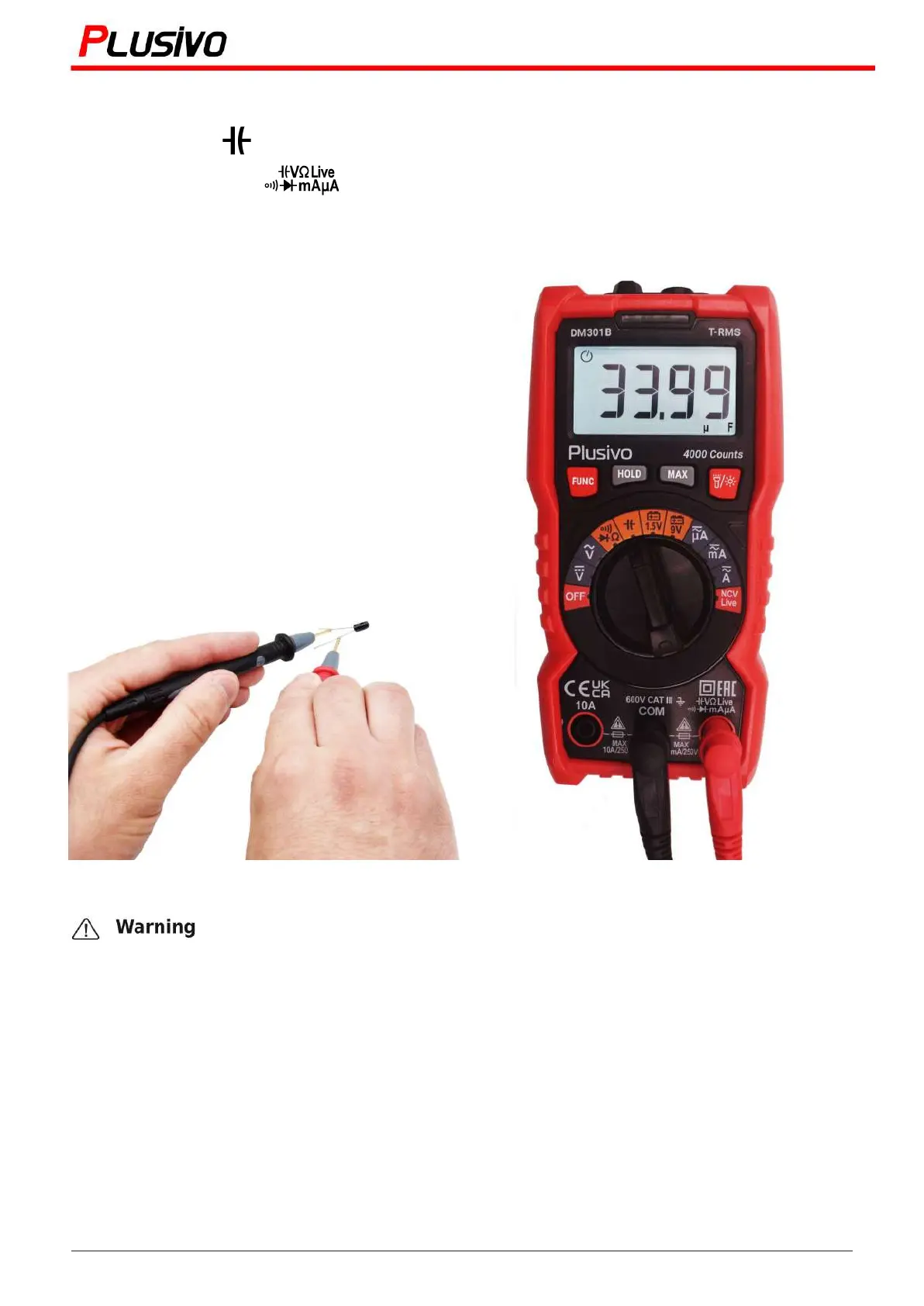

7.7 Capacitance Measurement
1. Turn the knob to " " and switch to the capacitance measurement function with the "FUNC" key.
2. Insert the red probe in " " and black probe in "COM" sockets.
3. Connect the probe to the measured circuit capacitance and measure the resistance.
4. Read the measurement results.
When measuring capacitance on the line, disconnect the power supply and discharge all the
high-voltage capacitors. Otherwise, the instrument may be damaged and may be struck by
electric shock.
17
