Introduction
In this guide, you are going to learn how to measure DC voltage and AC voltage, DC current,
resistance, diodes, capacitance and continuity test using DM301B 4000 Counts T-RMS Digital
Multmeter. We are going to study some basic concepts like Ohm's Law and Kirchhoff's Law. Please note
that product color may slightly vary due to photographic lighting sources or your monitor settings.
1. Overview

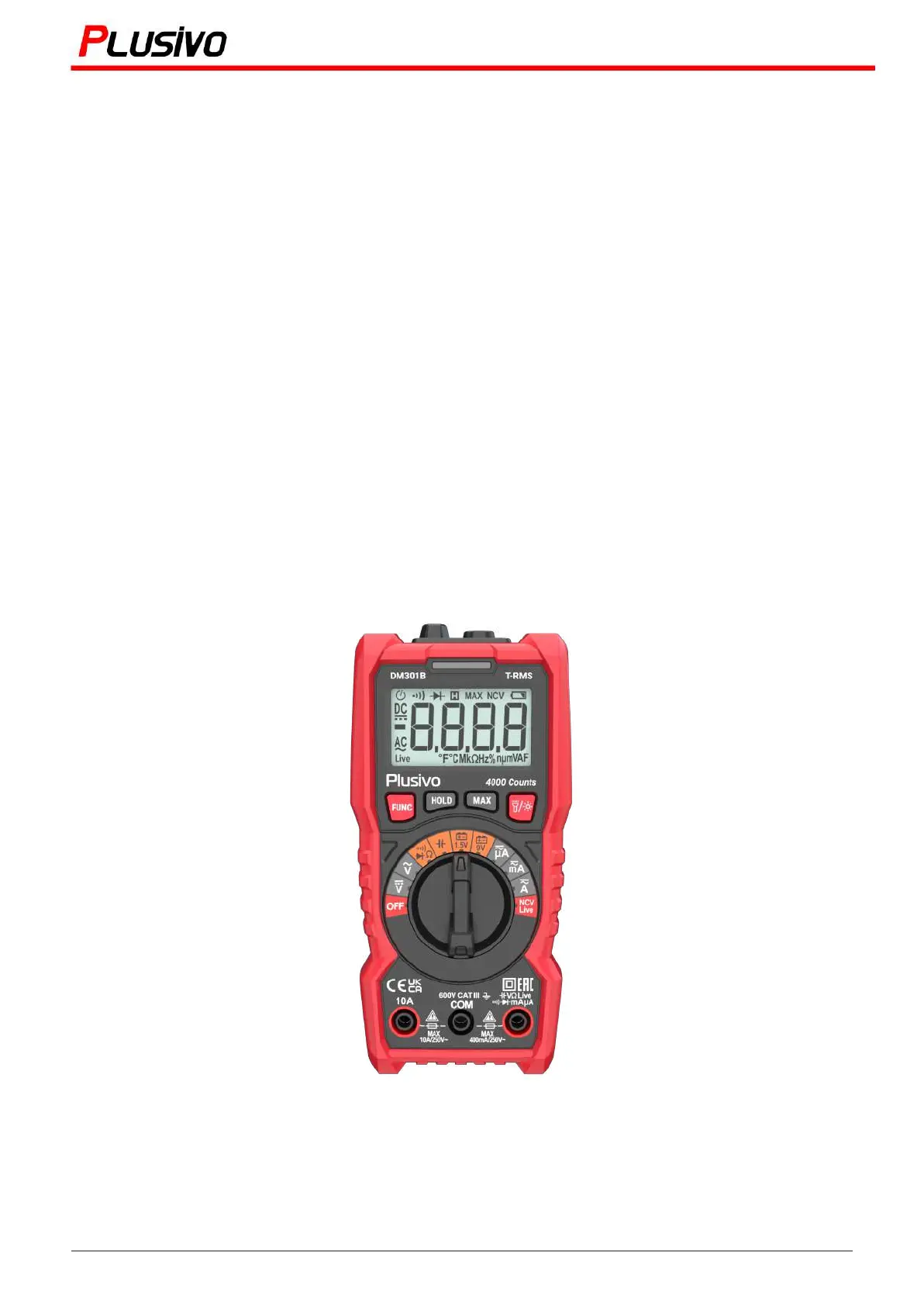

This True RMS high performance digital multimeter can be used to measure DC voltage and AC
voltage, AC and DC current, resistance, diodes and do continuity tests. It can also be used to assess the
battery quality, has NCV and live test functions. The new display and function layout show clearer and
better user experience. It is the best choice for professional electricians, enthusiasts and families.
