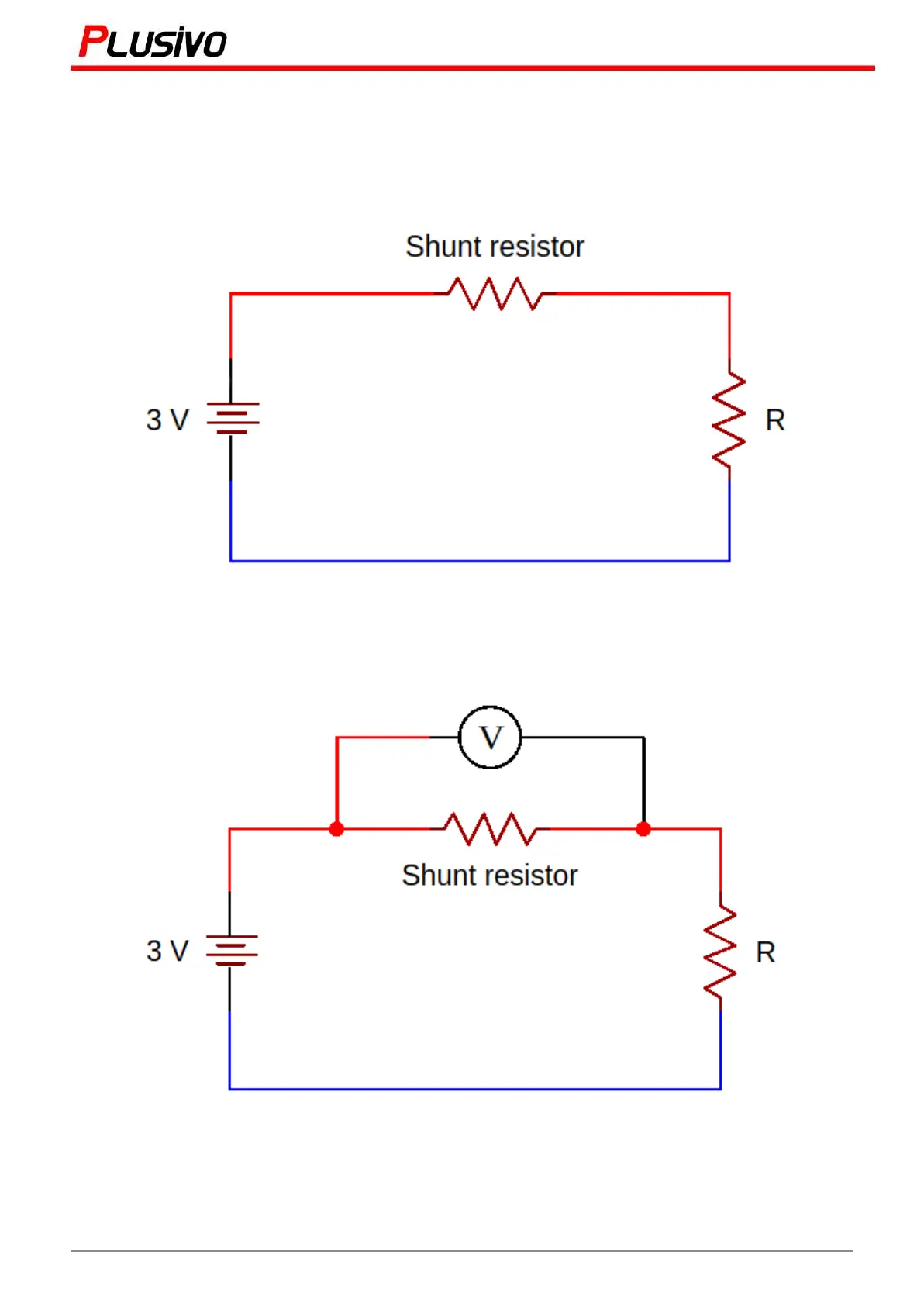

8.4 Shunt Resistor
It is a way to measure current through a bath in the circuit using a small value resistor, we cut the
circuit and connect it again using the shunt resistor. In most cases, it should be a high power resistor to
handle the current passing through it.
So depending on ohm’s law “ ”, we have a shunt resistor, and we have a current passing
𝑉 = 𝐼 · 𝑅
through it, so the voltage will be generated around it. And then we will measure this voltage using the
multimeter, this way we have converted the current into voltage.
31
Mastering the Art of Measurement (DM301B Digital Multimeter) r.01 www.plusivo.com
