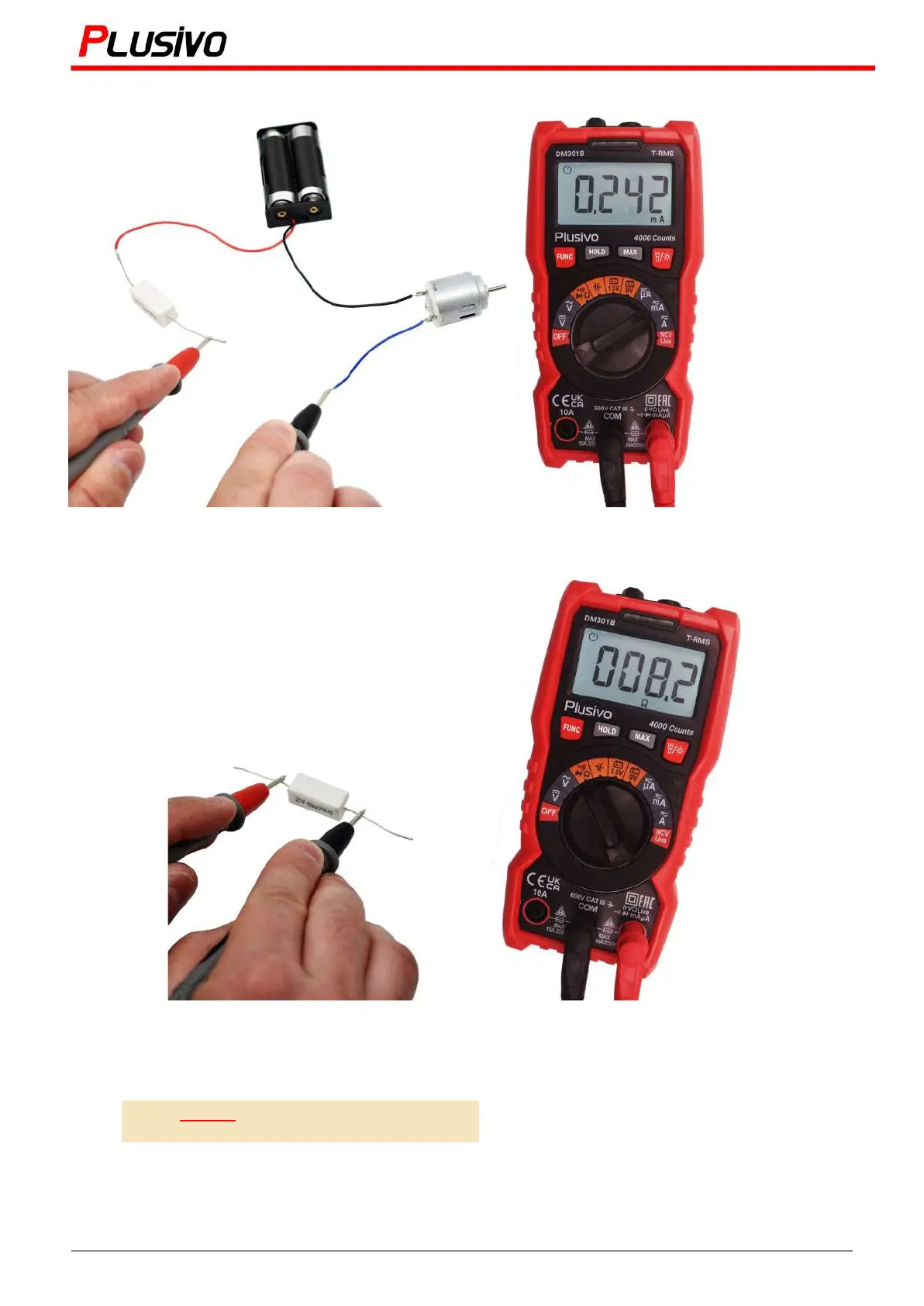

Now, let us measure the current using the multimeter to compare it with our calculations.
The measured current in this figure is 242 mA.
But there is a tolerance for the resistor, let us measure the resistor.
The measured resistance in this figure is 8.2 Ω.
If we calculate it again using Ohm’s law ” “
𝑉 = 𝐼 · 𝑅
1. 88 𝑉 = 𝐼 · 8. 2 Ω
𝐼 =
1.88 𝑉
8.2 Ω
= 0. 229 𝐴 = 229 𝑚𝐴
So, we can count on this way to measure the current, 229 mA is near the value 242 mA.
