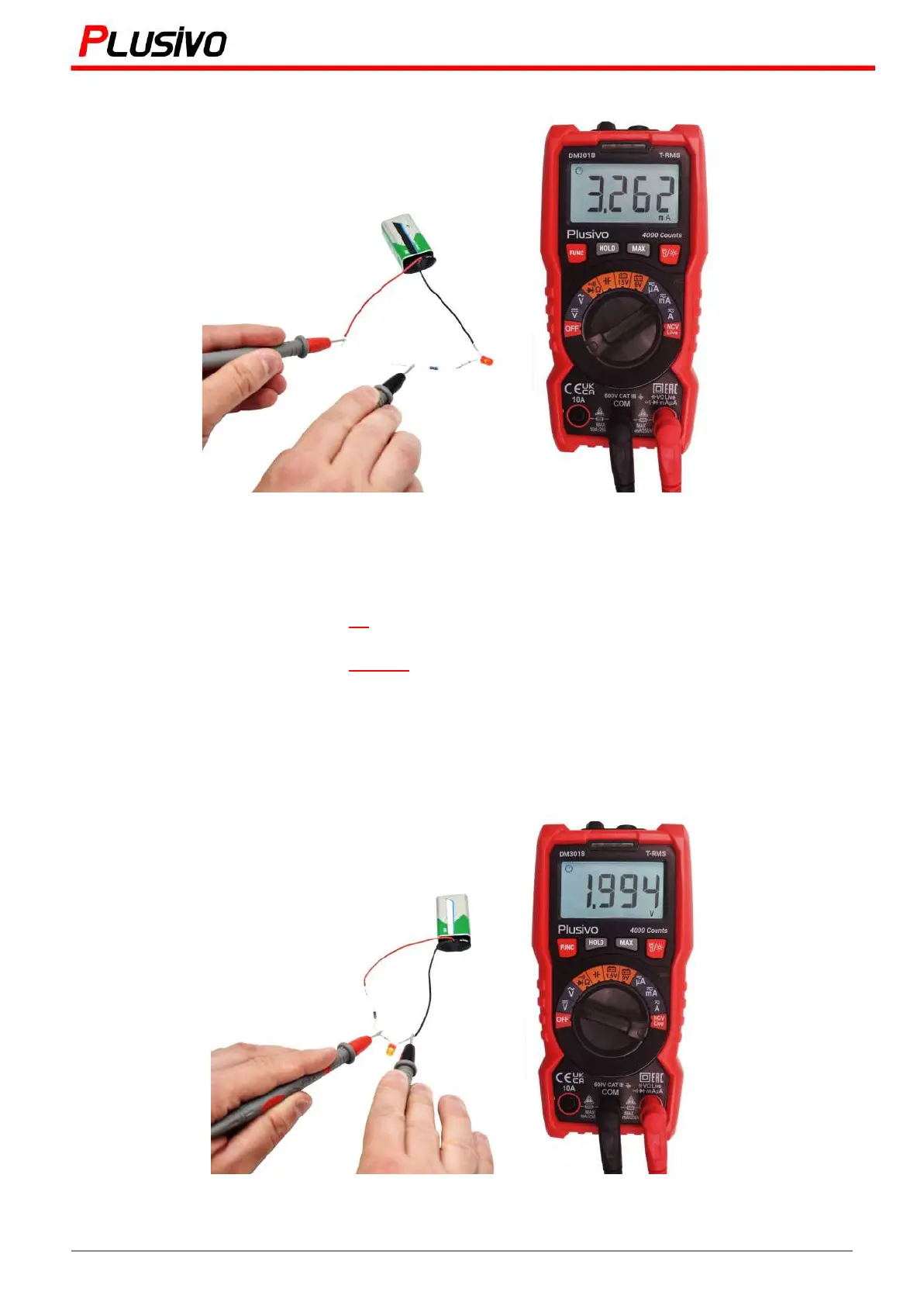

And if we measure the current in this circuit.
The measured current in this figure is 3.262 mA.
Now, let us calculate the value of the resistor. We have a 9 V battery, the voltage on the LED is 1.894 V, so
the voltage on the resistor is:
9 𝑉 − 1. 894 𝑉 = 7. 106 𝑉
Now, let us use Ohm’s law:
𝑅 =
𝑉
𝐼
𝑅 =
7.106 𝑉
20 𝑚𝐴
= 355. 3 Ω
And the closest standard value is 330 Ω.
Now, let us build the circuit again using a 330 Ω resistor and measure the forward voltage again and the
current.
The measured voltage in this figure is 1.994 V DC
