What the Eagle™ Records •
••
• 51
happen if the negative VARs accumulated during the periods of
leading power factor mostly cancelled the positive VARs during
the periods of lagging power factor.

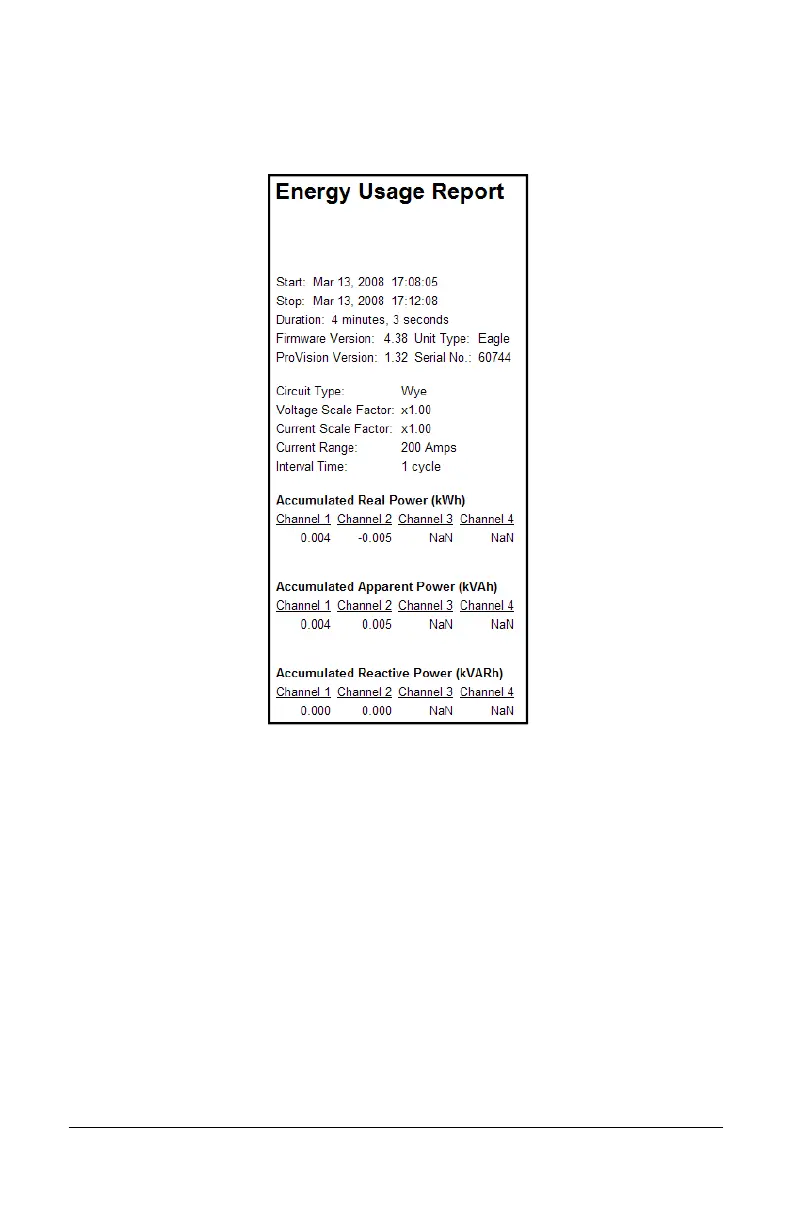

Figure 16 – Energy Usage Report
Typical Settings and Suggested Uses
There are no settings for the energy usage report. This report can
be used to measure energy consumption of a monitored load, or
accumulated reactive significant change power in power factor
studies. A revenue meter that does not total negative power, or
does not include the effects of harmonics, may show readings that
differ from this report.
