Manual
– 10 –
Figure 24
Figure 25
Figure 26
Figure 23

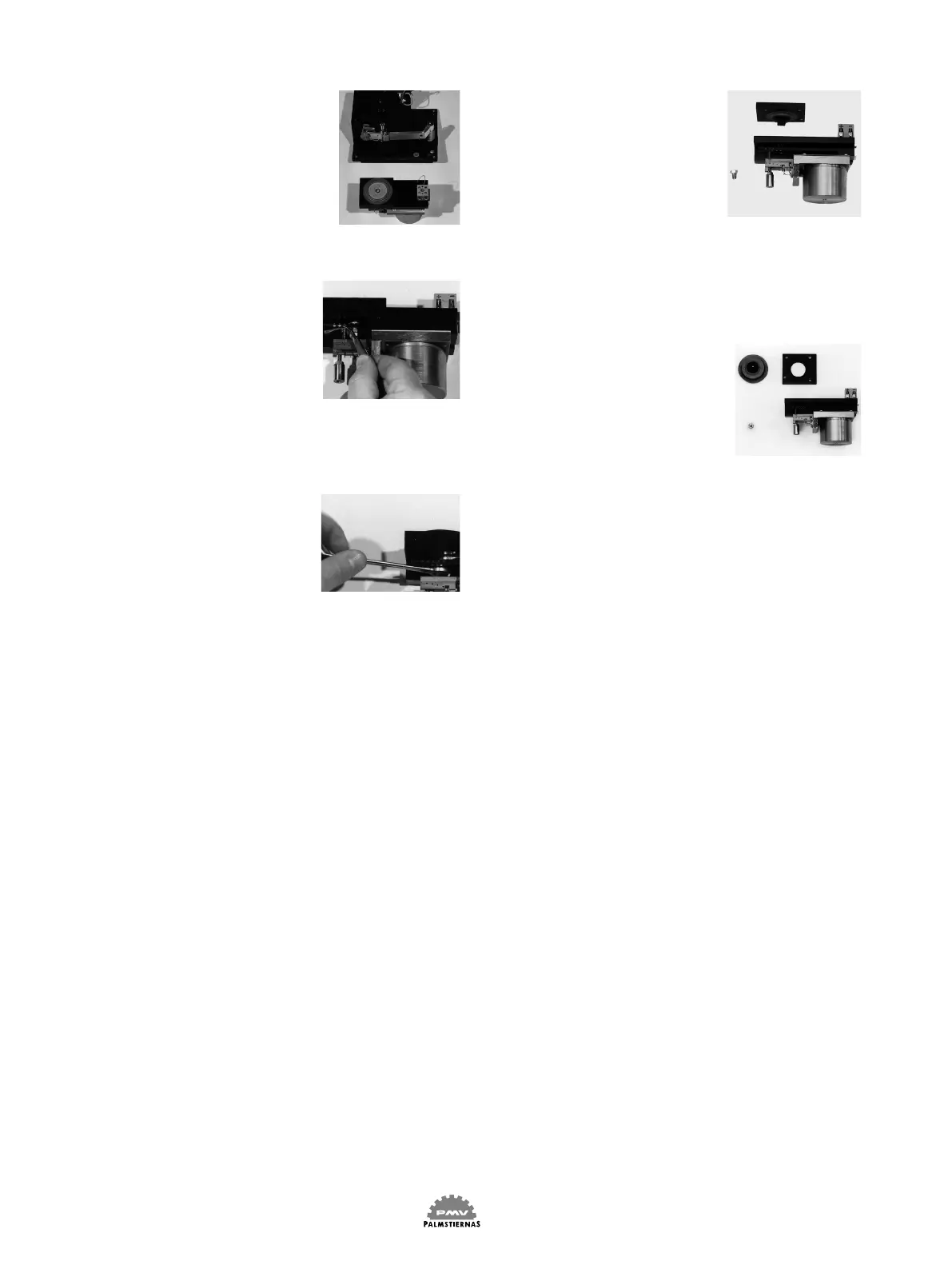

Carefully lift out the E/P
converter.
Fig 23
Remove the gain supres-
sion spring by using a pair of
tweezers.
Fig 24
Loosen the screw and be care-
ful to use a holding-up tool for
the retainer to avoid tension
on the diaphragms.
Fig 25
Pull the diaphragm-piston
assembly upwards apart from
the middle section.
Fig 27
The middle section can
now be separated from the
body.
Figure 27
Replace the broken diaphragm and assembly the
positioner step by step following the opposite order
in which you now have disassembled it.
Be sure to check that all O-rings are in good condition
and in the proper places.
