MAINTENANCE
Track Maintenance
n
Track Alignment
Periodically check that the track
is centered and running evenly
on the slide rails. Misalignment
will cause excessive wear to the
track and slide rail.
1. S afely support the rear of the
machine with the track off
the ground.
2. S tart the engine and apply a
small amount of throttle until
the track turns slowly at least
five complete revolutions.
Stop the engine and let the
track come to a stop (do not
apply brakes).

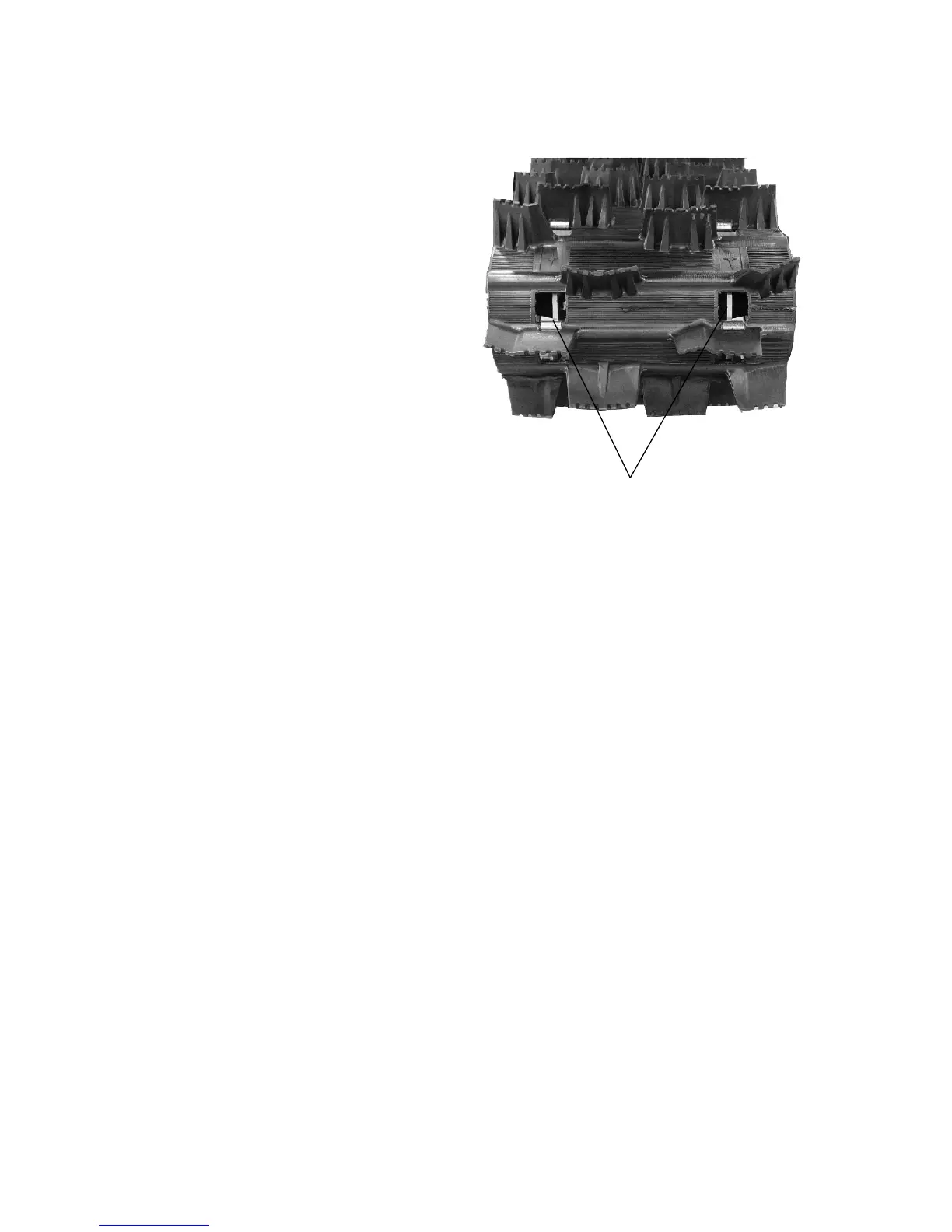

3. Inspect track alignment by looking through the track window to
make sure the rails (1) are evenly spaced on each side. If the track
runs to the l eft, loosen left locknut and tighten the left adjusting
bolt. If the track runs to the right, loosen right locknut and tighten
the right adjusting bolt.
4. After adjustments are complete, tighten locknuts and torque idler
shaft bolts to 35 ft. lbs. (47.5 Nm).
5. Repeat steps 2 and 3 to verify proper alignment.
