FINAL DRIVE
7.2
SPECIAL TOOLS
PART NUMBER TOOL
DESCRIPTION
2872608 Roller Pin
Removal Tool
8700226 CV Boot Clamp
Pliers
WHEEL, HUB, AND SPINDLE
TORQUE T
ABLE
Model Item Specifica-
tion
RANGER 2x4 & 4x4
Front Wheel
Nuts
35 Ft. Lbs.
(47 Nm)
Rear Wheel
Nuts
35 Ft. Lbs.
(47 Nm)
Front Spindle
Nut
40 Ft. Lbs.
(55 Nm)
Rear Hub
Retaining
Nut
110 Ft. Lbs.
(150 Nm)
RANGER 6x6
Front Wheel
Nuts
35 Ft. Lbs.
(47 Nm)
Middle
Wheel Nut
35 Ft. Lbs.
(47 Nm)
Rear Wheel
Nuts
35 Ft. Lbs.
(47 Nm)
Front Spindle
Nut
40 Ft. Lbs
(55 Nm)
Mid Hub Re-
taining Nut
110 Ft. Lbs.
(150 Nm)
Rear Hub
Retaining
Nut
110 Ft. Lbs.
(150 Nm)
Refer to exploded views and text for torque values of
other fasteners
CAUTION: Locking nuts, and bolts with pre--applied
locking agent should be replaced if removed. The
self-locking properties of the nut or bolt are reduced
or destroyed during removal.

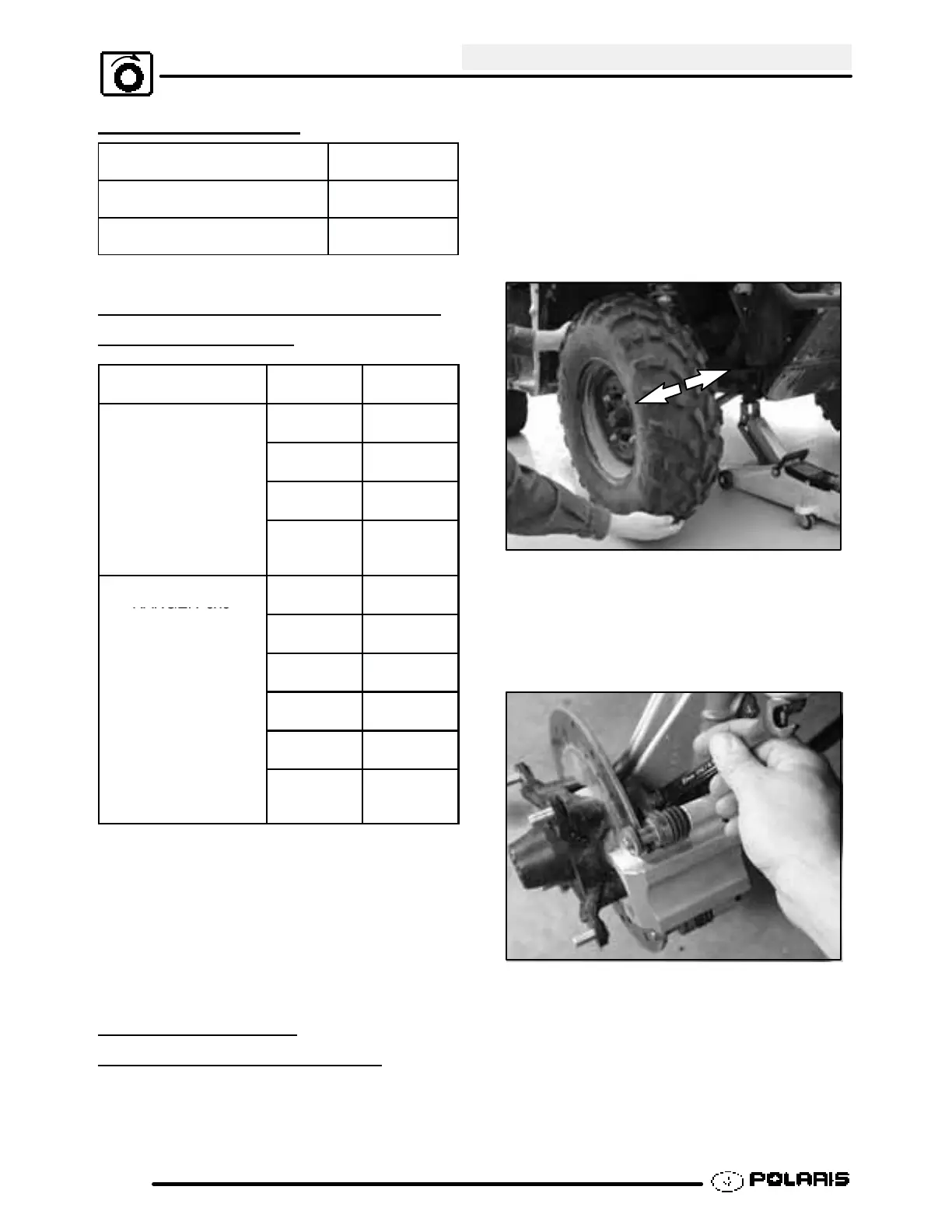

2X4 FRONT HUB
REMOV
AL/INSPECTION
1. Elevate front end and safely support machine
under footrest / frame area.
CAUTION: Serious injury may result if machine tips
or falls. Be sure machine is secure before beginning
this service procedure. Wear eye protection when
removing bearings and seals.
2. Check bearings for side play by grasping the tire /
wheel firmly and checking for movement. Grasp
the top and bottom of the tire. The tire should
rotate smoothly without binding or rough spots.
3. Remove wheel nuts and wheel.
4. Remove the two brake caliper attaching bolts.
CAUTION: Do not hang the caliper by the brake
line. Use wire to hang the caliper to prevent
possible damage to the brake line.
5. Remove hub cap, cotter pin, front spindle nut, and
washer .
6. Remove the spindle from the backside of the strut.
Rotate each bearing by hand and check for
smooth rotation. Visually inspect bearing for
moisture, dirt, or corrosion. Replace bearing if
moisture, dirt, corrosion, or roughness is evident.
To Next Page
