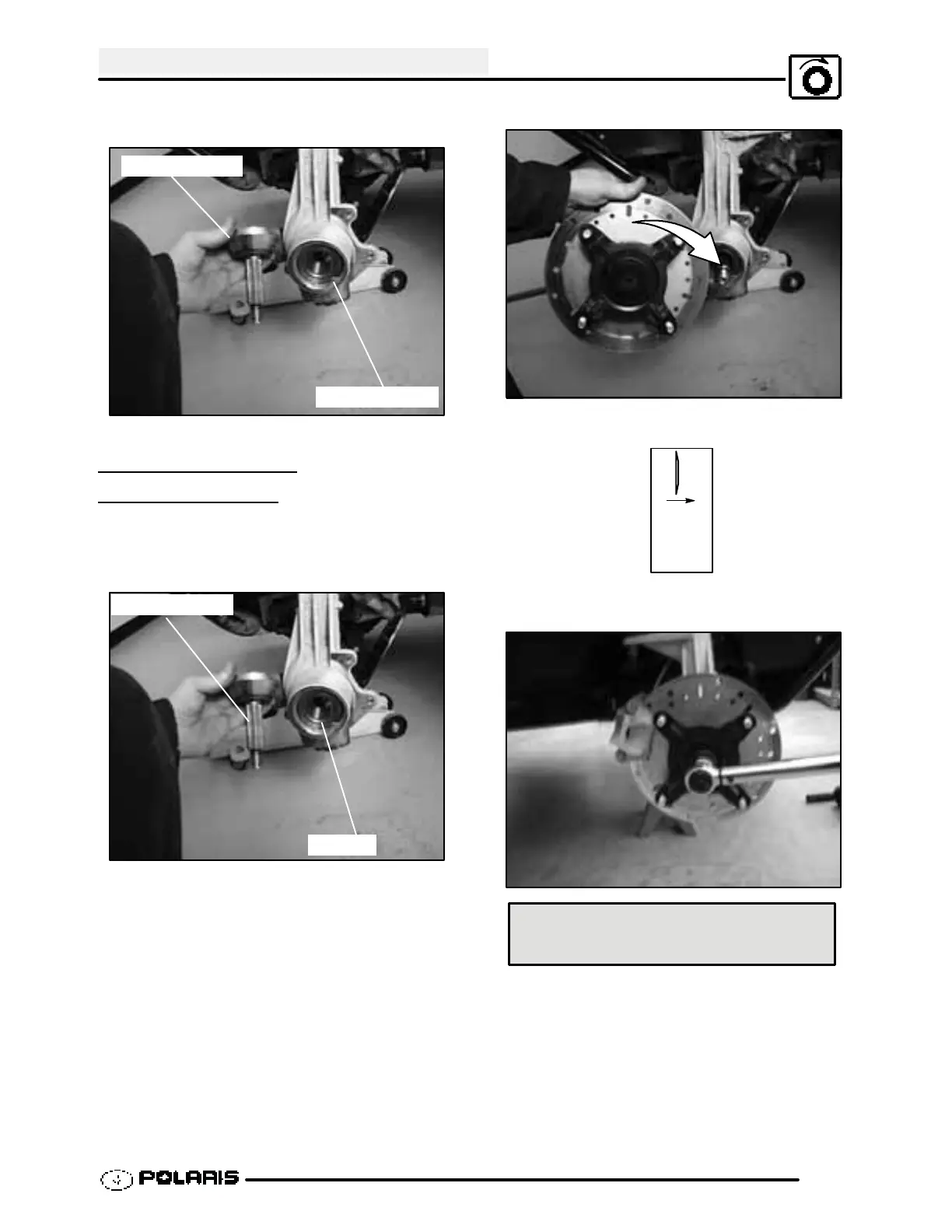

FINAL DRIVE
7.3
Inspect the spindle splines for wear.
Inspect Spindle
Inspect Bearing
2X4 FRONT HUB
INSTALLA
TION
1. Inspect the hubstrut bearing surface for wear or
damage.
2. Apply grease to spindle.
Grease Spindle
Bearing
3. Install spindle through the backside of the hubstrut.
Install the hub onto the spindle.
4. Apply grease to washer and install with domed side
out.
Out
Cone
W asher
5. Install spindle nut and tighten to specification.
2x4Spindle Nut Torque:
40 ft. lbs. (55.0 Nm)
6. Install a new cotter pin. Tighten nut slightly if
necessary to align cotter pin holes.
7. Rotate wheel and check for smooth operation.
Bend both ends of cotter pin around end of
spindle in different directions.
8. Install hub cap.
9. Rotate hub. It should rotate smoothly without
binding or rough spots or side play.
