FINAL DRIVE
7.4
10. IInstall brake caliper using new bolts. Tighten
bolts to specified torque.
Brake Caliper Bolt Torque
18 ft. lbs. (24 Nm)
CAUTION: New bolts have a pre-applied locking
agent which is destroyed upon removal. Always use
new brake caliper mounting bolts upon assembly.
11. Install wheel and wheel nuts and tighten evenly in
a cross pattern to 35 ft.lbs. (47 Nm).
Flange Nuts:
Flat side against wheel
35 ft.lbs.
(47 Nm)

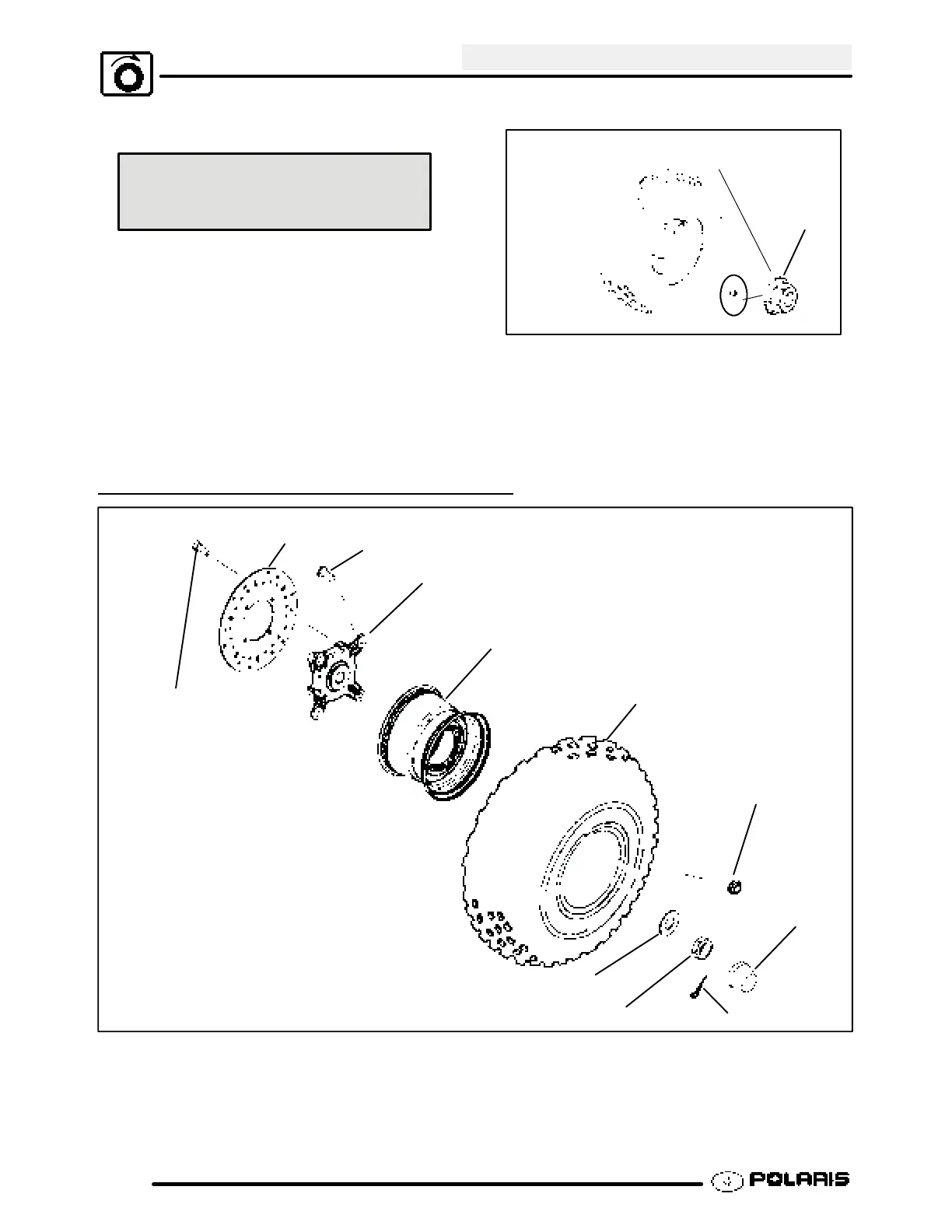

2X4 FRONT HUB EXPLODED VIEW
Disc Brake
Front Hub
Rim
Tire
Wheel Nut
Dust Cover
Slotted Nut
W asher
Cotter Pin
35 ft. lbs. (47 Nm)
40 ft. lbs. (55.0 Nm)
18 ft. lbs. (24.9 Nm)
Use new bolts with
pre-applied
locking agent.
Stud
