Polaris Alpha User Manual

28
Use section 6-2 method to configure Alpha into RTK rover.

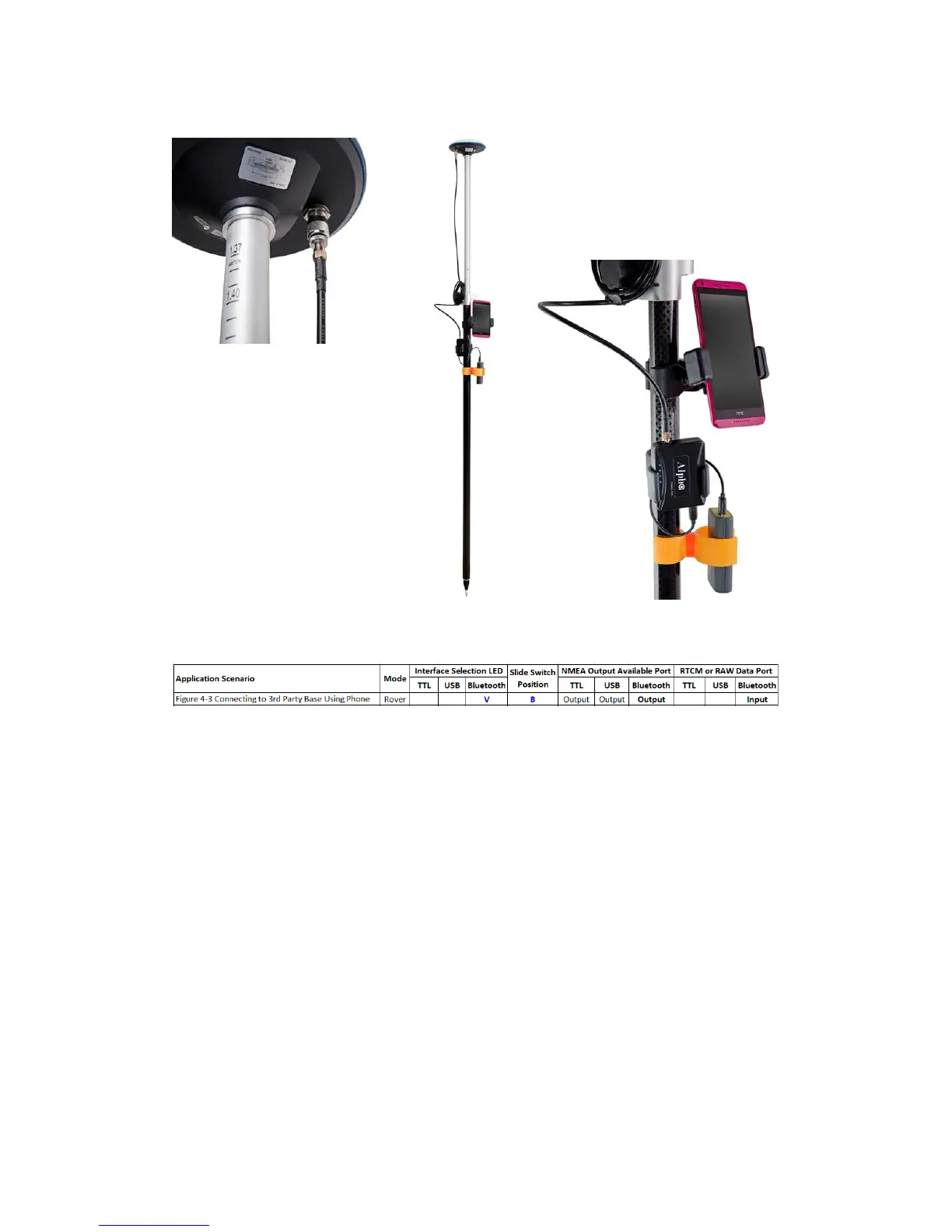

Figure 6-14
Once Alpha RTK rover setting is configured, use below steps to prepare for connecting to 3
rd
party RTK
base station:
1. Mount the rover antenna on a range pole or tripod.
2. Mount Alpha RTK receiver, power bank, and smartphone to range pole or tripod using
holders.
3. Use antenna cable to connect antenna and Alpha.
4. Use USB cable to connect power bank and Alpha.
5. Turn on power bank to supply 5V to power Alpha
6. Turn on Bluetooth of Android phone, scan for “BT SPP xxxxxx” device, select to pair.

Polaris Alpha Specifications

General

Frequency Range	20 MHz to 6 GHz
Instantaneous Bandwidth	40 MHz
Dynamic Range	80 dB
Power Supply	12V DC
Interface	Ethernet
