Polaris Alpha User Manual

27

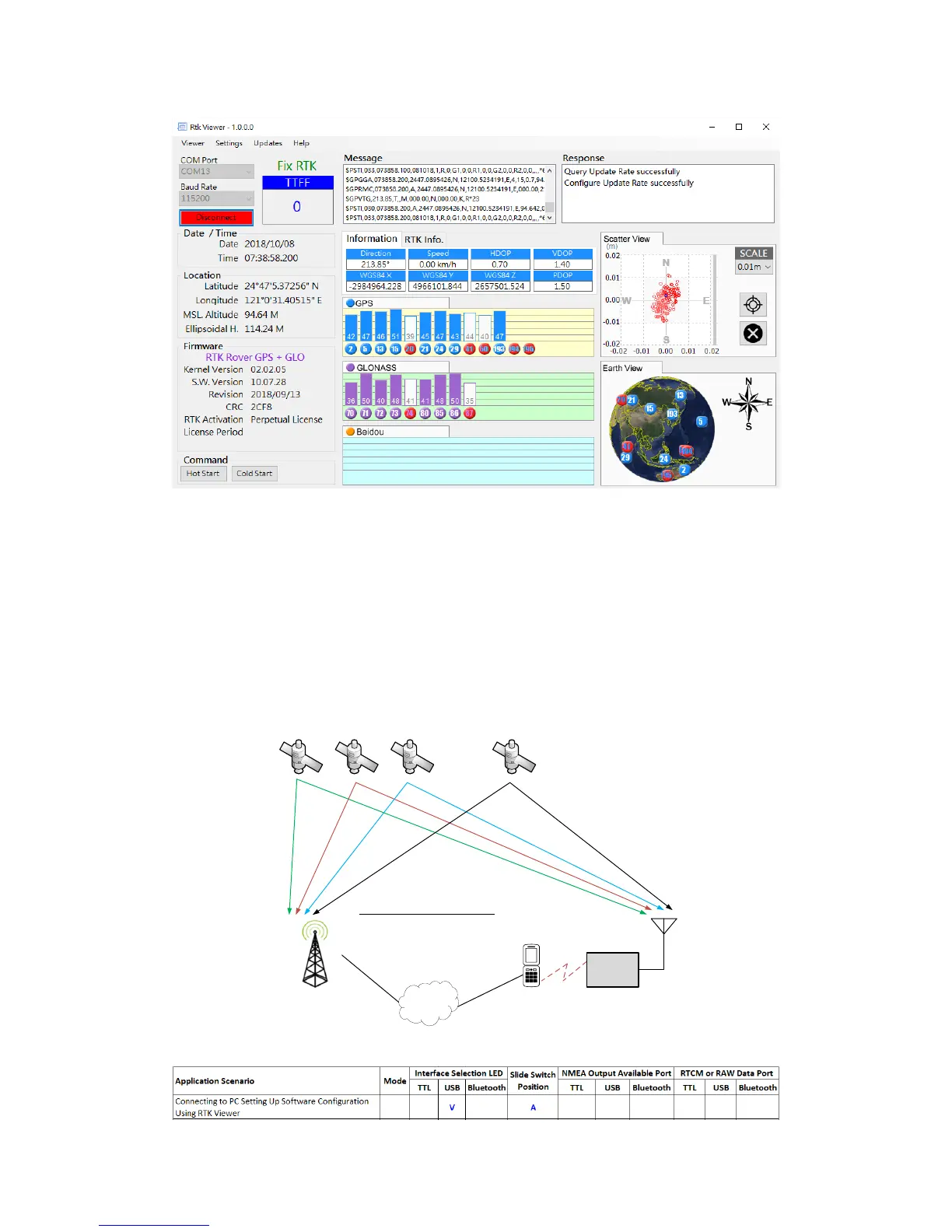

Figure 6-12
With the right side Scatter View on RTK Viewer, “Set Origin” button can be clicked to re-center, the
“Scale” pull down menu allows adjusting scatter plot viewing range.
On left hand side bottom, clicking “Cold Start” button restarts the receiver from scratch; clicking “Hot
Start” button restarts the receiver without clearing internal data.
6-4-2 Connecting to 3
rd
Party Base Using Phone
Internet
Bluetooth
Rover
BT mode / switch on B
3
rd
Party RTK Base
with NTRIP caster
NTRIP
client
3G/4G/LTE
Setup for GIS Data Collection
RTK
antenna
. . .
Alpha RTK
Figure 6-13

Polaris Alpha Specifications

General

Frequency Range	20 MHz to 6 GHz
Instantaneous Bandwidth	40 MHz
Dynamic Range	80 dB
Power Supply	12V DC
Interface	Ethernet
