Transmission Lubrication - Models with Fill Plug
Scrambler 500 4x4, Xplorer 400, Xplorer 4x4, Magnum
500, Magnum 325 4x4, Magnum 325 2x4
The transmission fillplug is located on the right side of the machine
behind the propshaft shield or footwell.
The transmission lubricant level should be checked every six
monthsor1000 miles(1600 km),whicheverco mesfirst. Transmis-
sion oil should be changed annually. With the ATV on a level sur-

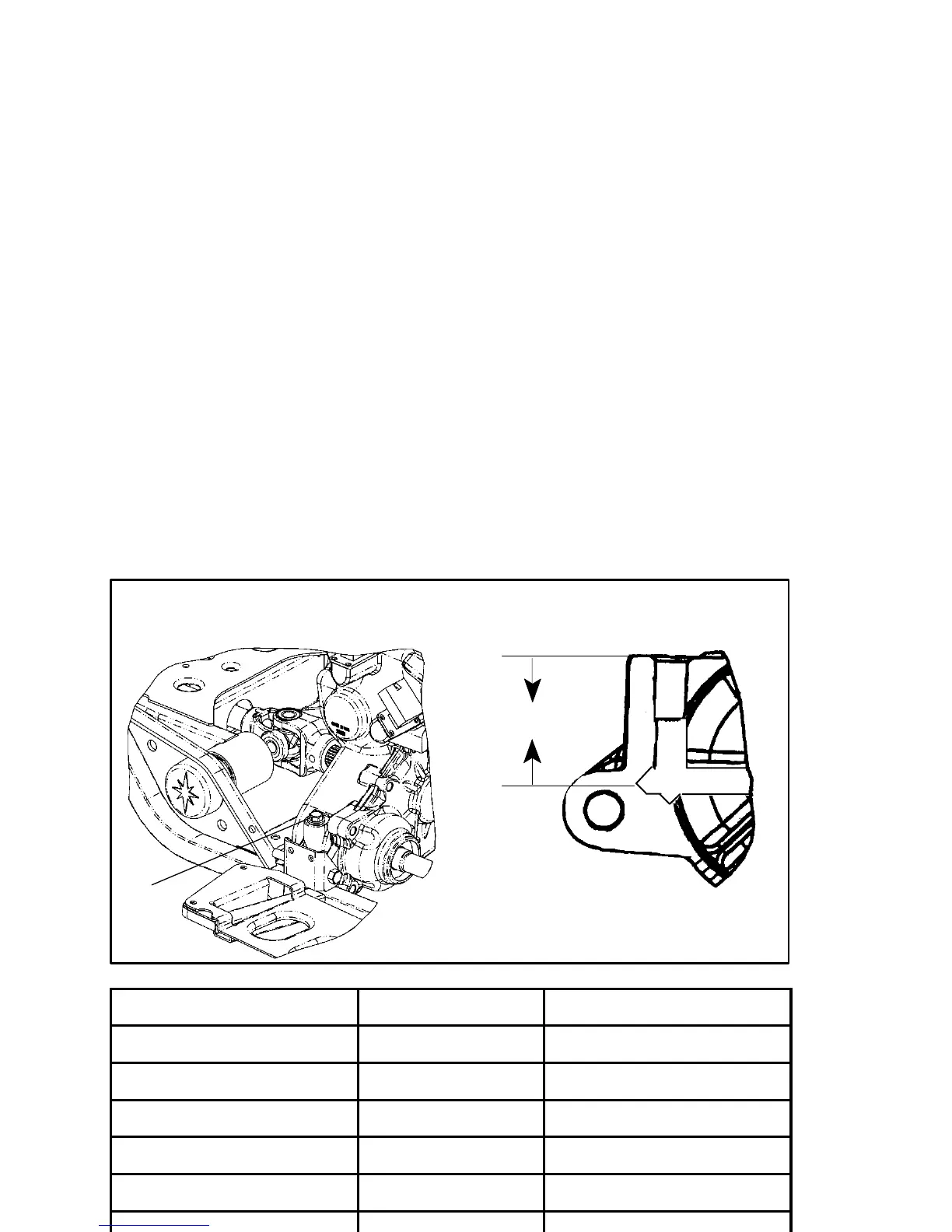

face, remove fill plug (1) and check the lubricant level. Use the il-
lustration and the chart below to determine the correct fluid level.
The correct transmission lubricant to use is Polaris Premium Syn-
thetic Gearca se Lubricant (PN 2871478).
Model
Oil Level “A” Oil Fill Ounces (ml)
Scrambler 500 4x4 15/8″ 27 (800)
Xplorer 400 15/8″ 27 (800)
Xplorer 4x4 15/8″ 27 (800)
Magnum 500 15/8″ 13.5 (400)
Magnum 325 4x4 15/8″ 13.5 (400)
Magnum 325 2x4 3/4″ 27 (800)
Magnum 4x4 Shown
1
A
To Next Page
