MAINTENANCE
Rear Gearcase Lubrication

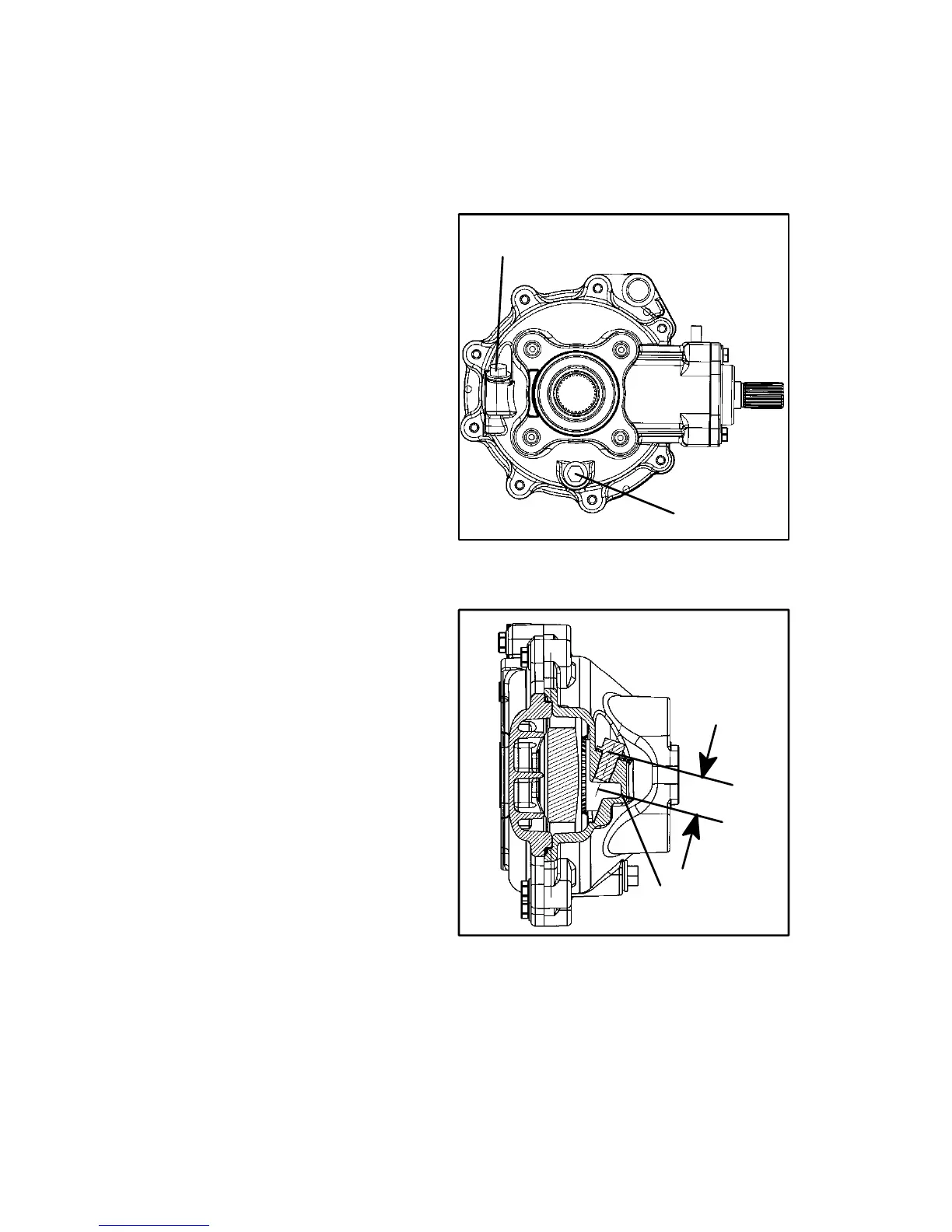

With the ATV on a level surface,
remove fill plug and visually in-
spect the lubricant level through
the fillhole (1). Lubricantshould
be kept even with the center of
the d rillpoint (2) approximately 1
5/8″ belowthe top of the fillhole.
NOTE: Do not add lubricant to
the bottom of the fill plug
threads. The correct gearcase
lubricant to use is GL5 80-90
Weight Gear Lube.
Oil Changing Procedure
1. Remove drain plug (3). Catch
and discard used oil properly.
2. Clean and reinstall the drain
plug with a new sealing
washer and tighten securely
(14 ft. lbs./1.93 kgm).
3. Remove fill plug and add 10
ounces (300 ml of GL5 80-90
Weight gear Lube and in-
spect oil level. Oil level
should be kept even with the
center of the drill point
(approximately 1 5/8″ below
the top of the fill hole).
4. Reinstall the fill plug. Tighten
securely (14 ft. lbs/1.93 kgm).
5. Check for leaks
1
3
2
15/8″
