MAINTENANCE AND LUBRICATION
Lights
Headlight Beam Adjustment
The headlight beam can be adjusted slightly upward or downward.
Use the following procedure to make the adjustment.

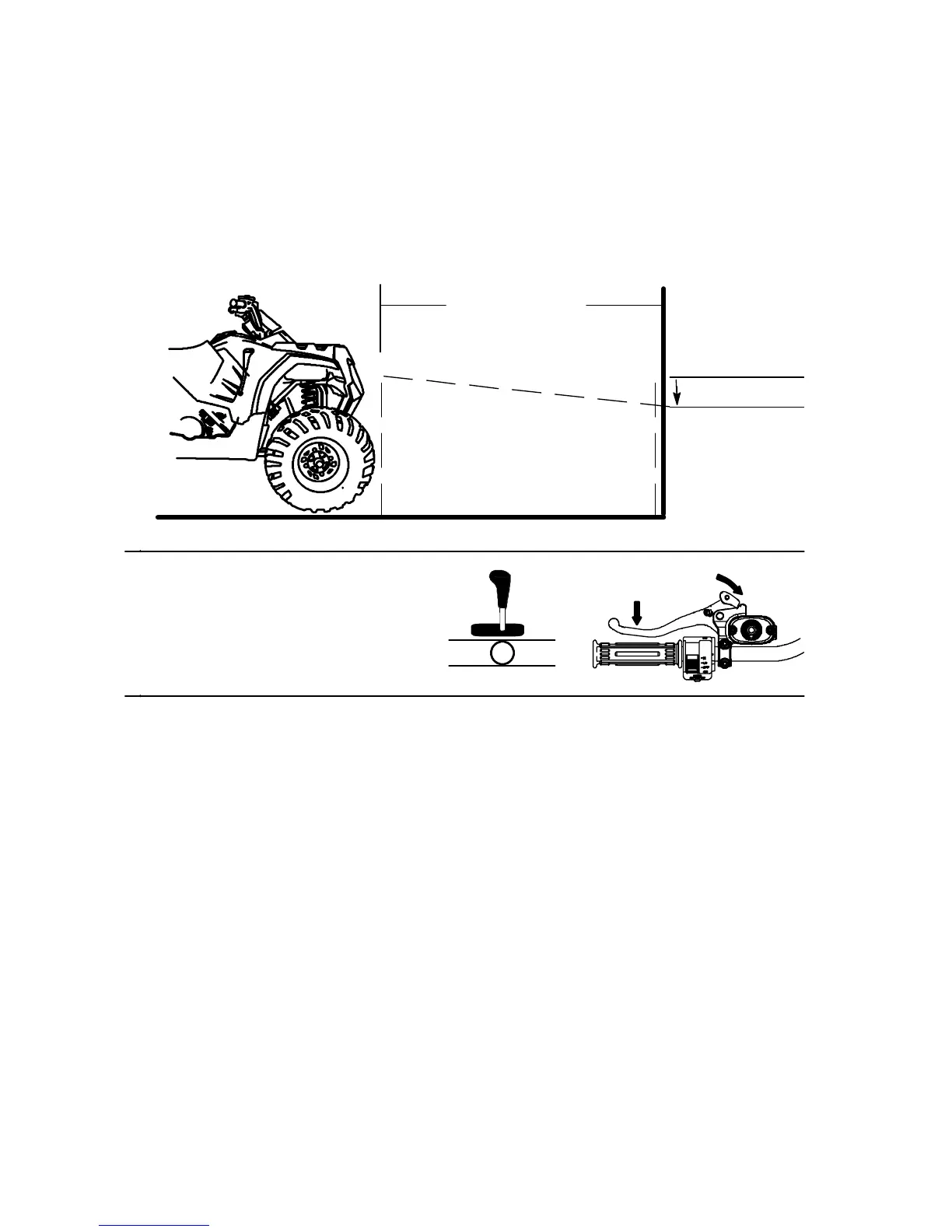

1. Position the vehicl e on a level surface. The headlight should be
approximately 25 ft. (7.6 m) from a wall.
2. Place the transmission in
neutral.
3. Lock the parking brake.
4. Measure the distance from the floor to the center of the headlight
and make a mark on the wall at the same height.
NOTE: Include rider weight on the seat when measuring.
5. Start t he engine and turn the headlight switch to high beam.
6. Observe the headlight aim on t he wall. The most intense part of
the headlight beam should be two inches (5.1 cm) below the mark
on the wall.
7. Loosen the phillips screw at the rear of the headlamp.
8. Adjust the beam.
9. Tighten the screw.
25 ft. (7.6 m)
x
2 (5.1 cm)
x
HNR
