MAINTENANCE AND LUBRICATION
Adjustments
Side Panel Removal - Gen IV
NOTE: Side panel removal may be difficult until the locking tabs and
receivers have been snapped and unsnapped a few times.
1. Remove the seat.

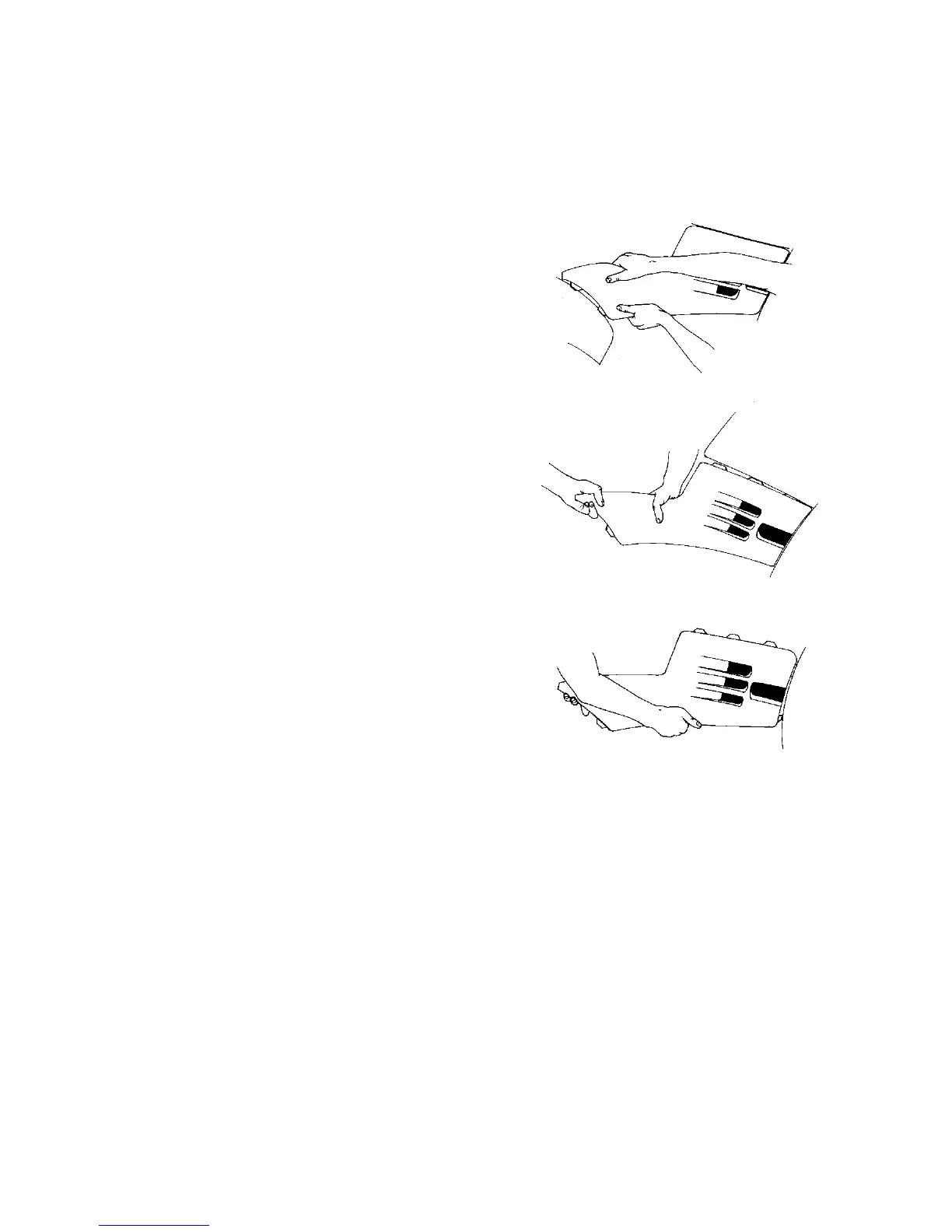

2. Grasp the rear of the side
panel near the rear cab. With
a quick and firm motion, pull
the panel forward and outward
to disengage the two rear tabs.
3. Place your hand on top of the
side panel behind the fuel
tank. With a quick and firm
motion, push down on the side
panel to disengage the top rear
twotabs. Thenpulluponthe
side panel to disengage the
front upper and lower tabs.
4. To reinstall the side panel,
align the panel tabs with the
slots on the front cab. Push
the panel upward and forward
until the t abs lock. Bend the
rear of the side panel and
insert the two tabs into the rear
cab.
Step 2
Step 3
Step 4
